WL950

WL950(A05-01) washer tank Diagram

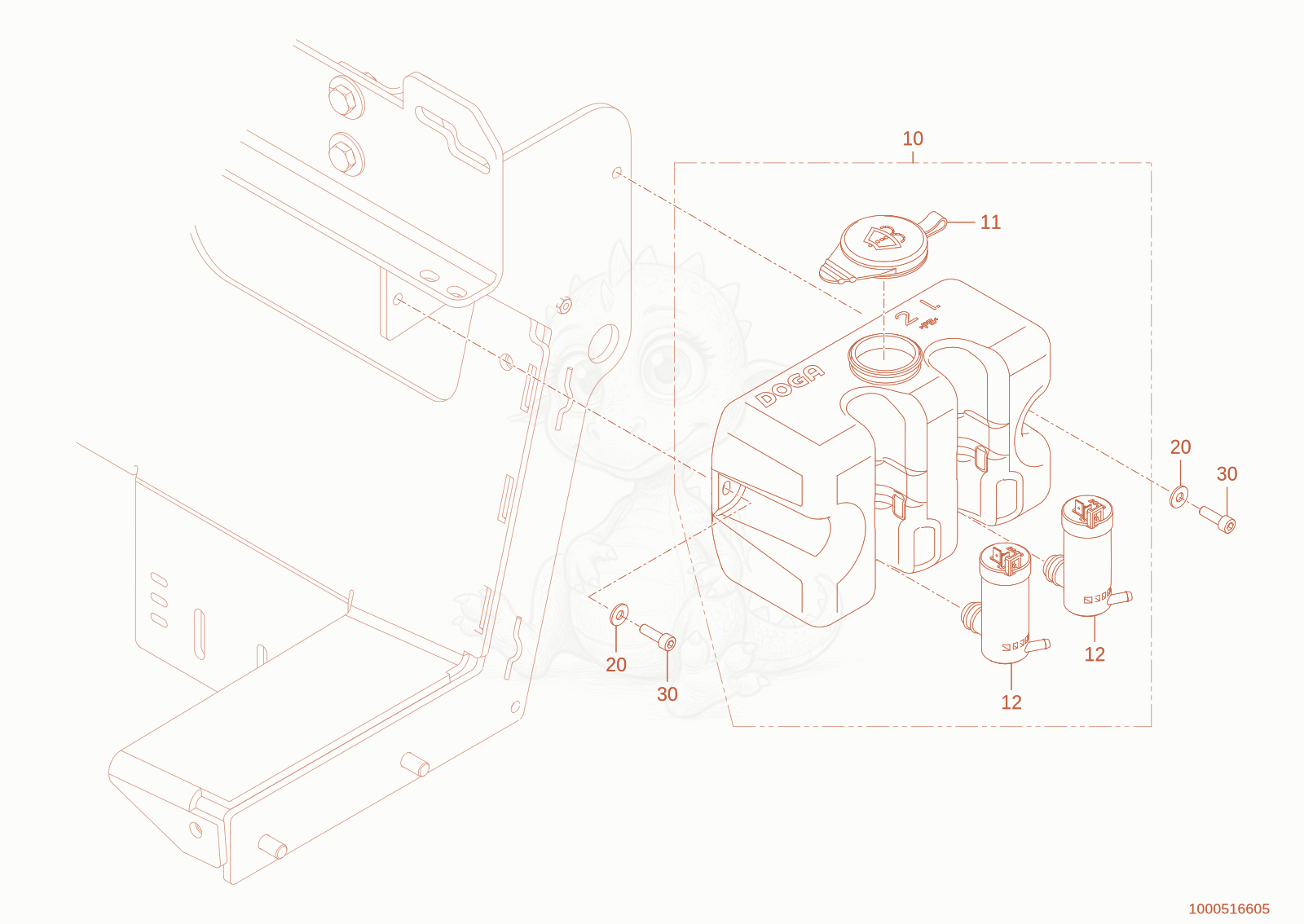

Exploded parts diagram of the washer tank of a Wacker Neuson WL950(A05-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000213417Price
    WINDSCREEN WASHER RESE - 1000213417×1
  • 111000125145Price
    locking cap - 1000125145×1
  • 121000125144Price
    pump washtank - 1000125144×2
  • 201000222875Price
    Washer - 1000222875×2
  • 301000085456Price
    allen screw M6x20-8.8 A2C-DIN912 - 1000085456×2
  • 301000267172Price
    ovalhead screw - 1000267172×2
  • 401000015405Not stocked
    hexagon nut×2
