WL950

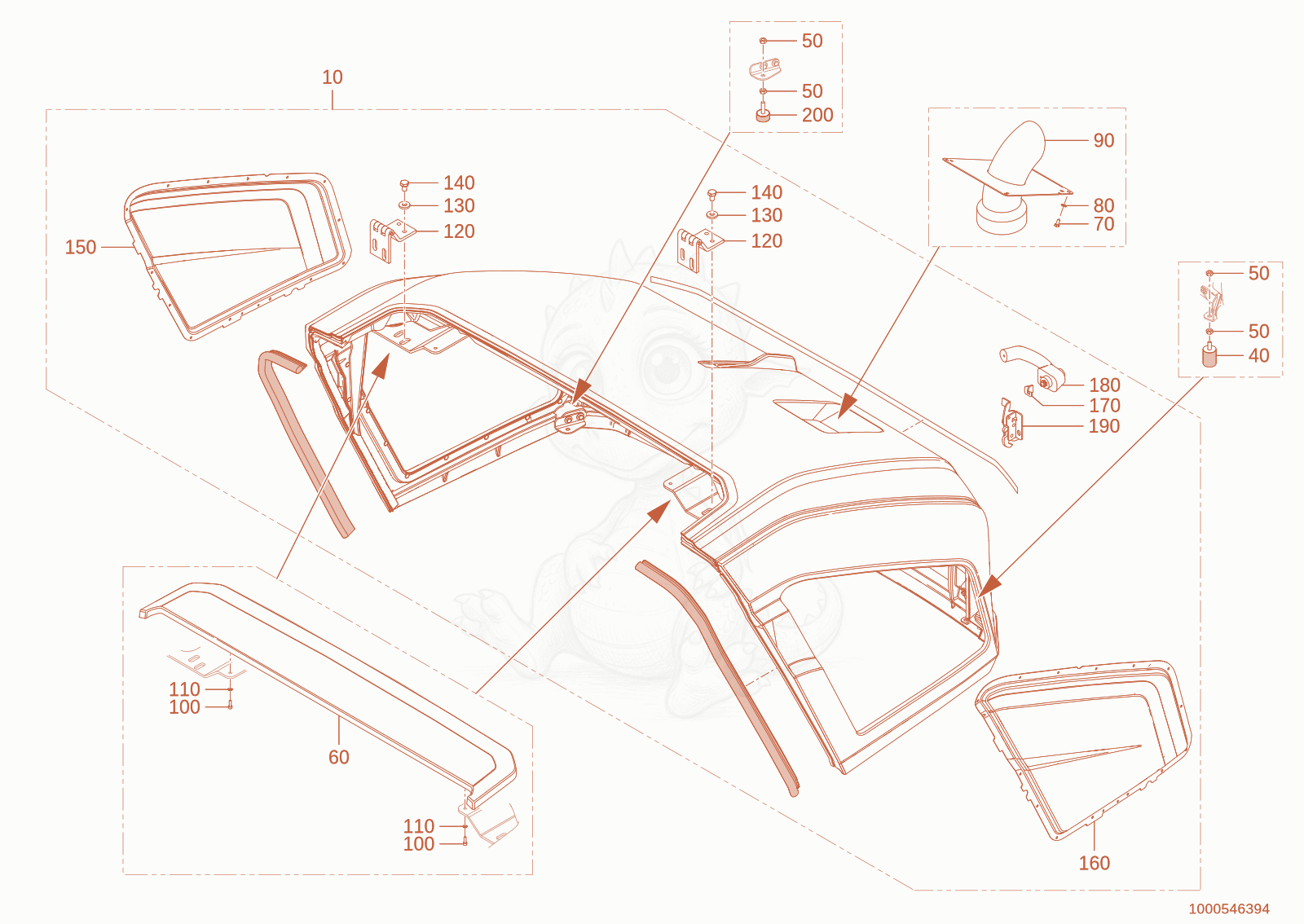

WL950(A05-01) engine hood Diagram
- 301000556974Not stockedengine hood×1
- rubber buffer - 1000321952×1
- 501000015406Not stockedhexagon nut×4
- 601000523554Not stockedMaintenance cover×1
- 701000020553Not stockedhex screw×4
- 801000015430Not stockedu-washer×4
- 901000516001Not stockedexhaust pipe×1
- allen screw M5x16-8.8 A2C DIN912 - 1000085451×2
- washer A 5,3 A2C DIN125 - 1000094962×2
- Hinge - 1000154691×2
- 1301000049278Not stockedwasher×4
- 1401000013009Not stockedhex screw×4
- 1501000509427Not stockedscreen×1
- 1601000509428Not stockedscreen×1
- Locking plate - 1000292252×1
- Handle - 1000204728×1
- LOCK - 1000163101×1
- 2001000350999Not stockedmetal-rubber buffer×1
- 2101000572653Not stockededge protection×1
