WL950

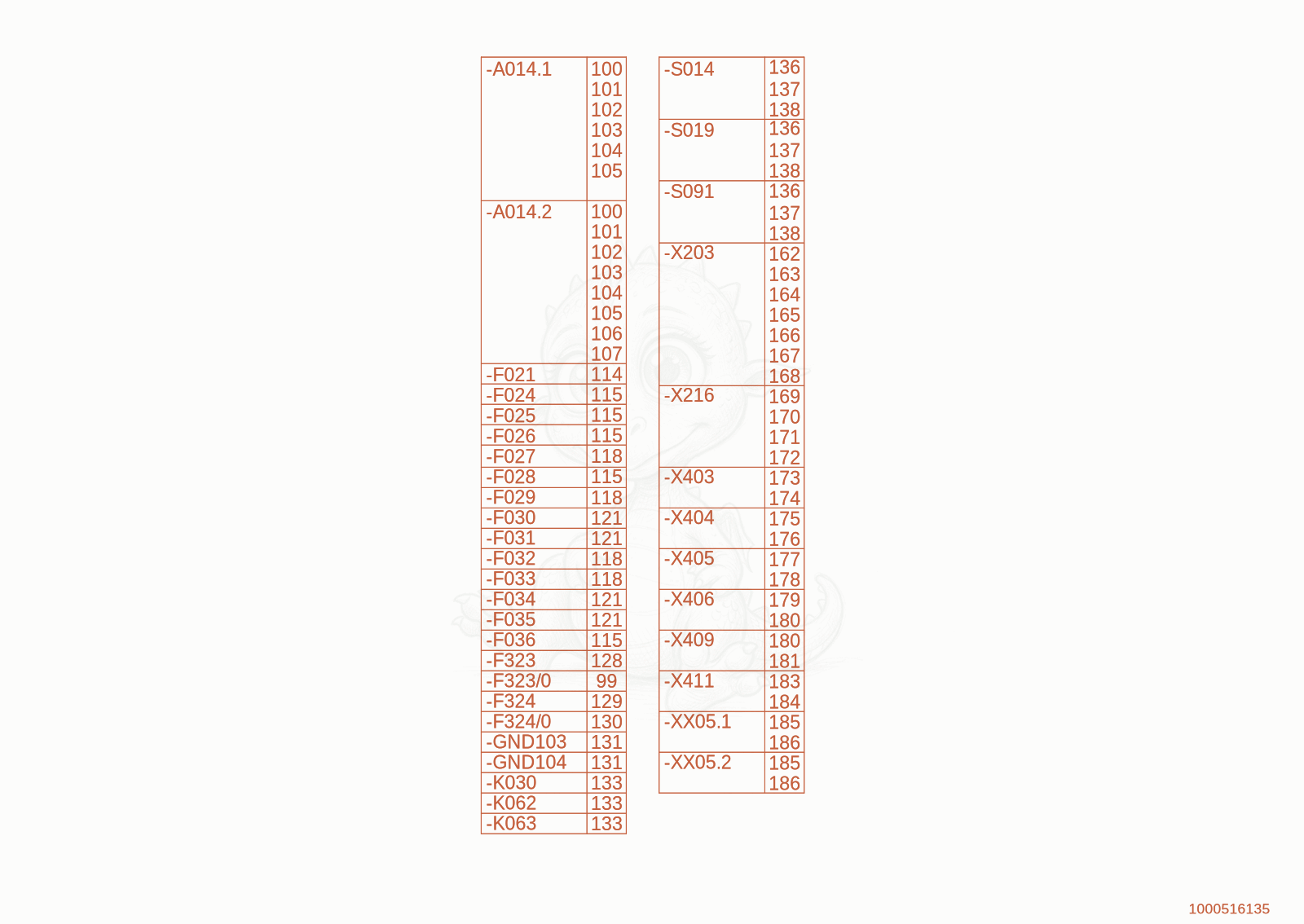

WL950(A05-01) components wiring harness Diagram
- PLUG CONNECTOR - 1000085003×1
- 1001000385308Not stockedhousing×1
- 1011000330506Not stockedplug×1
- 1021000306602Not stockedplug×1
- BUSHING CONTACT - 1000270099×1
- 1041000358218Not stockedbushing contact×1
- locking - 1000385691×1
- 1071000372411Not stockedplug sleeve×1
- 1091000330508Not stockedplug×1
- FUSE-Mini - 1000168904×1
- FUSE-Mini - 1000114140×1
- FUSE-Mini - 1000186028×1
- FUSE-Mini - 1000186027×1
- fuse - 1000015302×1
- FUSE - 1000015298×1
- PLUG CONNECTOR - 1000095322×1
- 1331000333390Not stockedrelay×1
- bushing housing - 1000103949×1
- Timer Contact - 1000103753×1
- 1381000432365Not stockedtimer contact×1
- lock plug - 1000104740×1
- Tube - 1000312051×1
- pin contact - 1000442912×1
- seal - 1000260162×1
- 1661000338911Not stockedseal×1
- 1671000474189Not stockedplug housing×1
- plug locking - 1000330903×1
- 1691000030446Not stockedplug×1
- 1701000359612Not stockedplug connection×1
- bushing housing - 1000104286×1
- wedge - 1000104287×1
- 1731000341447Not stockedpin housing×1
- 1741000341450Not stockedpin contact×1
- Pinhousing 1000105120×1
- Pin contact - 1000107778×1
- 1771000492910Not stockedbushing housing×1
- 1781000341449Not stockedbushing contact×1
- Bushing housing 4pole - 1000492911×1
- BUSHING CONTACT - 1000107779×1
- 1811000493230Not stockedbushing housing×1
- Pin housing - 1000236974×1
- PLUG - 1000104577×1
- 1851000019583Not stockedplug sleeve housing×1
- 1861000095371Not stockedplug sleeve×1
