TH735

TH735(415-06) lighting Diagram

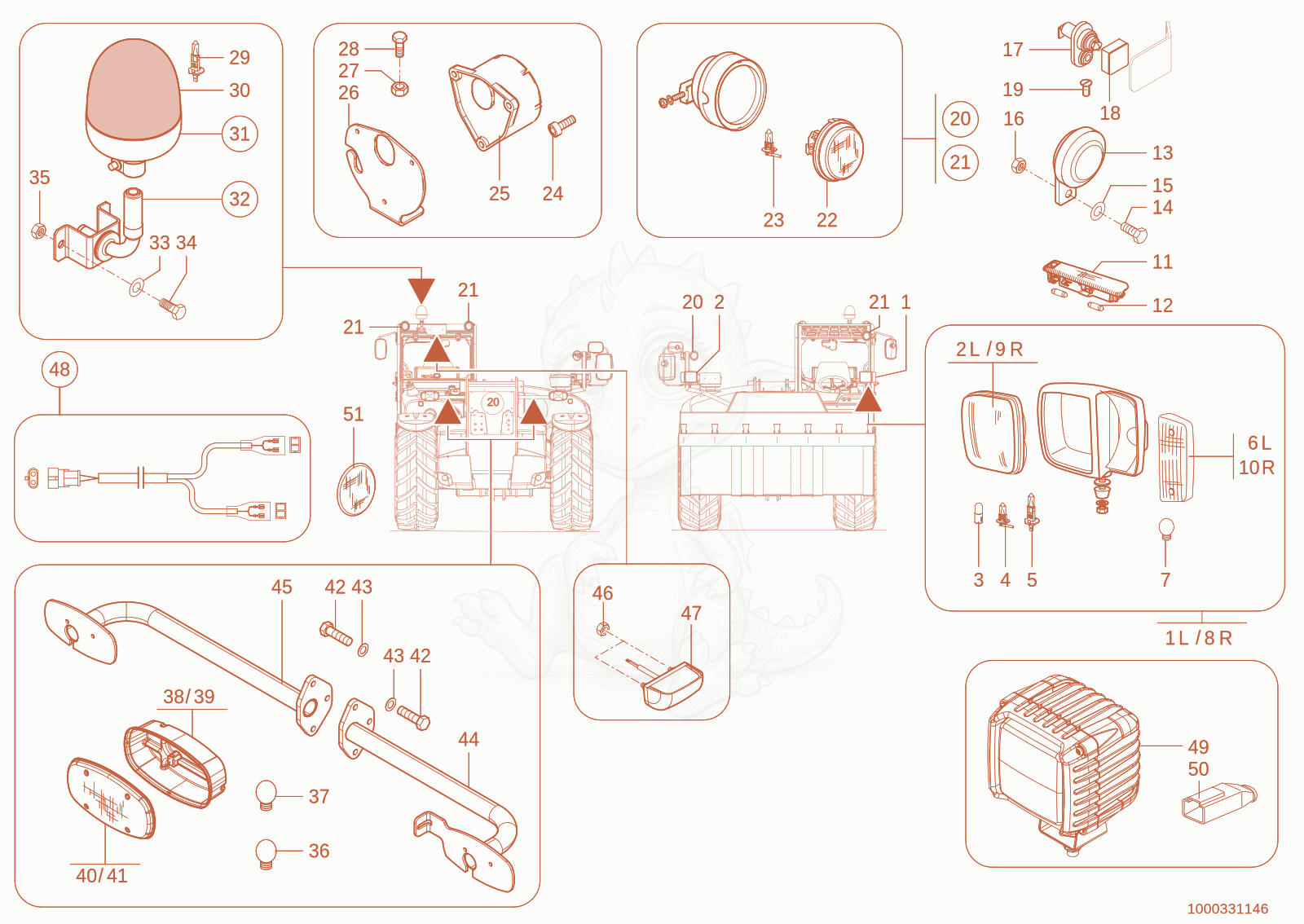

Exploded parts diagram of the lighting of a Wacker Neuson TH735(415-06), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000276032Price
    main headlight - 1000276032×1
  • 21000287437Not stocked
    light cover×1
  • 31000001519Price
    bulb - 1000001519×1
  • 41000109711Not stocked
    bulb×1
  • 51000109712Price
    bulb - 1000109712×1
  • 61000287438Not stocked
    light cover×1
  • 71000433535Not stocked
    bulb×1
  • 81000276034Not stocked
    main headlight×1
  • 91000287437Not stocked
    light cover×1
  • 101000287438Not stocked
    light cover×1
  • 111000051952Not stocked
    internal light×1
  • 121000050446Price
    BULB - 1000050446×2
  • 131000269368Price
    signal horn - 1000269368×1
  • 141000085389Price
    hex screw M8x12-8.8 A2C DIN933 - 1000085389×1
  • 151000015431Not stocked
    washer×1
  • 161000013022Not stocked
    hexagon nut×1
  • 171000313328Price
    Switch - 1000313328×1
  • 181000326771Not stocked
    buffer×1
  • 191000092263Price
    OVALHEAD SCREW - 1000092263×1
  • 201000051954Not stocked
    working light×1
  • 211000051955Not stocked
    working light×3
  • 221000106679Not stocked
    headlight insert×1
  • 231000109711Not stocked
    bulb×1
  • 241000048110Not stocked
    cheese head screw×3
  • 251000027045Not stocked
    signal output device×1
  • 261000034768Price
    Bracket - 1000034768×1
  • 271000013022Not stocked
    hexagon nut×2
  • 281000019136Not stocked
    hex screw×2
  • 291000109742Price
    bulb - 1000109742×1
  • 301000164463Price
    LENZ AMBER - ROTATING BEACON - 1000164463×1
  • 311000155042Price
    Rotating beacon - 1000155042×1
  • 321000148030Price
    SOCKETS - 1000148030×1
  • 331000092291Price
    WASHER - 1000092291×4
  • 341000085411Price
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
  • 351000015408Price
    nut M10-8 A2C-DIN985 - 1000015408×4
  • 361000050449Price
    bulb - 1000050449×6
  • 371000152858Not stocked
    bulb×2
  • 381000148542Price
    Rear light - 1000148542×1
  • 391000148543Price
    Rear light - 1000148543×1
  • 401000152856Not stocked
    light cover×1
  • 411000152857Not stocked
    light cover×1
  • 421000015345Price
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×8
  • 431000092291Price
    WASHER - 1000092291×10
  • 441000314835Not stocked
    bracket×1
  • 451000302929Not stocked
    Bracket×1
  • 461000085587Price
    HEXAGON NUT - 1000085587×4
  • 471000283787Price
    number plate light - 1000283787×2
  • 481000285702Not stocked
    wiring harness×1
  • 491000279045Not stocked
    working light×2
  • 501000296401Not stocked
    protecting cap×2
  • 511000051951Price
    Reflector - 1000051951×4
