TH735

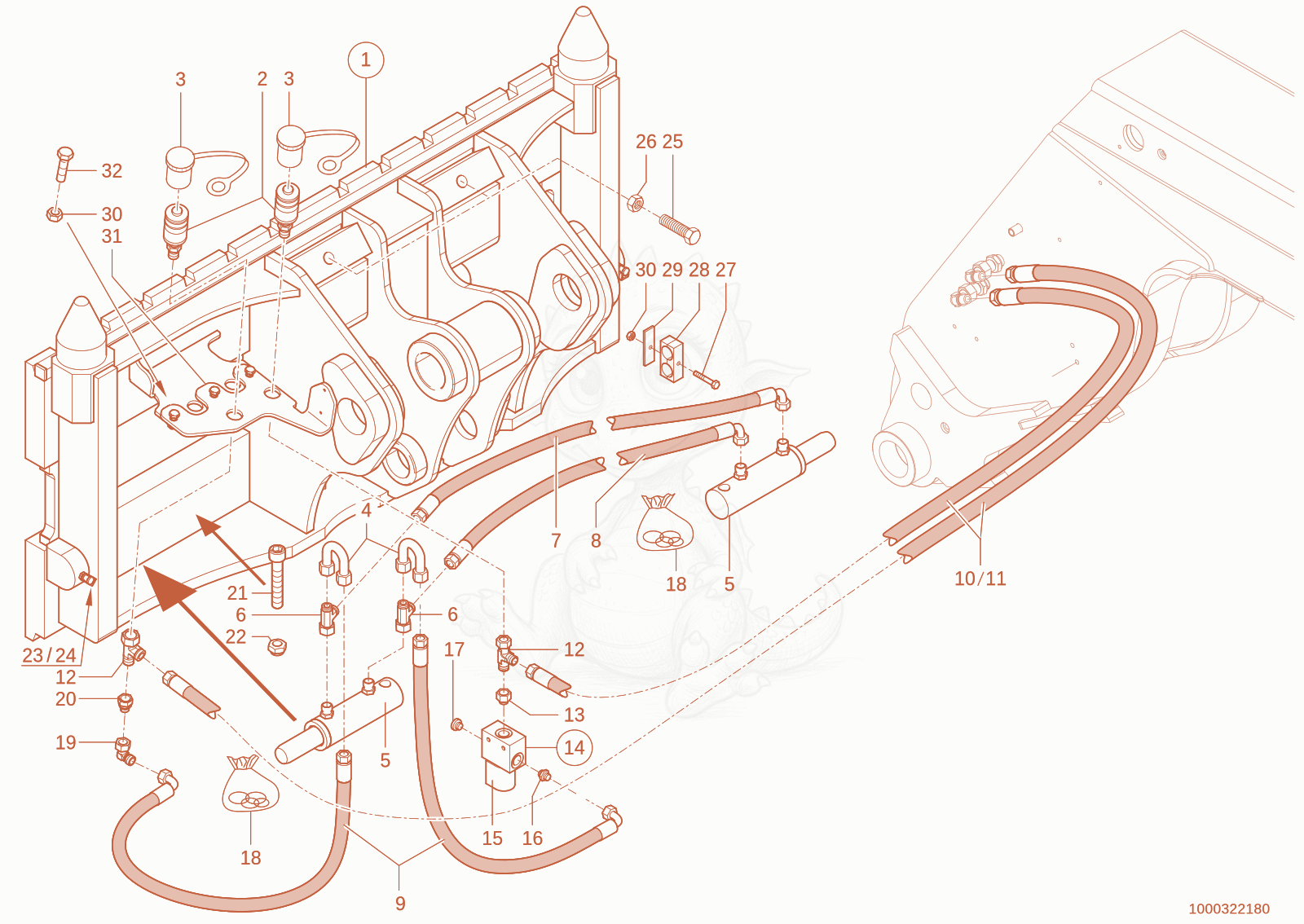

TH735(415-06) quickhitch plate Diagram
- 11000319825Not stockedquickhitch plate×1
- 21000028413Not stockedquick lock coupling×2
- Cover - 1000033344×2
- HYDRAULIC PIPE - 1000102283×2
- 51000383284Not stockedcylinder×2
- EL10LOMDA3C - 1000085089×2
- SLHYDR 2SC 8,0PN10 0 PN10 90 L960,0 - 1000127158×1
- SLHYDR 2SC 8,0PN10 0 PN10 90 L780,0 - 1000255374×1
- SLHYDR 2SC 8,0PD10 0 PN10 90 L300,0 - 1000268593×2
- 101000306499Not stockedHose×2
- 111000306499Not stockedHose×2
- 121000015539Not stockedscrew joint×3
- 131000015521Not stockedscrew joint×1
- VALVE-SOLENOID - 1000027858×1
- 151000027822Not stockedsolenoid valve×1
- GE10LM18X1,5EDOMDA3C - 1000085112×1
- 171000030660Not stockedlock plug×1
- SEAL KIT - 1000261316×2
- 191000015510Not stockedscrew joint×1
- 201000020688Not stockedscrew joint×1
- 211000048310Not stockedcheese head screw×2
- HEXAGON NUT - 1000146812×2
- grease nipple - 1000050469×2
- CAP - 1000033455×2
- hex screw - 1000141354×2
- 261000021948Not stockedhexagon nut×2
- 271000048892Not stockedstud×2
- CLAMP - 1000031999×2
- 291000031230Not stockedcover plate×2
- 301000013022Not stockedhexagon nut×5
- 311000308974Not stockedbracket×1
- 321000015343Not stockedhex screw×3
