TH735

TH735(415-06) Tilt cylinder circuit Diagram

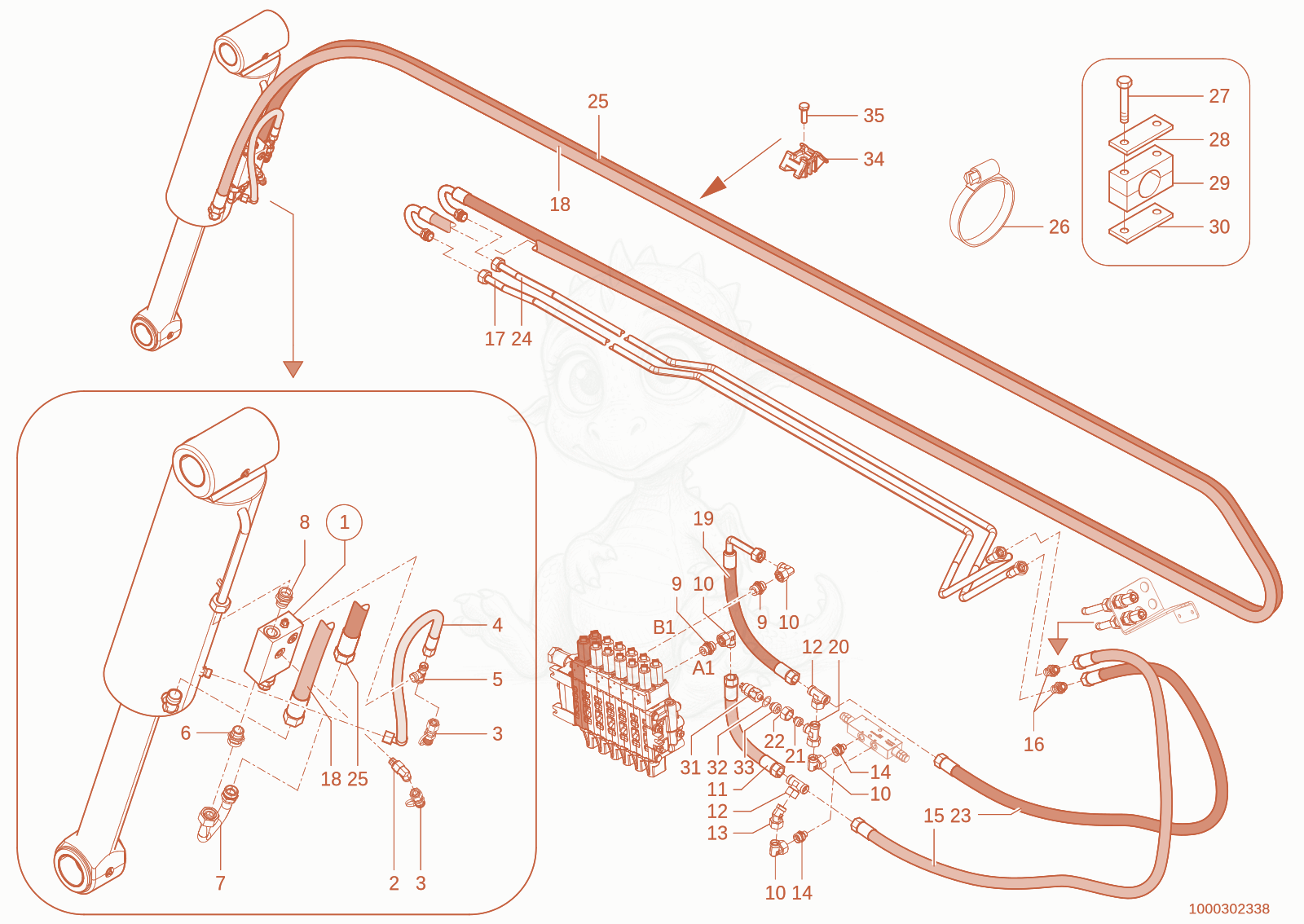

Exploded parts diagram of the Tilt cylinder circuit of a Wacker Neuson TH735(415-06), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000309849Price
    valve - 1000309849×1
  • 21000146696Price
    EWE10LR 1/4 - 1000146696×1
  • 31000152124Price
    PRÜFANSCHLUSS 10 L A3C - 1000152124×2
  • 41000103768Price
    SLHYDR 2SC 8,0PN10 0 PN10 90 L600,0 - 1000103768×1
  • 51000172357Price
    ETE10-L R 1/4" A3C - 1000172357×1
  • 61000015559Not stocked
    screw joint×1
  • 71000271469Price
    HYDRAULIC PIPE - 1000271469×1
  • 81000015494Not stocked
    screw joint×1
  • 91000015565Not stocked
    screw joint×2
  • 101000015513Not stocked
    screw joint×6
  • 111000289608Not stocked
    Hose×1
  • 121000085077Price
    ET18LOMDA3C - 1000085077×2
  • 131000149608Not stocked
    screw joint×1
  • 141000052133Not stocked
    screw joint×6
  • 151000289625Not stocked
    Hose×1
  • 161000015563Not stocked
    screw joint×2
  • 171000285616Not stocked
    hydraulic pipe×1
  • 181000289691Price
    Slhydr16Pn15Pd18180L7160 1000289691×1
  • 191000289627Not stocked
    Hose×1
  • 201000015517Not stocked
    screw joint×1
  • 211000028206Not stocked
    lock piece×1
  • 221000050506Not stocked
    union nut×1
  • 231000289626Not stocked
    Hose×1
  • 241000285471Not stocked
    hydraulic pipe×1
  • 251000289690Price
    Slhydr16Pn18Pd18180L7110 1000289690×1
  • 261000285201Not stocked
    clamp×1
  • 271000015340Not stocked
    hex screw×2
  • 281000031260Not stocked
    cover plate×1
  • 291000031502Price
    CLAMP - 1000031502×1
  • 301000286593Not stocked
    weld plate×1
  • 311000276818Not stocked
    pressure switch×1
  • 321000085676Price
    seal ring - 1000085676×1
  • 331000151022Price
    CONNECTION PIECE - 1000151022×1
  • 341000291567Price
    sockets - 1000291567×1
  • 351000018400Not stocked
    hex screw×1
