TH735

TH735(415-06) Lift ram cycle Diagram

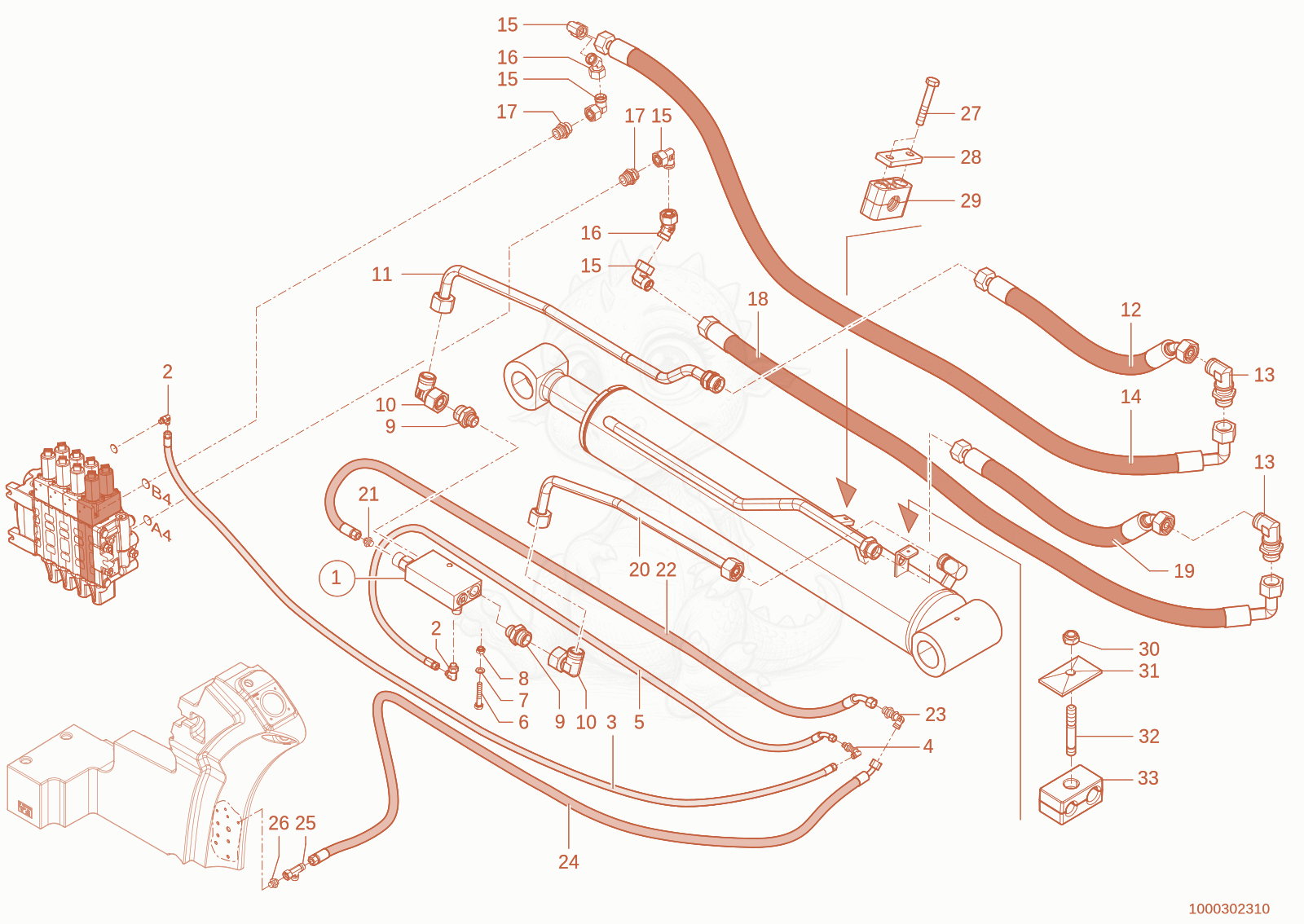

Exploded parts diagram of the Lift ram cycle of a Wacker Neuson TH735(415-06), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000291119Price
    Valve 1000291119×1
  • 21000028741Not stocked
    screw joint×2
  • 31000289624Not stocked
    Hose×1
  • 41000101008Price
    WSV 6 L - 1000101008×1
  • 51000289639Not stocked
    Hose×1
  • 61000047367Not stocked
    hex screw×1
  • 71000092291Price
    WASHER - 1000092291×2
  • 81000015408Price
    nut M10-8 A2C-DIN985 - 1000015408×1
  • 91000052158Not stocked
    screw joint×2
  • 101000085093Price
    EW20SOMDA3C - 1000085093×2
  • 111000285938Not stocked
    hydraulic pipe×1
  • 121000289663Not stocked
    Hose×1
  • 131000028331Not stocked
    screw joint×2
  • 141000289609Not stocked
    Hose×1
  • 151000015513Not stocked
    screw joint×4
  • 161000149608Not stocked
    screw joint×2
  • 171000015565Not stocked
    screw joint×2
  • 181000289609Not stocked
    Hose×1
  • 191000289663Not stocked
    Hose×1
  • 201000285936Not stocked
    hydraulic pipe×1
  • 211000015490Not stocked
    screw joint×1
  • 221000289638Not stocked
    Hose×1
  • 231000085064Price
    WSV10LOMDA3C - 1000085064×1
  • 241000290445Not stocked
    Hose×1
  • 251000085089Price
    EL10LOMDA3C - 1000085089×1
  • 261000085114Price
    GE10LMEDOMDA3C - 1000085114×1
  • 271000085414Price
    hex screw - 1000085414×2
  • 281000286386Not stocked
    cover plate×1
  • 291000286385Not stocked
    clamp×1
  • 301000013022Not stocked
    hexagon nut×1
  • 311000031230Not stocked
    cover plate×1
  • 321000048892Not stocked
    stud×1
  • 331000052646Not stocked
    clamp×1
