TH412e

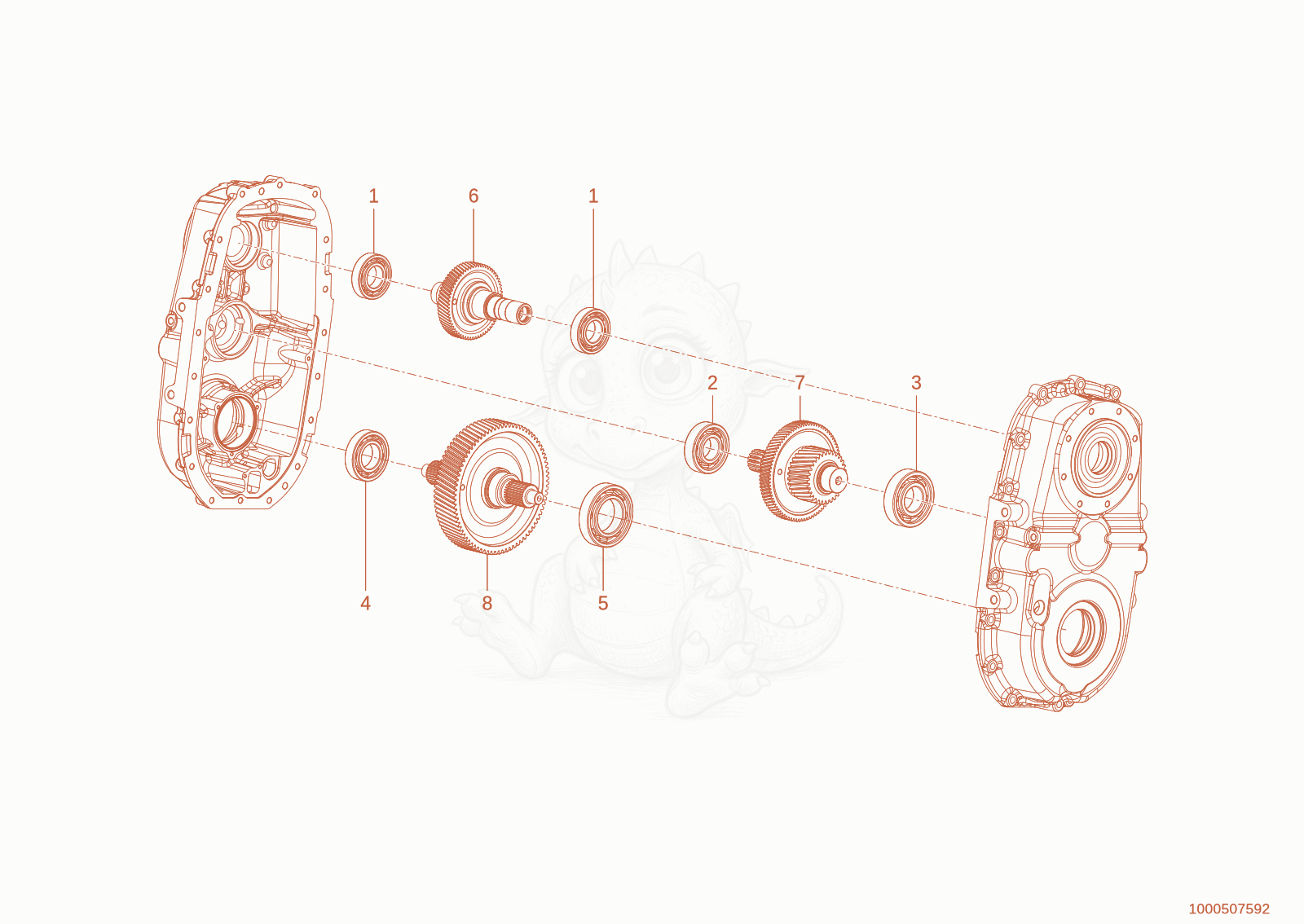

TH412E(T02-01) Gear drive wheel Diagram

Exploded parts diagram of the Gear drive wheel of a Wacker Neuson TH412E(T02-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000507583Not stocked
    ball bearing×2
  • 21000507584Not stocked
    ball bearing×1
  • 31000507585Not stocked
    ball bearing×1
  • 41000507586Not stocked
    ball bearing×1
  • 51000507587Not stocked
    ball bearing×1
  • 61000507588Not stocked
    drive gear×1
  • 71000507589Not stocked
    drive gear×1
  • 81000507590Not stocked
    drive gear×1
