TH412E(T02-01) Control circuit mechanical Diagram

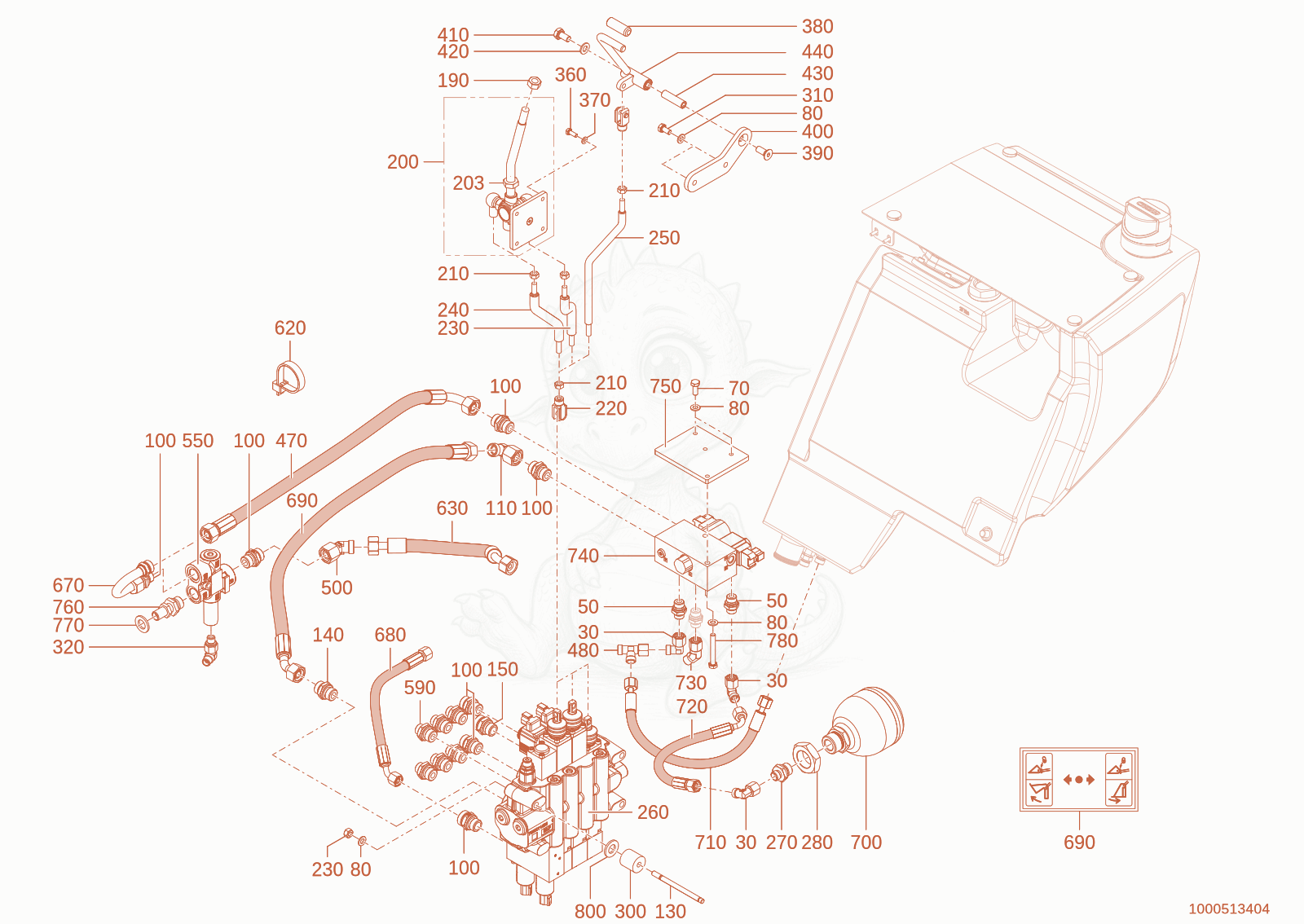

Exploded parts diagram of the Control circuit mechanical of a Wacker Neuson TH412E(T02-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 301000015510Not stocked
    screw joint×3
  • 501000015491Not stocked
    screw joint×3
  • 701000015343Not stocked
    hex screw×2
  • 801000015431Not stocked
    washer×9
  • 1001000015494Not stocked
    screw joint×7
  • 1101000015512Not stocked
    screw joint×1
  • 1301000458202Price
    screw - 1000458202×3
  • 1401000015490Not stocked
    screw joint×1
  • 1501000015559Not stocked
    screw joint×1
  • 1901000049000Not stocked
    hexagon nut×1
  • 2001000531179Not stocked
    CONTROL×1
  • 2031000222482Price
    Nut - 1000222482×1
  • 2101000015406Not stocked
    hexagon nut×6
  • 2201000083334Price
    fork head - 1000083334×4
  • 2301000515793Not stocked
    track rod×1
  • 2401000515792Not stocked
    track rod×1
  • 2501000515795Not stocked
    track rod×1
  • 2601000515940Not stocked
    control block×1
  • 2701000106888Price
    GE10LR1/2"EDOMDA3C - 1000106888×1
  • 2801000049039Not stocked
    hexagon nut×1
  • 3001000438519Not stocked
    distance piece×3
  • 3101000019136Not stocked
    hex screw×2
  • 3201000028677Not stocked
    screw joint×1
  • 3501000013022Not stocked
    hexagon nut×3
  • 3601000085382Price
    HEX SCREW - 1000085382×4
  • 3701000015430Not stocked
    u-washer×4
  • 3801000235688Price
    RUBBER SLEEVE - 1000235688×1
  • 3901000224077Price
    SCREW - 1000224077×1
  • 4001000453979Not stocked
    basis plate×1
  • 4101000085411Price
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×1
  • 4201000015432Price
    washer 10,5 A2C DIN125 - 1000015432×1
  • 4301000185858Price
    Pin - 1000185858×1
  • 4401000449680Not stocked
    lever×1
  • 4701000456105Not stocked
    Hose×1
  • 4801000085089Price
    EL10LOMDA3C - 1000085089×1
  • 5001000180503Price
    EV15LOMDA3C - 1000180503×1
  • 5501000453128Not stocked
    priority valve×1
  • 5901000015493Not stocked
    screw joint×6
  • 6201000193759Price
    cable strap - 1000193759×2
  • 6301000447856Not stocked
    Hose×1
  • 6701000108257Price
    CONNECTION PIECE - 1000108257×1
  • 6801000467573Price
    SLHYDR 2SC 8,0PN10 0 PN10 45 L390,0A - 1000467573×1
  • 6901000212894Price
    Sticker - 1000212894×1
  • 7001000492126Not stocked
    pressure accumulator×1
  • 7101000459569Not stocked
    Hose×1
  • 7201000481552Not stocked
    Hose×1
  • 7301000168871Price
    EW 10 L 45° - 1000168871×1
  • 7401000479299Not stocked
    pressure reduction valve×1
  • 7501000480872Not stocked
    bracket×1
  • 7601000238586Price
    SCHOTTVERSCHRAUBUNG 10L 1/2" - 1000238586×1
  • 7701000021001Price
    WASHER - 1000021001×1
  • 7801000085318Price
    6-Point screw M8x60-8.8 A2C-DIN931 - 1000085318×2
  • 7901000506844Not stocked
    Hose×1
  • 8001000439375Price
    washer - 1000439375×3
