TH412e

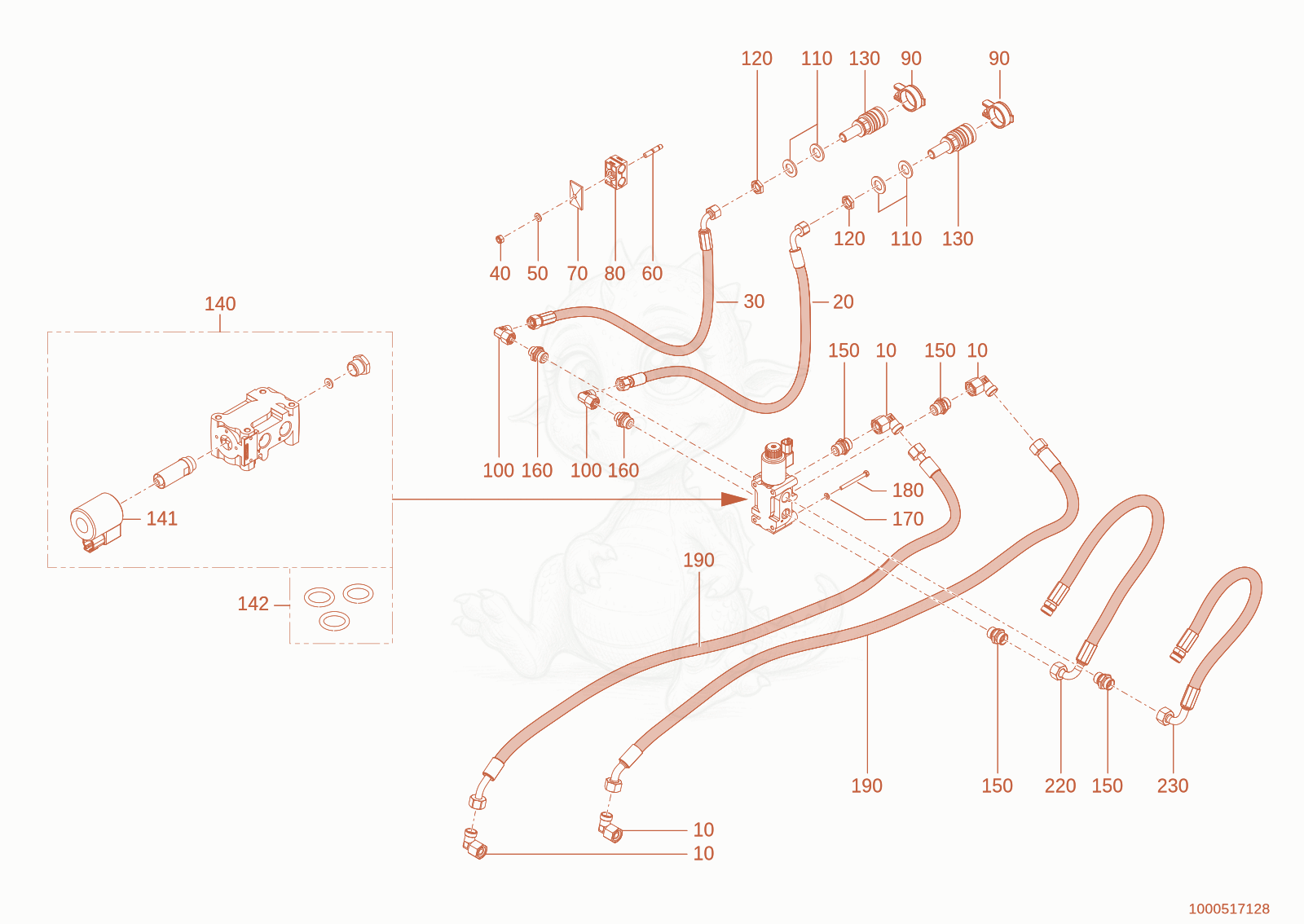

TH412E(T02-01) AUXILARY HYDRAULICS Diagram
- 101000015512Not stockedscrew joint×4
- 201000447723Not stockedHose×1
- 301000447664Not stockedHose×1
- 401000013022Not stockedhexagon nut×1
- 501000015431Not stockedwasher×1
- Stud M8x110-8.8 VZD - 1000233926×1
- 701000031230Not stockedcover plate×1
- 801000433702Not stockedclamp×1
- dust cap - 1000226161×2
- 1001000000573Not stockedscrew joint×2
- washer 19 - 1000082625×4
- VERSCHR. 12L -KONTERMUTTER - 1000225972×2
- PLUG COUPLING - 1000226220×2
- Drivevalve 1000283339×1
- magnet spool - 1000292602×1
- 1421000292601Not stockedseal kit×1
- 1501000015494Not stockedscrew joint×4
- 1601000015493Not stockedscrew joint×2
- 1701000015430Not stockedu-washer×2
- 1801000047253Not stockedhex screw×2
- 1901000457348Not stockedHose×2
- 2201000466247Not stockedHose×1
- 2301000466250Not stockedHose×1
