TH412e

TH412E(T02-01) wheel cover Diagram

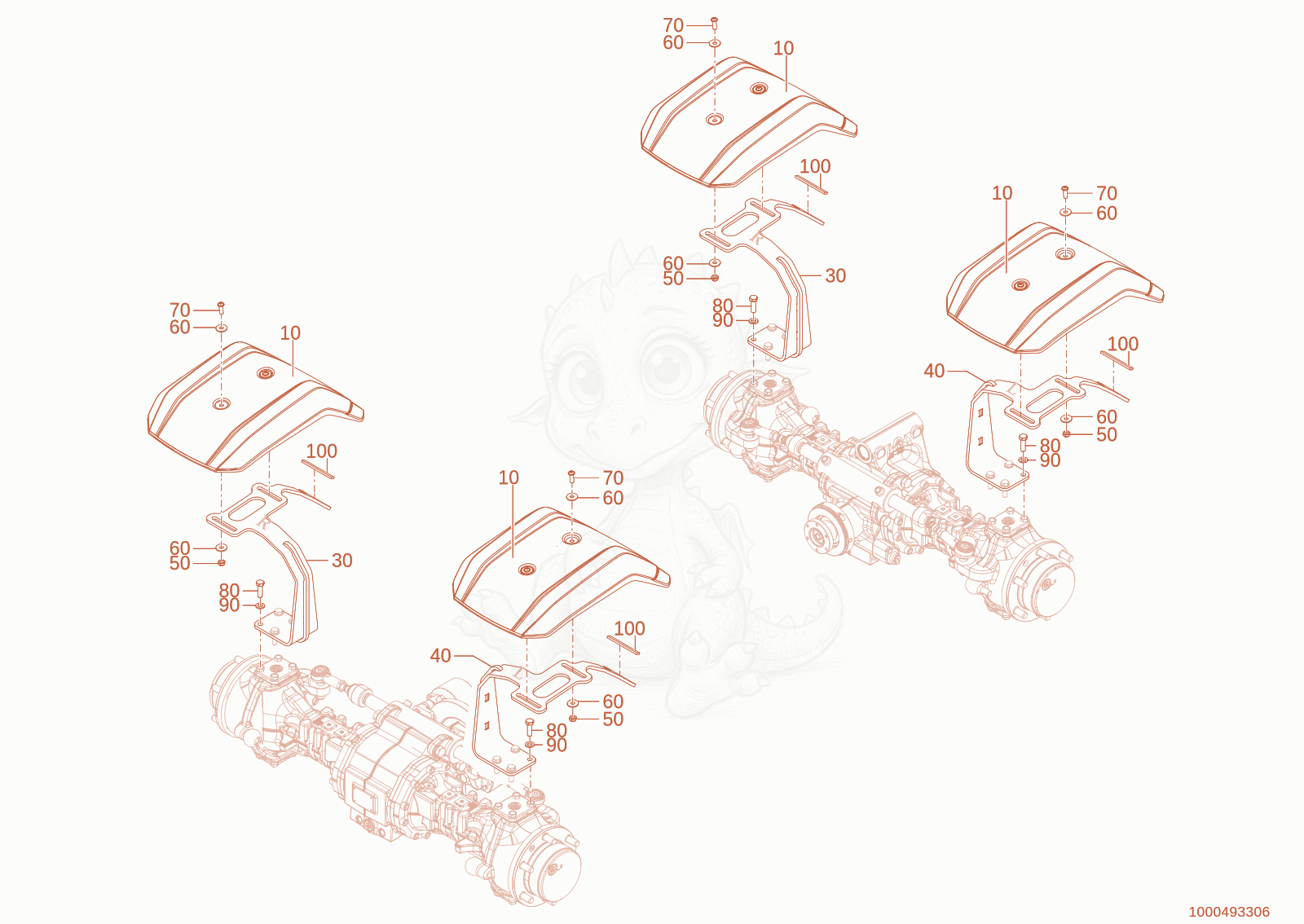

Exploded parts diagram of the wheel cover of a Wacker Neuson TH412E(T02-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000442489Not stocked
    wheel cover×4
  • 301000498975Not stocked
    Bracket×2
  • 401000498974Not stocked
    Bracket×2
  • 501000015408Price
    nut M10-8 A2C-DIN985 - 1000015408×8
  • 601000124882Price
    Body washer 10,5x30x2,5 - 1000124882×16
  • 701000427431Not stocked
    ovalhead screw×8
  • 801000250845Price
    HEX SCREW - 1000250845×16
  • 901000049219Not stocked
    washer×16
  • 1001000392708Not stocked
    foam strap×0.5
