ST45 Compact Track Loader

ST45(S04-04) ADDITIONAL PARTS OPTION AIR-CONDITIONING Diagram

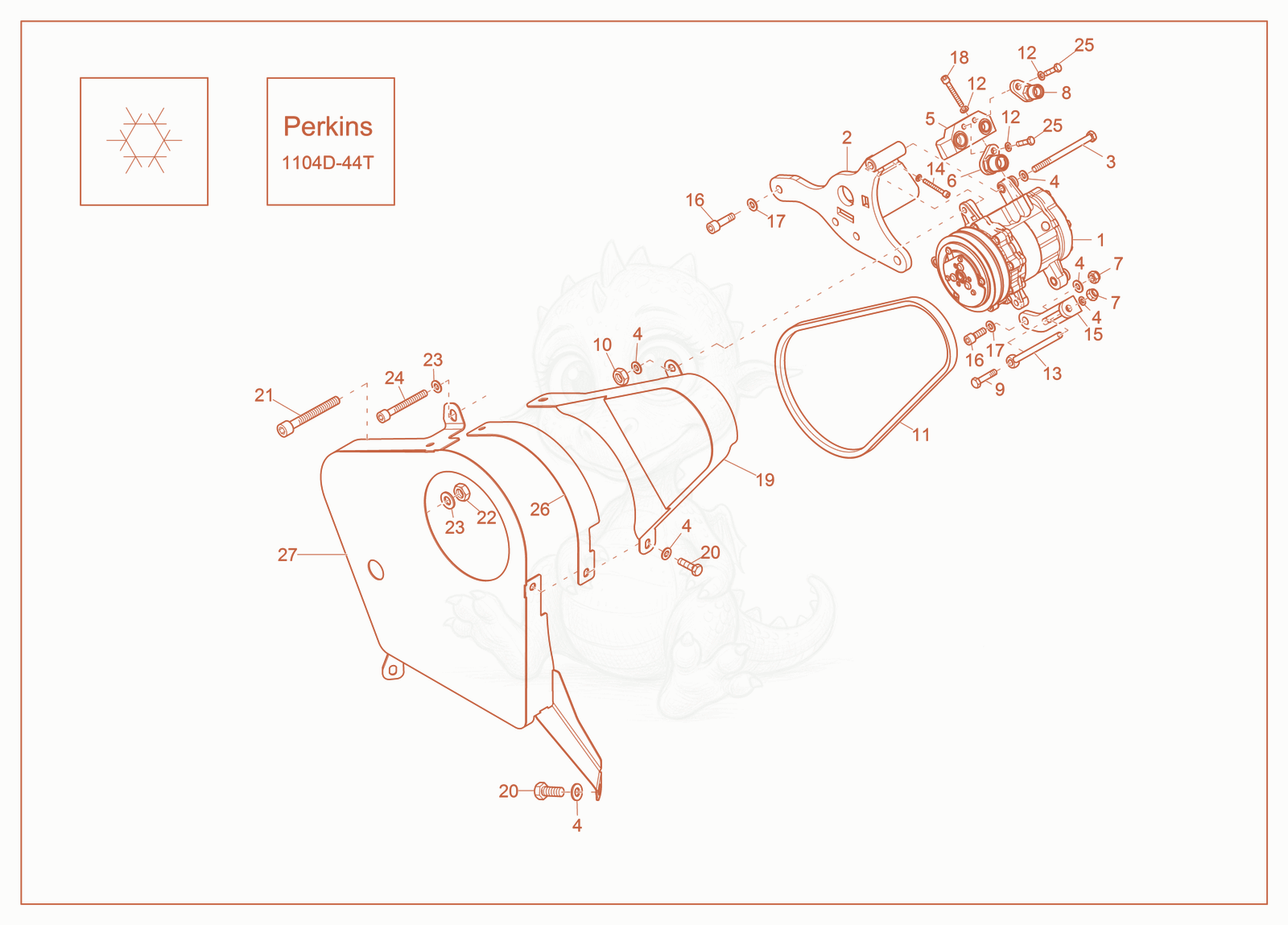

Exploded parts diagram of the ADDITIONAL PARTS OPTION AIR-CONDITIONING of a Wacker Neuson ST45(S04-04), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000289677Price
    Compressoraircondition 1000289677×1
  • 21000293926Price
    Bracket 1000293926×1
  • 31000085323Not stocked
    Hex screw×1
  • 41000092292Price
    washer A8,4-140HV A2C DIN125 - 1000092292×6
  • 51000336679Not stocked
    Intermediate block×1
  • 61000301423Not stocked
    adapter×1
  • 71000015416Price
    DIN985-M8-8-A2C - 1000015416×2
  • 81000301425Price
    adapter - 1000301425×1
  • 91000015380Not stocked
    hex screw×1
  • 101000013021Not stocked
    Hexagon nut×1
  • 111000296421Price
    V-BELT - 1000296421×1
  • 121000015437Not stocked
    Lock washer×4
  • 131000048708Not stocked
    eye bolt×1
  • 141000013014Not stocked
    Cheese head screw×1
  • 151000293928Not stocked
    clamp bar×1
  • 161000085468Price
    cheese head screw M10x25-8.8 A2C-DIN912 - 1000085468×4
  • 171000015438Not stocked
    Snor safety catch×4
  • 181000048172Not stocked
    cheese head screw×2
  • 191000299409Not stocked
    engine cover×1
  • 201000019136Not stocked
    Hex screw×2
  • 211000085506Price
    screw - 1000085506×1
  • 221000015407Not stocked
    Hex nut×1
  • 231000015432Price
    washer 10,5 A2C DIN125 - 1000015432×1
  • 241000015354Price
    allen screw M10x20-8.8 A2C-DIN912 - 1000015354×1
  • 251000013008Not stocked
    Hex screw×2
  • 261000313080Not stocked
    blind cover×1
  • 271000363793Not stocked
    BELT COVER×1
