ST45 Compact Track Loader

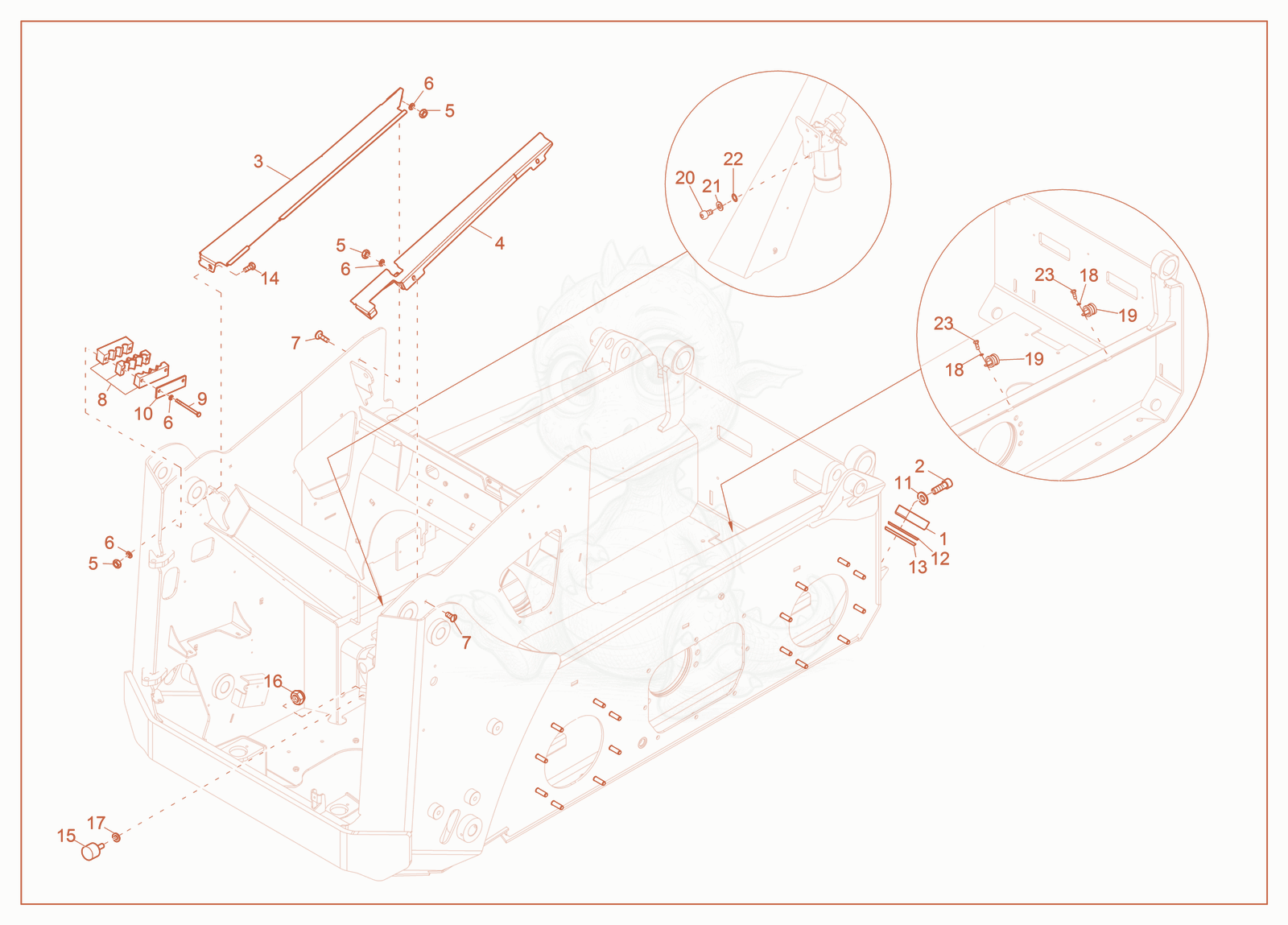

ST45(S04-04) chassis Diagram
- limit stop - 1000304881×2
- cheese head screw - 1000082242×4
- Cover 1000304930×1
- cover - 1000304929×1
- 51000013021Not stockedHexagon nut×5
- washer A8,4-140HV A2C DIN125 - 1000092292×8
- flat head screw - 1000085557×4
- 81000288388Not stockedClamp×1
- 91000085323Not stockedHex screw×2
- cover plate - 1000305235×1
- washer 10,5 A2C DIN125 - 1000015432×4
- shim - 1000314283×4
- 131000314284Not stockedShim×4
- 141000013008Not stockedHex screw×1
- metal-rubber buffer - 1000247997×2
- 161000015405Not stockedHex nut×2
- 171000015430Not stockedWasher×2
- 181000015430Not stockedWasher×2
- 191000062662Not stockedPipe clamp×2
- cheese head screw M10x16 - 1000082374×1
- washer 10,5 A2C DIN125 - 1000015432×1
- Lock washer DIN6797 A10,5 - 1000095354×1
- 231000013008Not stockedHex screw×2
- 241000165981Not stockedWheel Bolt×32
