ST45 Compact Track Loader

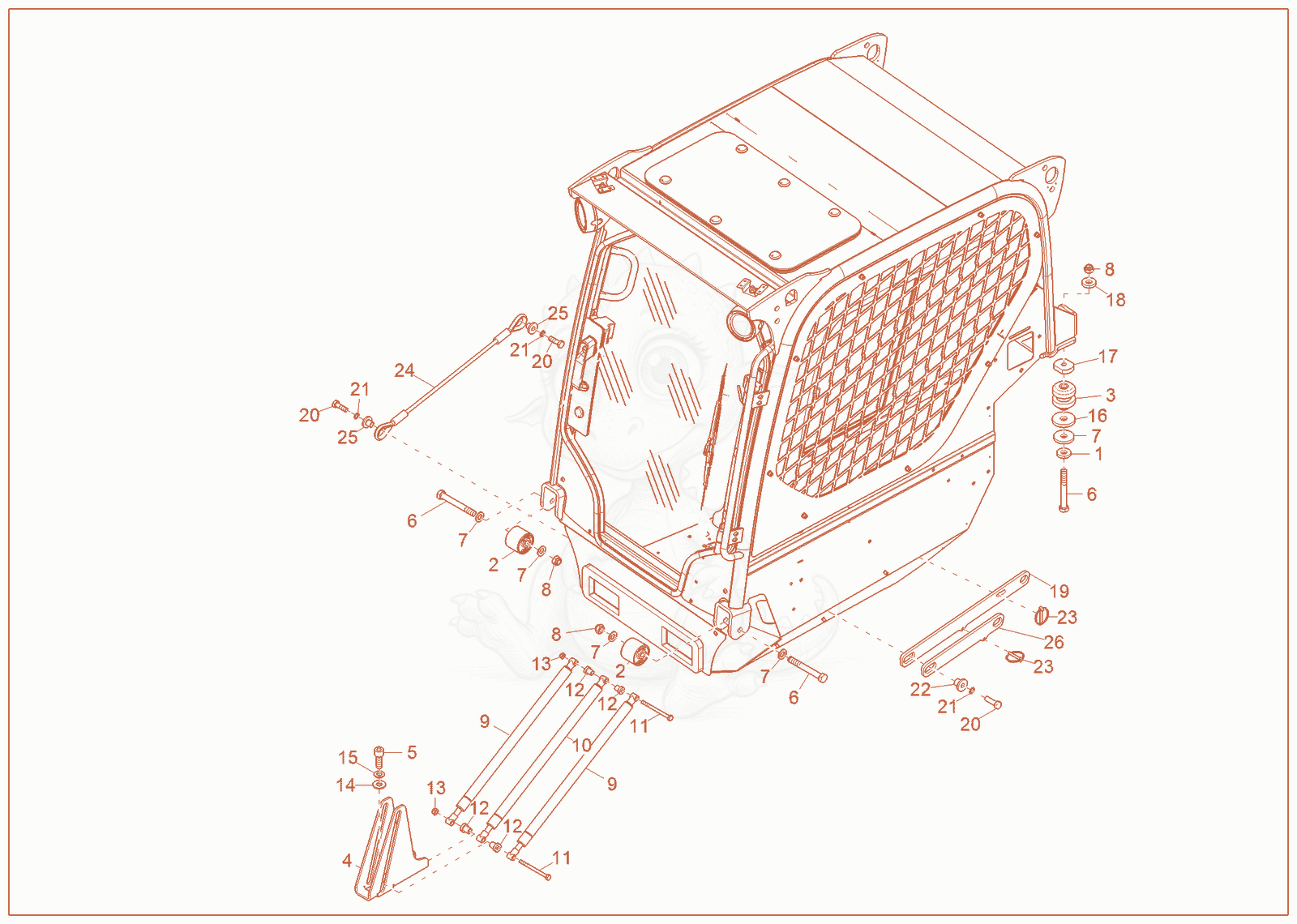

ST45(S04-04) CUSHION CABIN Diagram
- 11000015439Not stockedSnor safety catch×2
- ultra bushing - 1000165319×2
- rubber buffer - 1000239683×2
- angle sheet - 1000288191×2
- cheese head screw M10x25-8.8 A2C-DIN912 - 1000085468×2
- hex screw - 1000239665×4
- washer A 17 St A2C DIN125 - 1000085605×6
- HEXAGON NUT - 1000146812×4
- gas strut - 1000281894×2
- gas strut - 1000281894×1
- hex screw - 1000082354×2
- sleeve - 1000288192×4
- nut M10-8 A2C-DIN985 - 1000015408×2
- washer 10,5 A2C DIN125 - 1000015432×2
- 151000015438Not stockedSnor safety catch×2
- shim - 1000239660×2
- shim - 1000314168×2
- washer - 1000239682×2
- 191000354581Not stockedCab support×1
- 201000015372Not stockedHex screw×3
- lock washer - 1000082609×3
- sleeve - 1000336387×1
- 231000015457Not stockedCotter pin×2
- fasten rope - 1000246318×1
- sleeve - 1000292468×2
- 261000354582Not stockedCab support×1
