ST45 Compact Track Loader

ST45(S04-04) CABIN DOOR (OPTION) Diagram

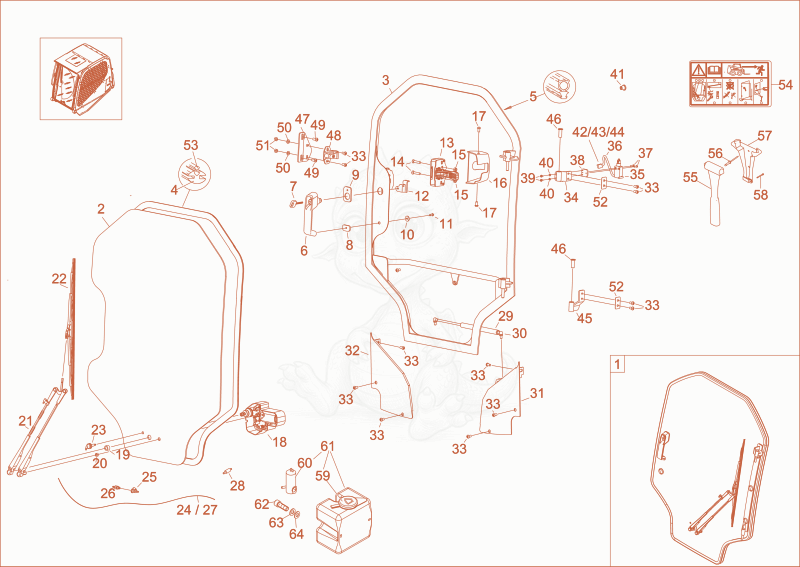

Exploded parts diagram of the CABIN DOOR (OPTION) of a Wacker Neuson ST45(S04-04), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000344924Not stocked
    DOOR LEFT COMPLETE×1
  • 21000340940Not stocked
    Front window×1
  • 31000347546Not stocked
    door frame×1
  • 41000208360Not stocked
    Sealing profile×1
  • 51000097240Price
    sealing profile - 1000097240×4
  • 61000012882Price
    handle - 1000012882×1
  • 71000004590Not stocked
    Key×2
  • 81000069532Not stocked
    synthetic trim×1
  • 91000069533Not stocked
    Synthetic trim×1
  • 101000233504Price
    washer - 1000233504×1
  • 111000313423Price
    SCREW - 1000313423×1
  • 121000347547Price
    pressure plate - 1000347547×1
  • 131000347548Not stocked
    lock×1
  • 141000347627Not stocked
    ovalhead screw×2
  • 151000347549Not stocked
    nut×2
  • 161000342273Price
    Cover - 1000342273×1
  • 171000165459Price
    screw M6x12 ISO7380-2 - 1000165459×2
  • 181000317434Not stocked
    Wiper motor×1
  • 191000208381Price
    rubber sleeve - 1000208381×1
  • 201000347550Not stocked
    silicon hose×1
  • 211000317436Not stocked
    Wiper arm×1
  • 221000317440Not stocked
    Wiper blade×1
  • 231000243865Price
    Hose duct - 1000243865×1
  • 241000116971Price
    water hose - 1000116971×1
  • 251000318004Price
    holder - 1000318004×1
  • 261000318005Price
    plug - 1000318005×1
  • 271000116971Price
    water hose - 1000116971×2
  • 281000068914Not stocked
    Non return valve×1
  • 291000317581Not stocked
    Gas strut×1
  • 301000321518Price
    balljoint - 1000321518×1
  • 311000317583Not stocked
    Plate×1
  • 321000317584Not stocked
    Cover plate×1
  • 331000176788Price
    screw - 1000176788×12
  • 341000317570Not stocked
    door hinge×1
  • 351000305832Price
    SWITCH - 1000305832×1
  • 361000305989Price
    cable - 1000305989×1
  • 371000085546Price
    ovalhead screw - 1000085546×2
  • 381000324233Not stocked
    Fastening plate×1
  • 391000324234Price
    SCREW - 1000324234×2
  • 401000094985Price
    washer - 1000094985×2
  • 411000124843Price
    cable sleeve - 1000124843×1
  • 421000317585Price
    Plug - 1000317585×1
  • 431000317586Price
    Tube - 1000317586×4
  • 441000317587Price
    SEAL - 1000317587×4
  • 451000317569Not stocked
    door hinge×1
  • 461000297225Price
    bearing bush - 1000297225×2
  • 471000347572Price
    bracket - 1000347572×1
  • 481000347573Price
    console - 1000347573×1
  • 491000347574Not stocked
    ovalhead screw×2
  • 501000015448Not stocked
    Washer×2
  • 511000015416Price
    DIN985-M8-8-A2C - 1000015416×2
  • 521000347575Price
    plate - 1000347575×6
  • 531000316318Not stocked
    Rubber profile×3.4
  • 541000314428Not stocked
    Sticker 'security'×1
  • 551000085714Price
    emergency hammer - 1000085714×1
  • 561000082698Price
    blind rivet A3x12 - 1000082698×2
  • 571000085715Price
    bracket emergency hammer - 1000085715×1
  • 581000151228Price
    cotter pin - 1000151228×1
  • 591000125145Price
    locking cap - 1000125145×1
  • 601000125144Price
    pump washtank - 1000125144×1
  • 611000110420Price
    wash tank Incl. pump - 1000110420×1
  • 621000085451Price
    allen screw M5x16-8.8 A2C DIN912 - 1000085451×2
  • 631000082608Not stocked
    Snor safety catch×2
  • 641000095342Price
    washer X-1000092302 - 1000095342×2
