RD880V-ROLLER, DOUBLE DRUM

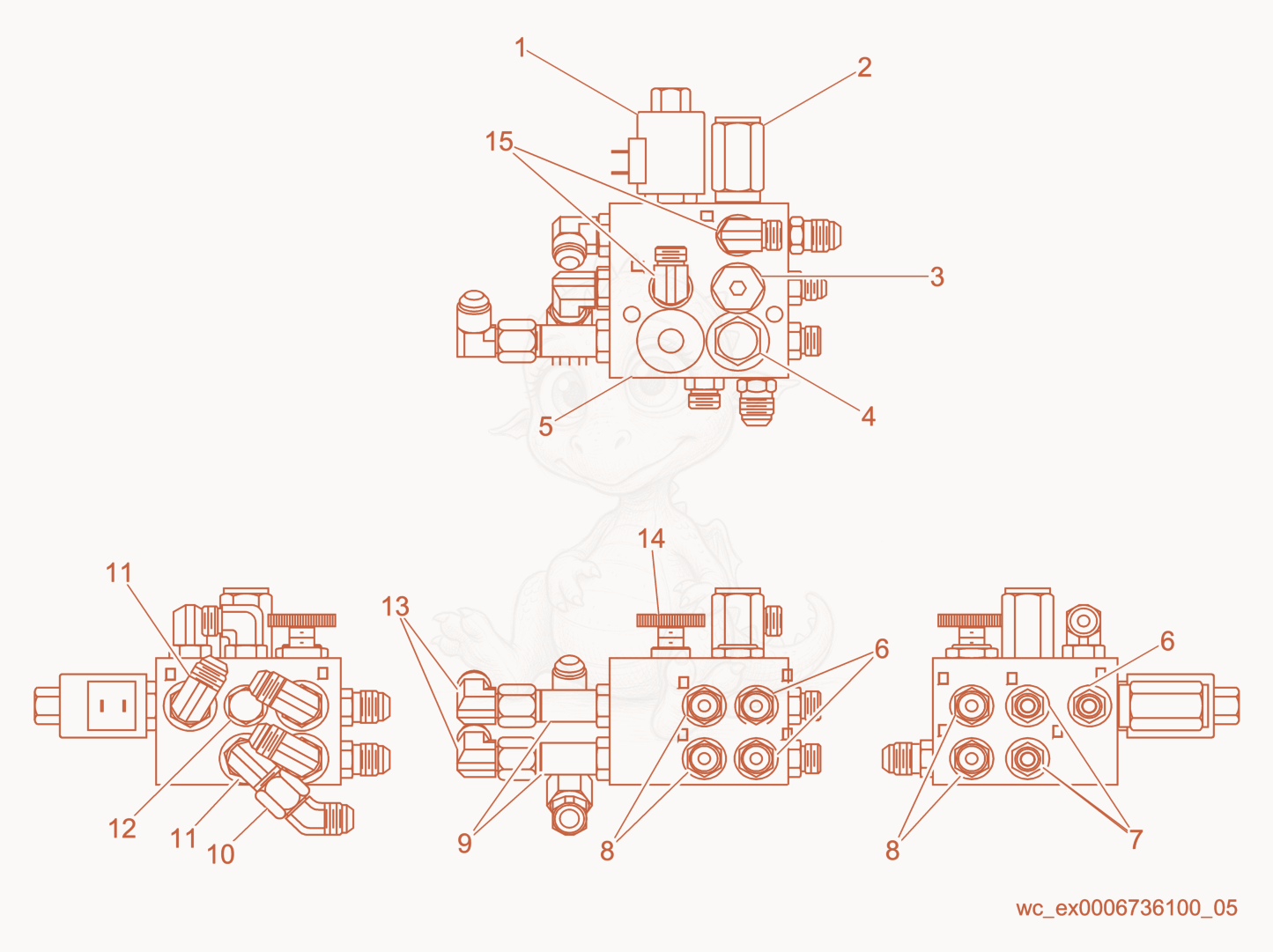

RD880V Manifold Diagram
- VALVE-HYDRAULIC SOLENOID - 5000078651×1
- VALVE-DIFF.AREA RELIEF,2000PSI - 5000078959×1
- VALVE-STEERING,PRESSURE RELIEF - 5000088898×1
- VALVE-BLANK CARTRIDGE - 5000080556×1
- 55000078812Not stockedBlock×1
- O-RING .468 X.078 DURO90 3-906 - 5000080731Unknown×1
- 65000089112Not stockedFitting×3
- 75000073075Not stockedFitting×2
- O-RING .468 X.078 DURO90 3-906 - 5000080731×1
- FITTING-MALE ADAPTER,STRAIGHT - 5000078816×4
- O-RING .468 X.078 DURO90 3-906 - 5000080731×1
- O-RING .644 X.087 DURO90 3-908 - 5000080732Unknown×1
- 95000054822Not stockedFitting×2
- O-RING 12 X 2-70 Sh - 5000014398Unknown×1
- 105000078815Not stockedHydraulic elbow fitting×1
- FITTING-ELBOW 90,STR.THRD,HYD - 5000052656×2
- O-RING .644 X.087 DURO90 3-908 - 5000080732×1
- PLUG 9/16-18UNF - 5000078269×1
- FITTING-ELBOW 90,SWIVEL NUT - 5000052606×2
- VALVE-NEEDLE - 5000080557×1
- FITTING-ELBOW 90,HYDRAULIC - 5000078962×2
- O-RING .468 X.078 DURO90 3-906 - 5000080731×1
- O-RING .36 X .07 #6 ORFS 2-012 - 5000080736×1
