RD880V-ROLLER, DOUBLE DRUM

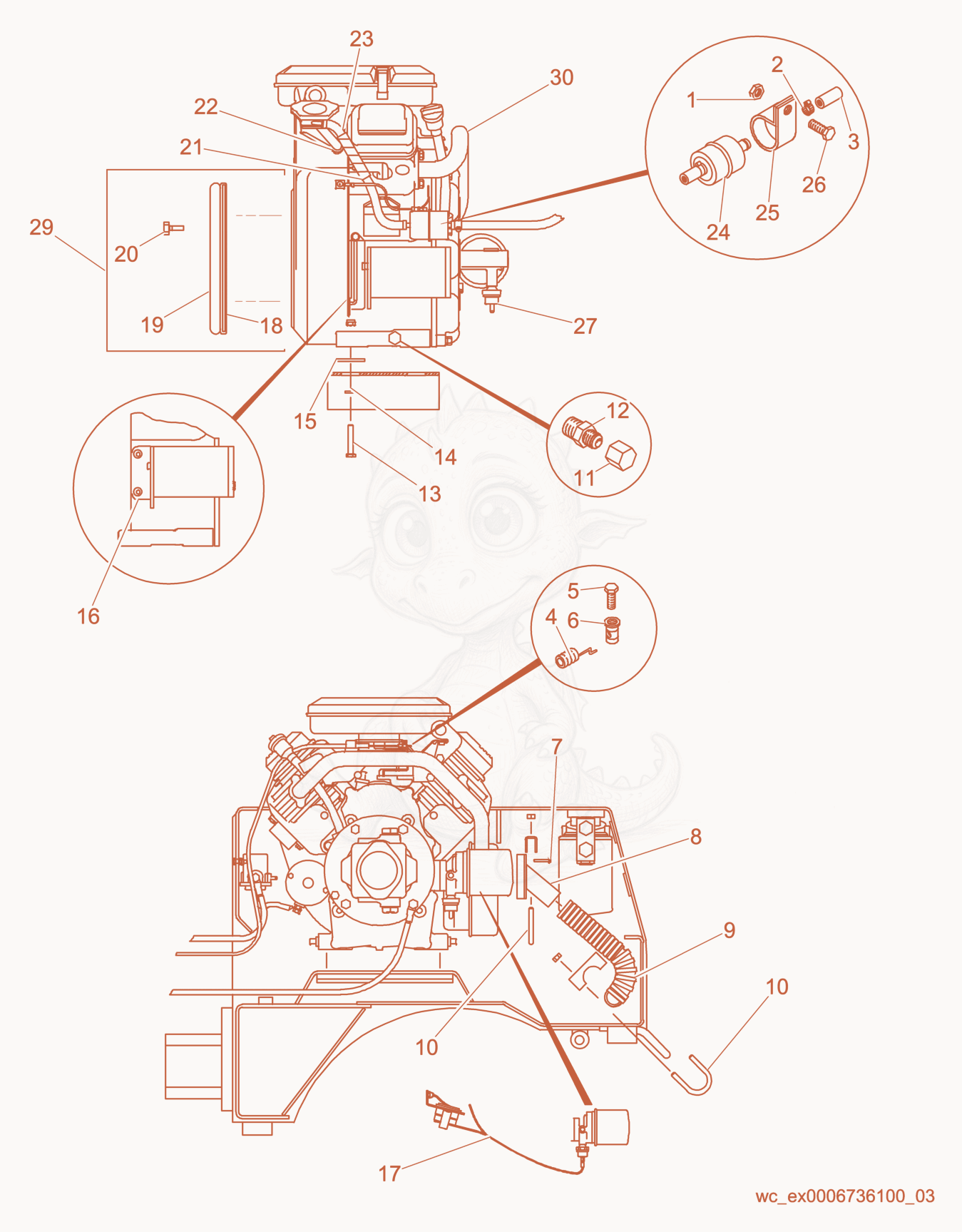

RD880V Engine Compartment Diagram
- NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×1
- CLAMP-THREADED,.21-.63 - 5000028707×1
- 35000080302Not stockedFuel hose×1
- 45000074256Not stockedLink×1
- SCREW #8-32 X 1/4,HX.HD.MACH. - 5000028329×1
- CONNECTOR-WIRE SWIVEL - 5000028330×1
- SCREW #8-32X1,HEX SLOTTED HD - 5000082798×4
- 85000082796Not stockedMount×1
- 95000085997Not stockedTube×1
- CLAMP-MUFFLER - 5000079578×2
- 115000071505Not stockedFitting×1
- FITTING-ADAPTER,MALE,HYDRAULIC - 5000028151×1
- SCREW M8 X 45 HX.HD. - 5000011453×4
- WASHER-FLAT,M8,ZINC - 5000010622×4
- 155000080775Not stockedFlat washer×1
- 155000081089Not stockedFlat washer×1
- SCREW M10 X 30 SOC.HD. - 5000011534×6
- WASHER-LOCK B8 - 5000012397×2
- 175000081189Not stockedWiring harness×1
- 185000085655Not stockedSealing ring×1
- 195000085654Not stockedSeal×1
- SCREW M6 X 10,HX.HD,SER.FLG - 5000073164×4
- 215000081054Not stockedWire×1
- WRAP-BULK,SPIRAL 1/2 OD - 5000075724×1
- 235000081010Not stockedFuel hose×1
- 245000081359Not stockedFuel filter×1
- 255000081430Not stockedClamp×1
- SCREW M8 X 30 HX.HD. - 5000011456×1
- 275000083390Not stockedSwitch×1
- 295000085664Not stockedSeal Kit×1
- 305000110307Not stockedVanguard engine cpl.×1
