RD880V-ROLLER, DOUBLE DRUM

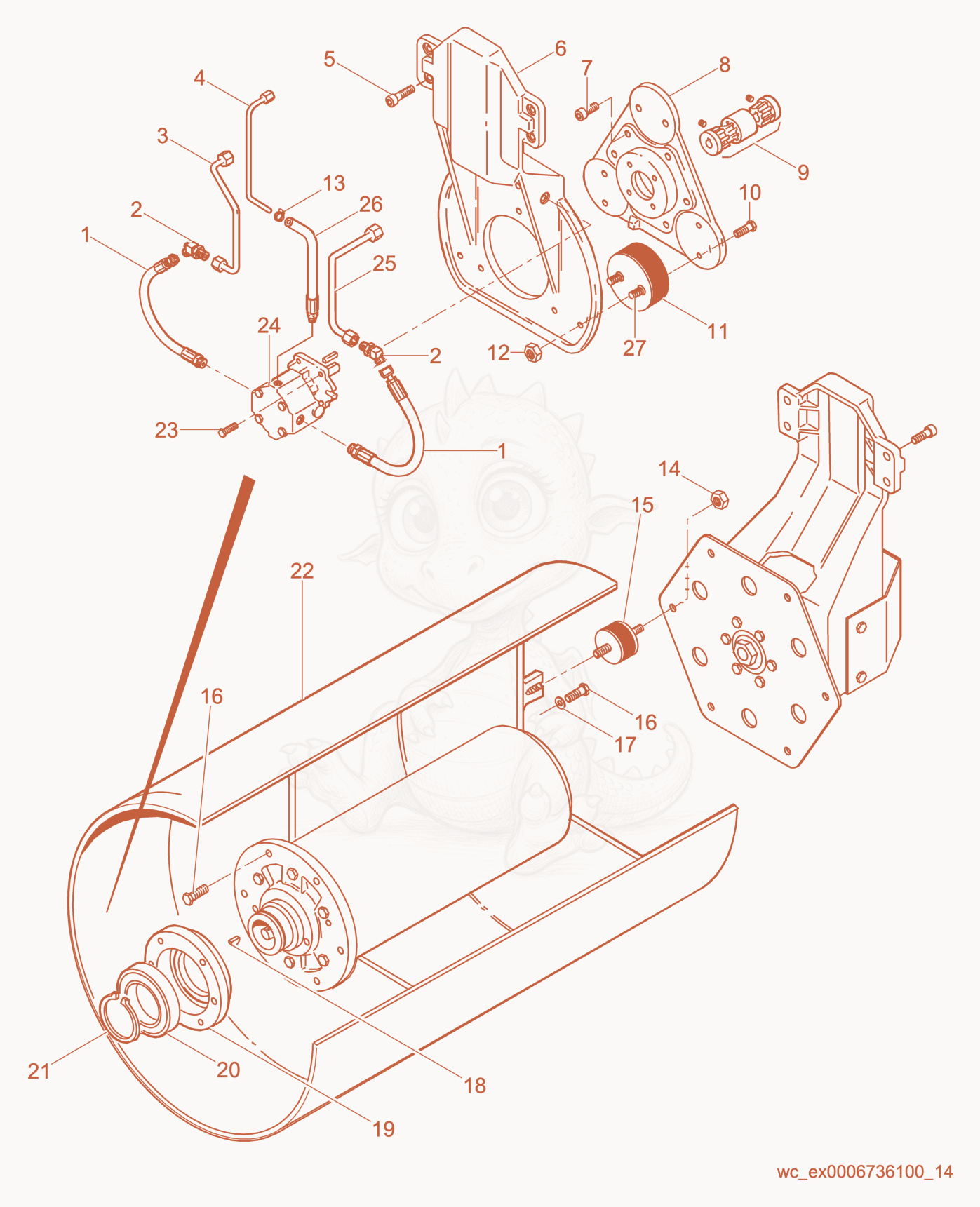

RD880V Front Drum Diagram
- HOSE-HYD.ASSY 06ID X 13.30 LG - 5000078967×2
- 25000078963Not stockedHydraulic elbow fitting×2
- O-RING .36 X .07 #6 ORFS 2-012 - 5000080736×2
- TUBE-EXCITER,LEFT HAND - 5000078937×1
- TUBE-CASE DRAIN,EXCITER - 5000078936×1
- SCREW M12 X 30 10.9,SOC - 5000017087×4
- 65000078764Not stockedBracket×1
- SCREW M10 X 25 SOC.HD. - 5000011535×6
- 85000078763Not stockedExciter bar mount×1
- COUPLING-FLEXIBLE - 5000078795×1
- SCREW M8 X 18 HX.HD. - 5000013551×6
- Shockmount-103 x 40-45SH,FRM C - 5000015573×3
- NUT-LOCK M8 HEX - 5000010367×6
- CLAMP-THREADED,.21-.63 - 5000028707×1
- NUT-LOCK M10 HEX. - 5000010365×6
- SHOCKMOUNT 54 X 33-70SH,FRM A - 5000073131×6
- SCREW M10 X 25 HX.HD. - 5000011440×12
- WASHER-LOCK 10 - 5000033988×6
- KEY-WOODRUFF 3/16 X 3/4,#90 - 5002009108×1
- 195000077923Not stockedBearing×1
- BEARING-RADIAL BALL,6014 - 5000039988×1
- RET.RING-EXT 70MMX2.5MM, - 5002004853×1
- 225000077938Not stockedDrum×1
- SCREW M8 X 20 HX.HD. - 5000012362×4
- MOTOR-HYDRAULIC - 5000078796×1
- SEAL-SHAFT, GEAR MOTOR - 5000083823×1
- 255000078938Not stockedTube×1
- HOSE R3A4-M2XX-9.000 - 5000078966×1
- 275000013536Not stockedStud×6
