RD24-100c DPF

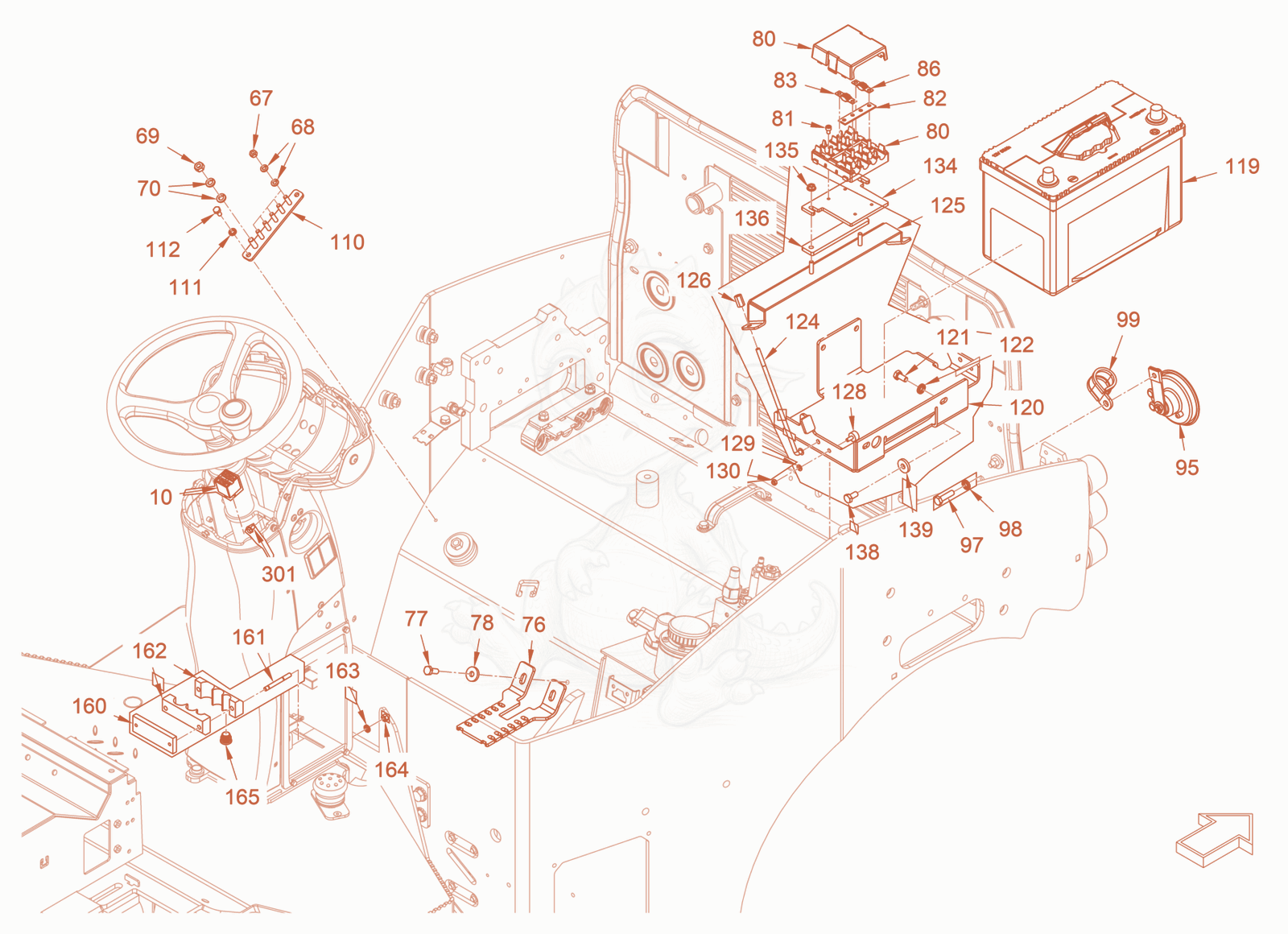

RD24-100CDPF electrical system Diagram
- Signal transmitter - 5100011784×1
- Hexagon nut - 5100011914×5
- spring ring - 5100023629×10
- Hexagon nut - 5100011915×1
- Serrated lock washer - 5100011917×2
- Bracket - 5100012403×1
- Hexagon screw - 5100012517×2
- Washer - 5100013094×2
- 805100052964Not stockedfuse box×1
- cheese-head screw - 5100035321×4
- 825100052965Not stockedcontact bridge×1
- Blade fuse - 5100011640×2
- 865100052966Not stockedblade-type fuse×1
- Signal horn - 5100012321×1
- Hexagon screw - 5100013510×1
- Locking washer - 5100012966×1
- Pipe clip - 5100011470×1
- Ground terminal - 5100011974×2
- Locking washer - 5100012965×4
- 1125100012572Not stockedHexagon screw×4
- battery (acid) - 5100024870×1
- 1205100052967Not stockedconsole×1
- Hexagon screw - 5100012515×2
- Locking washer - 5100012966×2
- 1245100052968Not stockedtie rod×2
- 1255100052969Not stockedbattery support×1
- 1265100052970Not stockednut×2
- Rubber metal buffer - 5100012713×2
- Washer - 5100012936×2
- Hexagon nut - 5100011599×2
- 1345100052971Not stockedholder×1
- hexagonal nut - 5100023132×2
- 1365100077711Not stockedmetal plate×1
- Hexagon screw - 5100012515×1
- Washer - 5100013094×1
- Cover plate - 5100012326×1
- Stud bolt - 5100012586×2
- 1625100024969Not stockedhalf-clip×2
- Locking washer - 5100012965×2
- Hexagon nut - 5100012545×2
- Filler cap - 5100011537×1
- Safety screw - 5100013594×1
