RD24-100c DPF

RD24-100CDPF operator's seat with adjustment Diagram

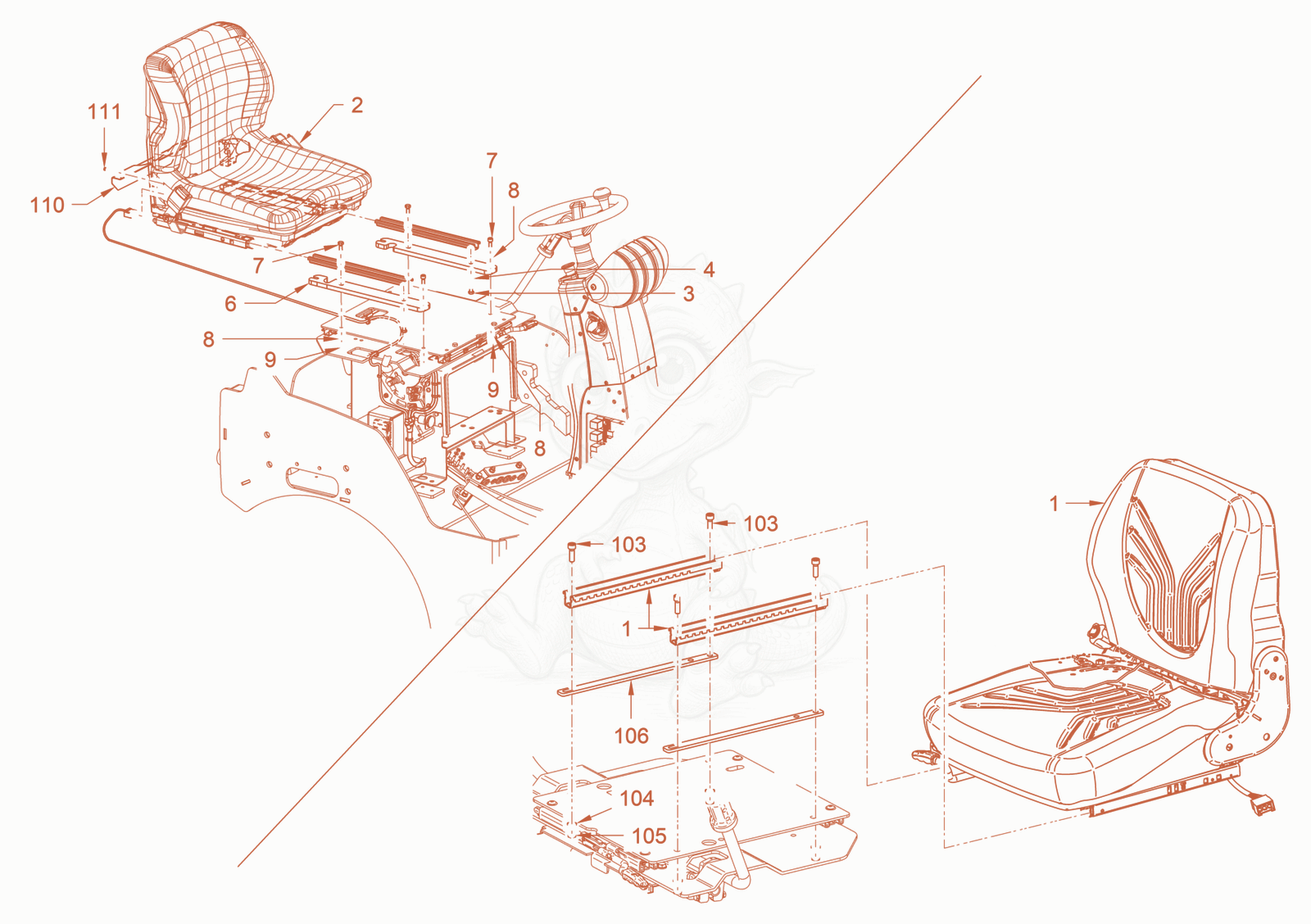

Exploded parts diagram of the operator's seat with adjustment of a Wacker Neuson RD24-100CDPF, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100033194Not stocked
    driver's seat×1
  • 15100082818Not stocked
    operator's seat×1
  • 25100029584Price
    driver's seat - 5100029584×1
  • 35100012613Price
    Hexagon screw - 5100012613×2
  • 45100013441Price
    Locking washer - 5100013441×2
  • 65100012015Price
    Metal plate - 5100012015×2
  • 75100013510Price
    Hexagon screw - 5100013510×4
  • 85100012966Price
    Locking washer - 5100012966×6
  • 95100012546Price
    Hexagon nut - 5100012546×4
  • 1035100012727Price
    Cheese-head screw - 5100012727×4
  • 1045100012966Price
    Locking washer - 5100012966×4
  • 1055100012546Price
    Hexagon nut - 5100012546×4
  • 1065100012014Price
    Metal plate - 5100012014×2
  • 1105100012306Price
    Protecting plate - 5100012306×1
  • 1115100011634Price
    Sheet metal screw - 5100011634×2
