RD24-100c DPF

RD24-100CDPF cooling (engine/hydraulic oil) Diagram

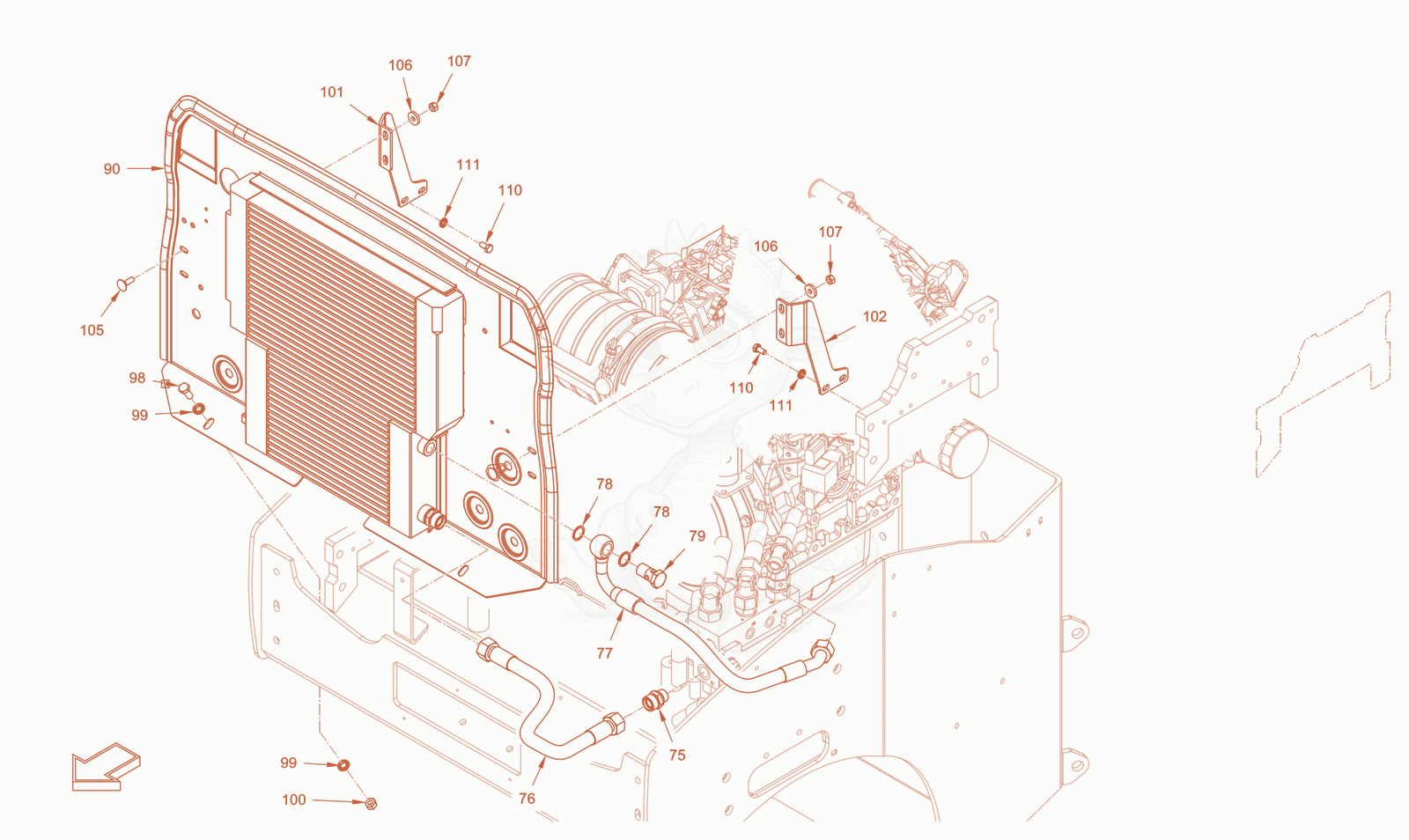

Exploded parts diagram of the cooling (engine/hydraulic oil) of a Wacker Neuson RD24-100CDPF, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 755100013477Price
    Straight screwed socket - 5100013477×1
  • 765100012915Price
    Flexible tubing - 5100012915×1
  • 775100012446Price
    Flexible tubing - 5100012446×1
  • 785100013003Price
    Sealing ring - 5100013003×2
  • 795100012918Price
    Hollow-core screw - 5100012918×1
  • 905100052935Not stocked
    radiator compl.×1
  • 985100011479Price
    Hexagon screw - 5100011479×2
  • 995100012967Price
    Locking washer - 5100012967×4
  • 1005100012547Price
    Hexagon nut - 5100012547×2
  • 1015100052936Not stocked
    holder×1
  • 1025100052937Not stocked
    holder×1
  • 1055100012780Price
    Mushroom head screw - 5100012780×4
  • 1065100013094Price
    Washer - 5100013094×4
  • 1075100012546Price
    Hexagon nut - 5100012546×4
  • 1105100012515Price
    Hexagon screw - 5100012515×4
  • 1115100012966Price
    Locking washer - 5100012966×4
