RD24-100c DPF

RD24-100CDPF main frame and assemblies Diagram

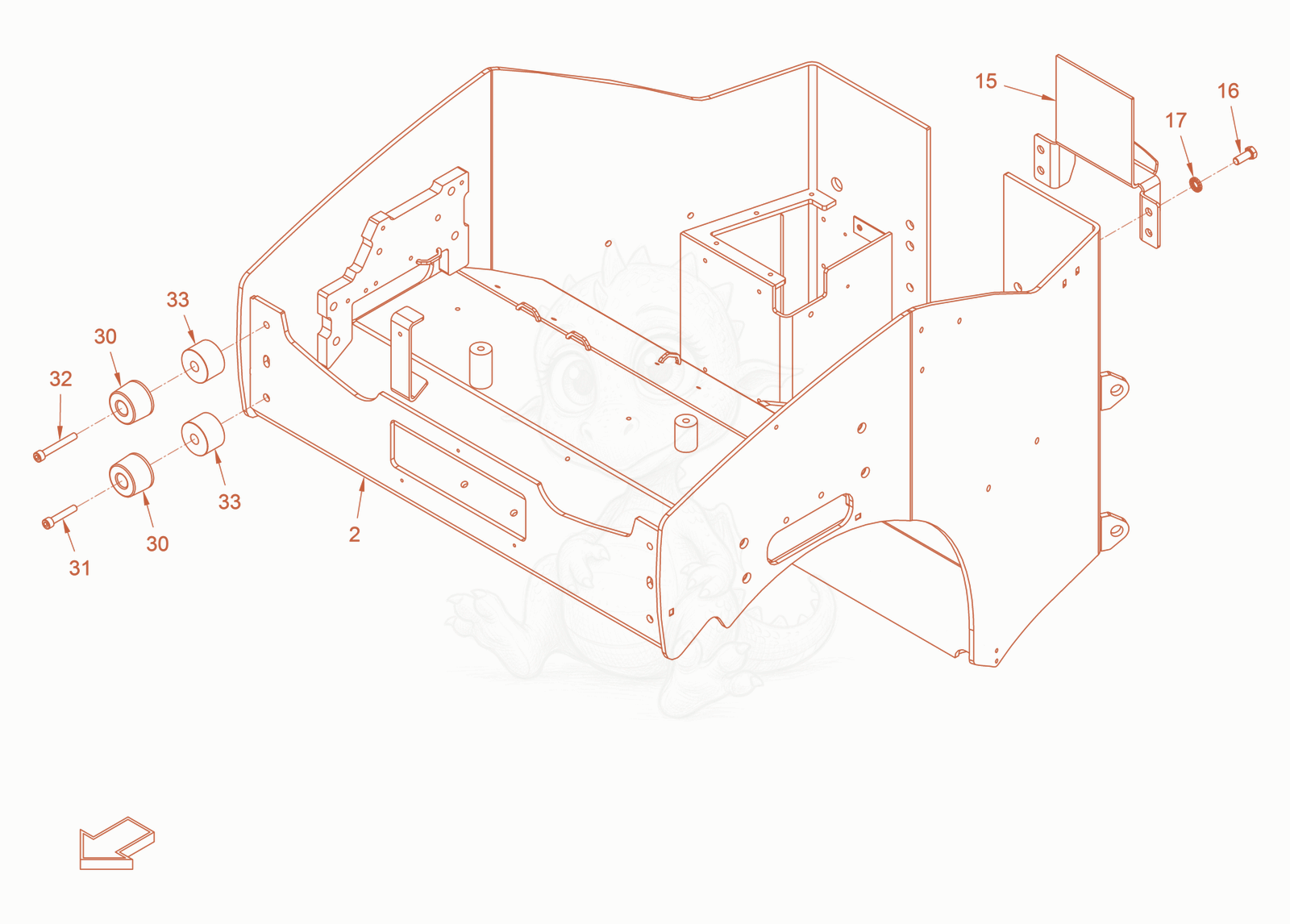

Exploded parts diagram of the main frame and assemblies of a Wacker Neuson RD24-100CDPF, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25100052878Not stocked
    frame×1
  • 155100052879Not stocked
    metal plate×1
  • 165100012626Price
    Hexagon screw - 5100012626×4
  • 175100012968Price
    Locking washer - 5100012968×4
  • 305100011814Price
    Rubber buffer - 5100011814×10
  • 315100011485Price
    Cheese-head screw - 5100011485×6
  • 325100011585Price
    Cheese-head screw - 5100011585×4
  • 335100012350Price
    Spacer block - 5100012350×10
