G120-GENERATOR,SKID BASE

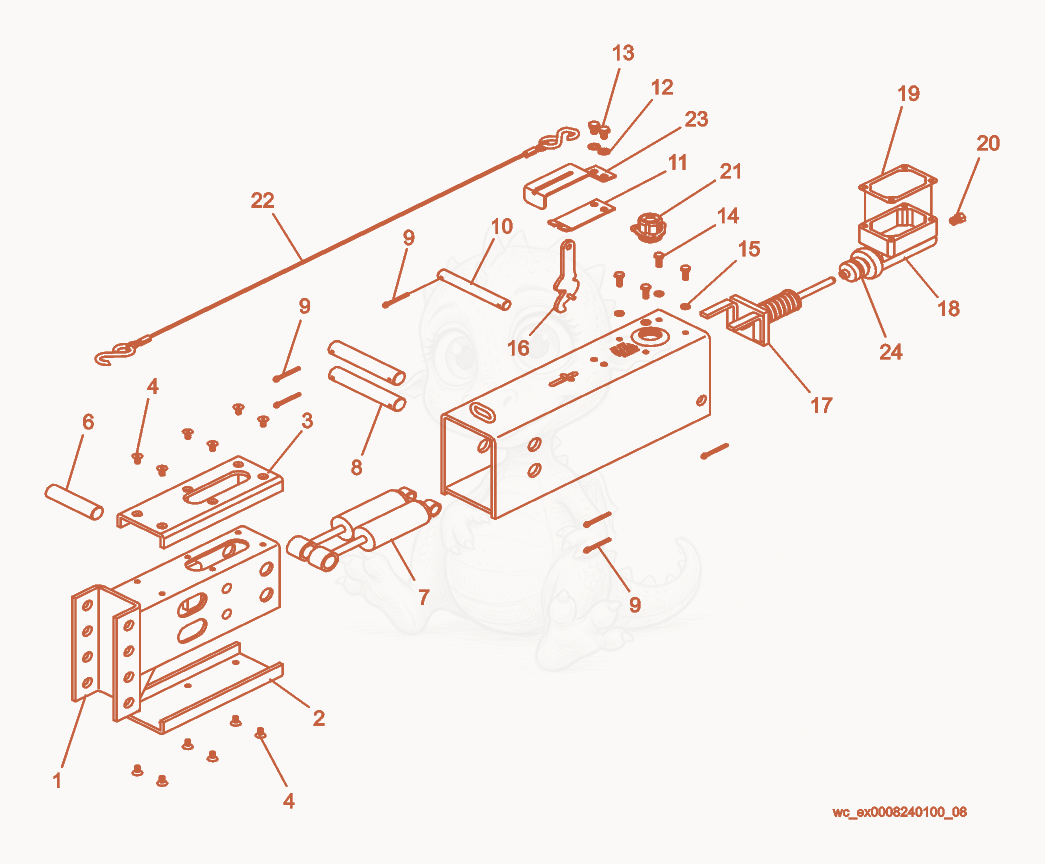

G120 Surge Actuator Assembly Diagram
- TUBE-INNER - 5000152097×1
- PAD-WEAR,BOTTOM - 5000152209×1
- PAD-WEAR,TOP - 5000152210×1
- SCREW 1/4-20 X 1/2 - 5000152211×12
- 55000152212Not stockedShock absorber×2
- Pin - 5000152213×1
- CASING-OUTER - 5000152214×1
- PIN-CONNECTING - 5000152215×2
- PIN-COTTER - 5000152216×6
- Pin - 5000152217×1
- SPRING-REAR,EMERGENCY - 5000152218×1
- WASHER-LOCK 5/16 - 5000152219×2
- BOLT 5/16-18X5/8 - 5000152220×2
- 145000152221Not stockedBolt×4
- 155000152222Not stockedLock washer×4
- LEVER-EMERGENCY - 5000152223×1
- ROD-PUSH,ASSY. - 5000152224×1
- 185000152225Not stockedCylinder×1
- 195000152226Not stockedGasket×1
- FITTING-PIPE 1/8 - 5000152227×1
- 215000152228Not stockedCap×1
- 215000152229Not stockedO-Ring×1
- CABLE W/HOOKS - 5000152230Unknown×1
- 225000152231Not stockedHook×2
- 235000152232Not stockedGuide×1
- 245000152233Not stockedCover×1
