G120-GENERATOR,SKID BASE

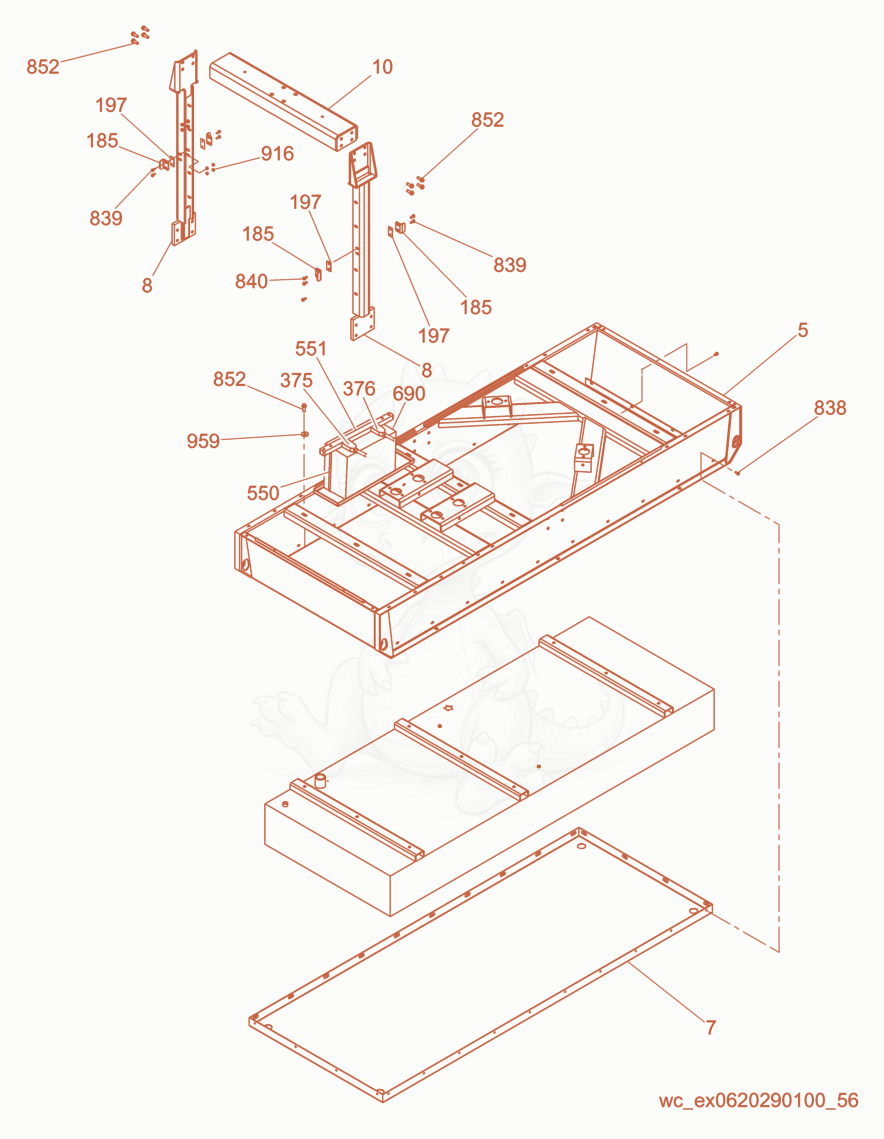

G120 Skid Assembly Diagram

Exploded parts diagram of the Skid Assembly of a Wacker Neuson G120, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 55000153547Price
    FRAME-WELDMENT SKID,LARGE - 5000153547×1
  • 75000153618Price
    PANEL-PAN,BOTTOM - 5000153618×1
  • 85000153599Not stocked
    Frame×2
  • 105000153606Not stocked
    Frame×1
  • 1855000153012Price
    LATCH-DOOR STRIKE - 5000153012×4
  • 1975000153011Not stocked
    Door strike spacer×2
  • 3755000170995Not stocked
    Positive battery cable×1
  • 3765000173088Price
    CABLE-BATTERY,NEGATIVE,38 - 5000173088×1
  • 5505000154319Price
    BOLT-L .25-10,BATTERY - 5000154319×1
  • 5515000153763Price
    CLAMP-BATTERY HOLD DOWN - 5000153763×1
  • 6905000159808Price
    BATTERY-WET,GR31 - 5000159808×1
  • 8385000155213Price
    SCREW-M8 X 25 HX SER FLG ZP - 5000155213×28
  • 8405000085957Price
    SCREW M8 X 30,HX.HD,SER.FLG - 5000085957×2
  • 8525000155247Price
    SCREW M12X35-10.9 HX SER FLG - 5000155247×17
  • 9165000030066Price
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×8
  • 9595000010376Price
    WASHER A13 FLAT - 5000010376×9
