G120-GENERATOR,SKID BASE

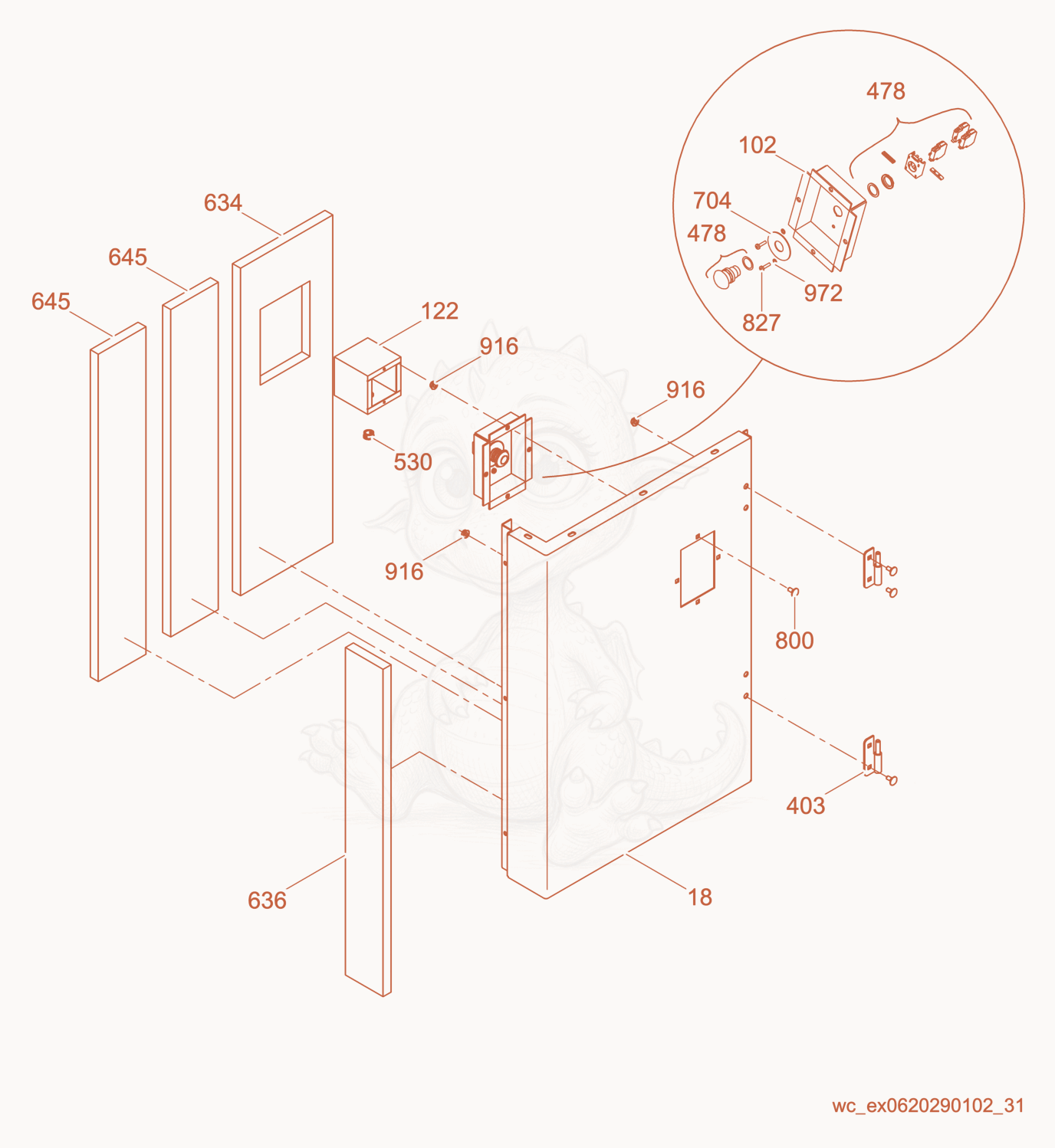

G120 Emergency Stop Corner Diagram

Exploded parts diagram of the Emergency Stop Corner of a Wacker Neuson G120, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 185000153579Not stocked
    Panel×1
  • 1025000152996Not stocked
    Emergency stop box panel×1
  • 1225000153279Price
    COVER-EMERGENCY STOP BOX - 5000153279×1
  • 4035000170181Not stocked
    Door hinge×2
  • 4785000165354Price
    SWITCH-E STOP ASSEMBLY - 5000165354×1
  • 5305000154388Not stocked
    Bushing×1
  • 6345000152901Price
    INSULATOR-CORNER,REAR RIGHT - 5000152901×1
  • 6365000152903Price
    INSULATOR-CORNER,REAR - 5000152903×1
  • 6455000156281Not stocked
    Insulator×2
  • 7045000155460Price
    LABEL-EMERGENCY STOP - 5000155460×1
  • 8005000011153Not stocked
    Carriage bolt×6
  • 8275000154515Price
    SCREW M5X12-4.8 PAN HD ZP - 5000154515×2
  • 9165000030066Price
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×8
  • 9725000010652Price
    WASHER-LOCK B5 - 5000010652×2
