G120-GENERATOR,SKID BASE

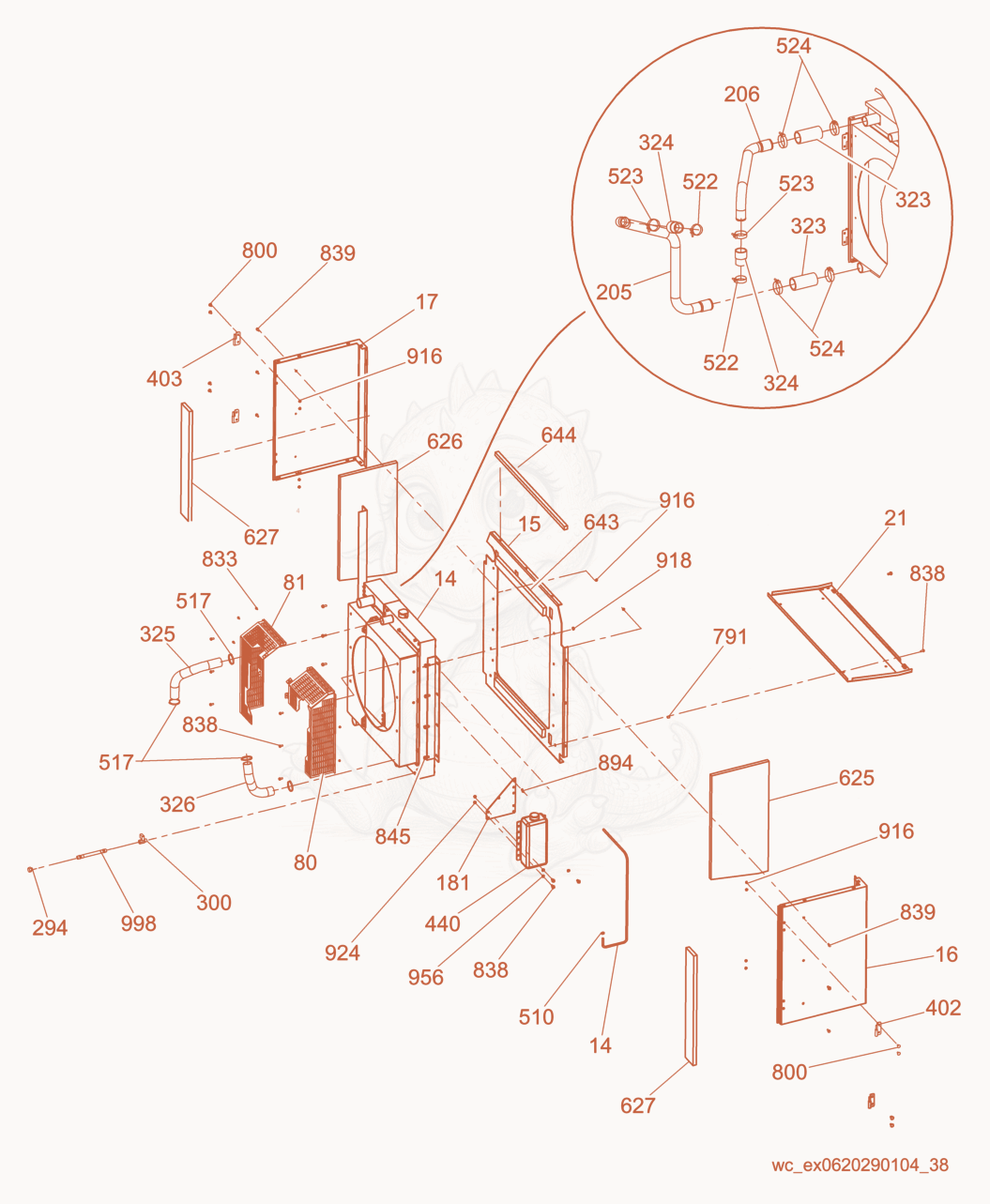

G120 Radiator cpl. Diagram
- 145000170694Not stockedRadiator×1
- 155000170693Not stockedPanel×1
- 165000153739Not stockedFront right side panel×1
- 175000153737Not stockedPanel×1
- 215000153731Not stockedPanel×1
- 805000170699Not stockedFan guard×1
- 815000170699Not stockedFan guard×1
- 1815000155239Not stockedBracket×1
- PIPE-CAC TURBO,G120 - 5000170690×1
- PIPE-CAC INTAKE,G120 - 5000170696×1
- PLUG-1/2 NPT HEX,NYLON - 5000154343×1
- VALVE-BALL 1/2 MALE X FEMALE - 5000154305×1
- 3235000156299Not stockedHose×2
- HOSE-CAC,2 X 2.25 REDUCER - 5000156300×2
- HOSE-RADIATOR,TOP,G160 - 5000156241×1
- HOSE-RADIATOR,2.0 ID X 17.0 L - 5000170698×1
- 4025000170179Not stockedDoor hinge×2
- 4035000170181Not stockedDoor hinge×2
- BOTTLE-ASSY 6 QT. 5/16 BARB. - 5000155241×1
- CLAMP-THREADED,.21-.63 - 5000028707×1
- CLAMP-WORM DRIVE 2.06 -3 - 5000154344×4
- 5225000028698Not stockedT-bolt clamp×2
- CLAMP-2 5/8 NOM,T-BOLT - 5000156290×2
- 5245000156291Not stockedClamp×4
- 6255000153898Not stockedDiamond blade×1
- INSULATOR-EXHAUST COMP,LEFT - 5000152899×1
- INSULATOR-EXHST COMP,FRONT TOP - 5000152900×1
- Insulator-radiator seal - 5000152912×1
- INSULATOR-BULKHEAD - 5000152913×1
- INSERT M8,THREADED - 5000085454×2
- 8005000011153Not stockedCarriage bolt×8
- SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×1
- SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×2
- SCREW-M8 X 25 HX SER FLG ZP - 5000155213×6
- SCREW M10X25 HEX,SER.FLG ZP - 5000116164×1
- SCREW M8X25 HX FL HD,BL ZN 8.8 - 5000163947×2
- NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×10
- NUT-LOCK M10,SERR.,FLANGE - 5000089316×8
- NUT-LOCK M8 HEX - 5000010367×2
- WASHER-FLAT,M8,ZINC - 5000010622×3
- 9985000155371Not stockedHose Kit×1
