EZ80

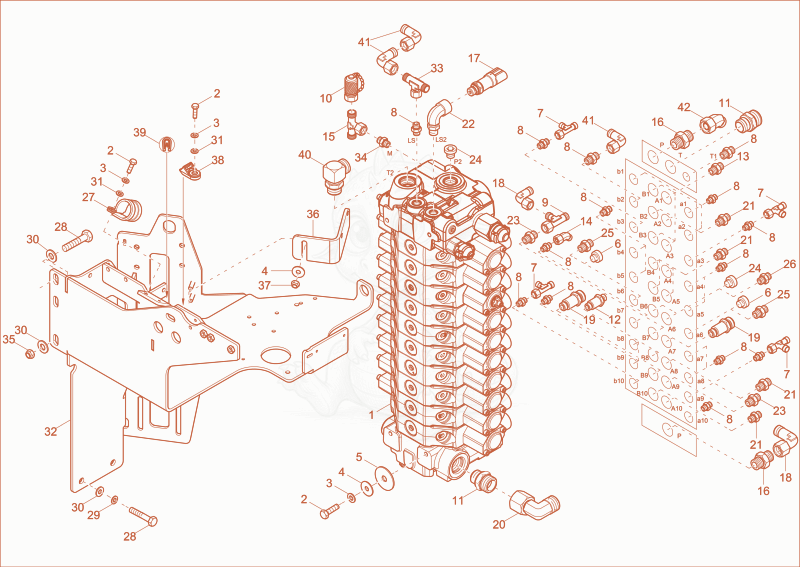

EZ80 CONTROL VALVE 1 Diagram
- 11000513152Not stockedcontrol block×1
- 21000013008Not stockedhex screw×6
- 31000015437Not stockedlock washer×6
- 41000013027Not stockedwasher×6
- rubber shock absorber - 1000156073×4
- 61000022438Not stockedscrew joint×2
- 71000015515Not stockedscrew joint×4
- 81000015488Not stockedscrew joint×20
- 91000021216Not stockedscrew joint×1
- MINIMESS POINT - 1000263904×1
- E28LR3/4" EDOMDA3C - 1000085069×2
- 121000334820Not stockedscrew joint×1
- 131000015494Not stockedscrew joint×4
- EV08LA3C-EO45° - 1000187907×1
- ET10LOMDA3C - 1000085057×1
- 161000020908Not stockedscrew joint×2
- 171000312658Not stockedpressure sensor×1
- EW20SOMDA3C - 1000085093×2
- 191000334814Not stockedscrew joint×2
- EW28LOMDA3C - 1000085091×1
- 211000015497Not stockedscrew joint×9
- WEE1/4"-1/4" - 1000251624×1
- 231000015549Not stockedscrew joint×2
- VSTI1/2EDA3C - 1000082786×3
- 251000015488Not stockedscrew joint×2
- 261000015497Not stockedscrew joint×2
- 271000062589Not stockedpipe clamp×1
- 6-Point screw M10x40-8.8 A2C-DIN933 - 1000085412×6
- 291000015438Not stockedlock washer×2
- washer M10-DIN134 - 1000094974×8
- 311000015431Not stockedwasher×2
- 321000416002Not stockedbracket valve×1
- 331000015515Not stockedscrew joint×1
- 341000015490Not stockedscrew joint×1
- nut M10-8 A2C-DIN985 - 1000015408×2
- bracket - 1000358131×1
- DIN985-M8-8-A2C - 1000015416×2
- sockets - 1000282738×1
- edge protection - 1000151037×0.5
- 401000373699Not stockedscrew joint×1
- EW08LOMD - 1000000542×3
- 421000457624Not stockedscrew joint×1
