EZ80

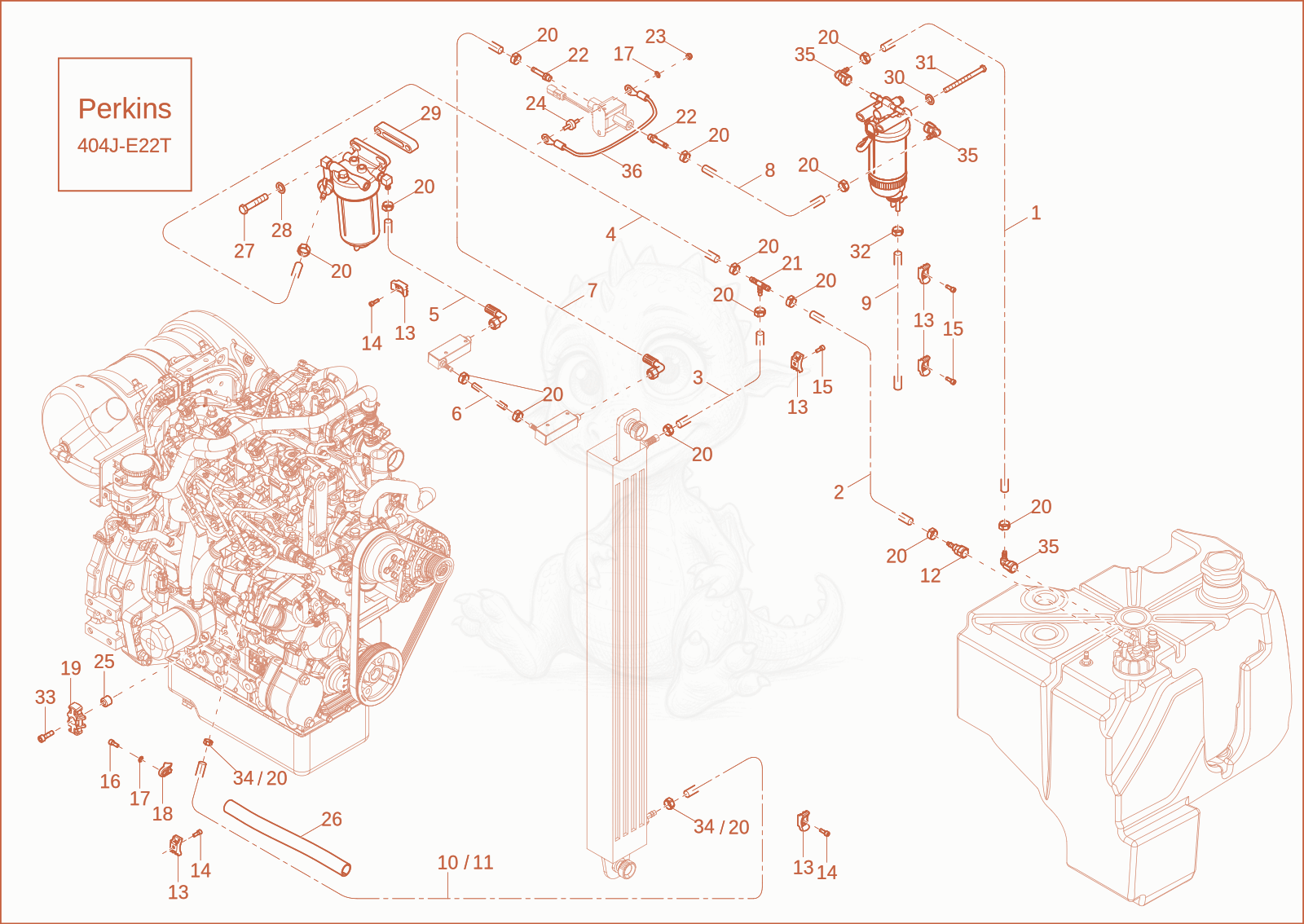

EZ80 FUEL SUPPLY (Option) Diagram
- 11000411932Not stockedfuel line×0.3
- 21000411932Not stockedfuel line×0.7
- 31000411932Not stockedfuel line×0.65
- 41000411932Not stockedfuel line×1.5
- 51000419485Not stockedfuel line×1
- 61000411932Not stockedfuel line×0.1
- 71000419484Not stockedfuel line×1
- 81000411932Not stockedfuel line×0.4
- 91000415708Not stockedsynthetic hose×1
- 101000419110Not stockedfuel line×1.6
- 111000411932Not stockedfuel line×1.6
- 121000328894Not stockedplug×1
- sockets - 1000282739×6
- allen screw M5x16-8.8 A2C DIN912 - 1000085451×3
- allen screw M 5x12-8.8 A2C DIN912 - 1000085494×3
- allen screw M6x20-8.8 A2C-DIN912 - 1000085456×1
- 171000015430Not stockedu-washer×3
- sockets - 1000282738×1
- Base - 1000333302×1
- clamp hose 15.3 - 1000267809×16
- 211000497227Not stockedhose connector×1
- 221000368414Not stockedend piece×2
- self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
- METAL- RUBBER BUFFER - 1000151465×2
- Sleeve - 1000255818×1
- cable hose - 1000132924×0.21
- hex screw - 1000085414×2
- washer M10-DIN134 - 1000094974×2
- 311000085323Not stockedhex screw×2
- HOSE CLAMP - 1000223252×1
- cheese head screw M8x30-10.9 DACRO500-5 - 1000085497×1
- 341000371940Not stockedhose clamp×2
- coupling - 1000408576×3
- 361000451408Not stockedearth cable×1
