EZ80

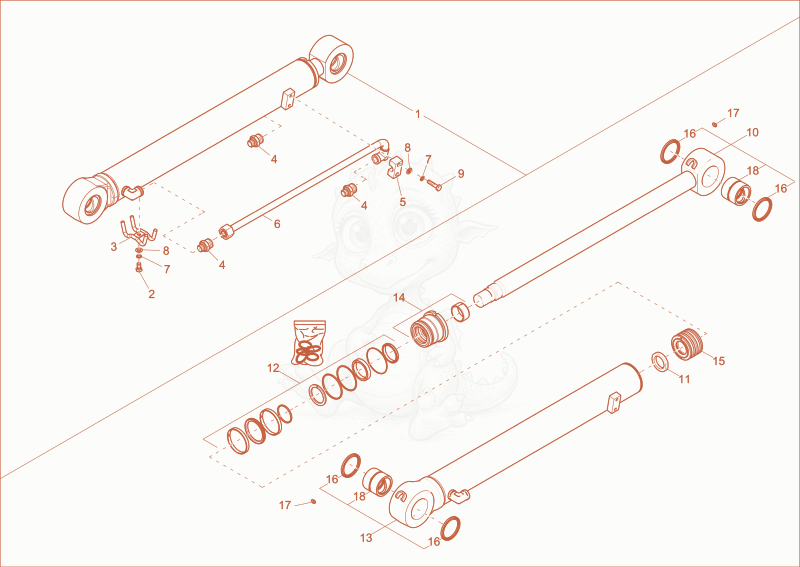

EZ80 bucket cylinder Diagram
- 11000379311Not stockedbucket cylinder×1
- hex screw M10x20-8.8 A2C DIN933 - 1000085411×1
- 31000329856Not stockedbracket hose×1
- 41000015549Not stockedscrew joint×3
- pipe clamp - 1000129892×1
- cylinder pipes assy. - 1000129891×1
- 71000015438Not stockedlock washer×3
- washer 10,5 A2C DIN125 - 1000015432×3
- 6-Point screw M10x40-8.8 A2C-DIN933 - 1000085412×2
- 101000355883Not stockedpiston rod×1
- 111000339104Not stockedset nut×2
- cylinder seal kit - 1000372956×1
- cylinder housing - 1000356238×1
- 141000372918Not stockedguide bushing×1
- PISTON - 1000339170×1
- pin gasket - 1000099537×4
- 171000396384Not stockedgrease nipple×1
- steel bushing - 1000114035×2
