EZ80

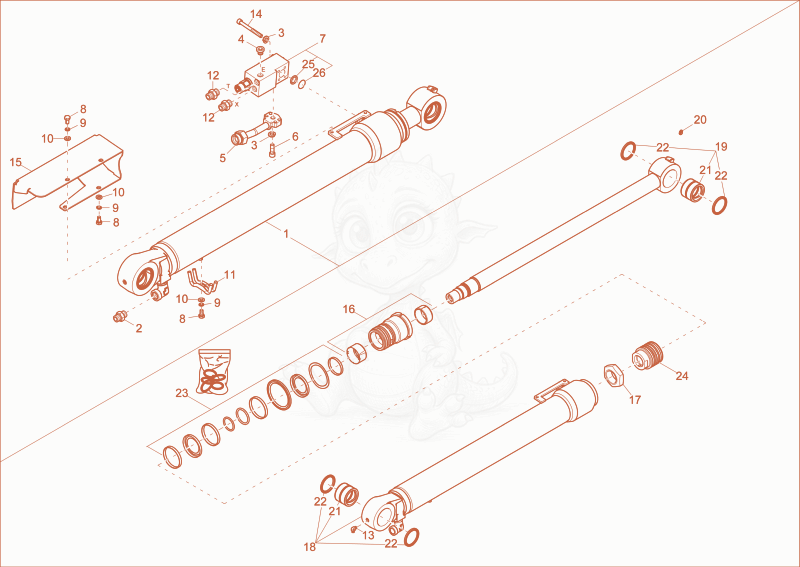

EZ80 DIPPER ARM CYLINDER Diagram
- 11000378390Not stockeddipper arm cylinder×1
- GE25SR3/4" EDOMDA3C - 1000085118×1
- spring washer - 1000082624×8
- 41000022438Not stockedscrew joint×1
- TUBE - 1000126004×2
- cheese head screw M8x30-10.9 DACRO500-5 - 1000085497×4
- HOSE BURST PROTECTION VALVE arm - 1000353630×1
- hex screw M10x20-8.8 A2C DIN933 - 1000085411×5
- 91000015438Not stockedlock washer×5
- washer 10,5 A2C DIN125 - 1000015432×5
- 111000329856Not stockedbracket hose×2
- 121000015488Not stockedscrew joint×2
- 131000015532Not stockedscrew joint×1
- cheese head screw - 1000085467×4
- 151000371379Not stockedprotection plate×1
- 161000372916Not stockedguide bushing×1
- set nut - 1000286245×1
- cylinder housing - 1000414995×1
- Piston rod - 1000414996×1
- 201000396384Not stockedgrease nipple×1
- steel bushing - 1000286261×2
- pin gasket - 1000286250×4
- cylinder seal kit - 1000372949×1
- Piston - 1000414998×1
- O-RING - 1000090469×1
- support ring - 1000406200×1
