EZ53

EZ53 Easy Lock Valve (Option) Diagram

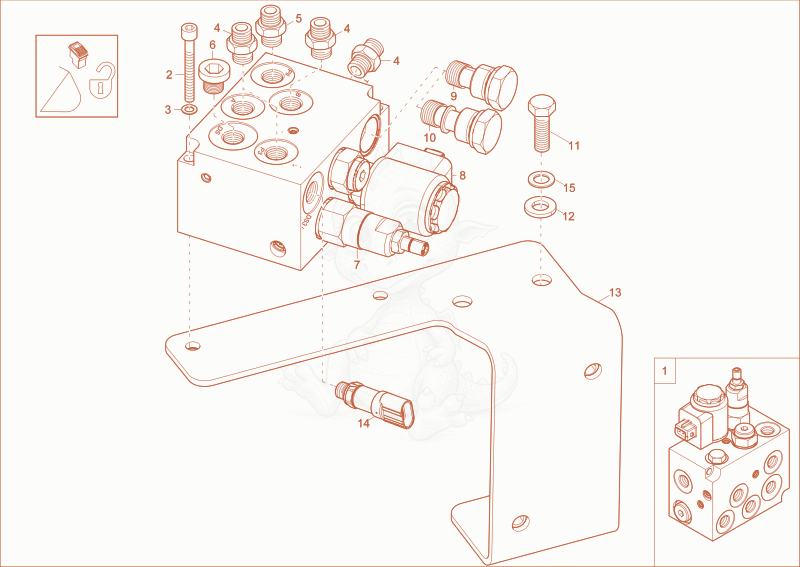

Exploded parts diagram of the Easy Lock Valve (Option) of a Wacker Neuson EZ53, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000278848Price
    Hswsvalve 1000278848×1
  • 21000085461Price
    cheese head screw M6x60-8.8 A2C - 1000085461×2
  • 31000015436Not stocked
    lock washer×2
  • 41000015488Not stocked
    screw joint×4
  • 51000468097Not stocked
    filter×1
  • 61000022438Not stocked
    screw joint×1
  • 71000290426Price
    valve - 1000290426×1
  • 81000290428Price
    magnet spool - 1000290428×1
  • 91000242859Price
    plug - 1000242859×1
  • 101000281461Price
    plug - 1000281461×1
  • 111000015345Price
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×2
  • 121000015432Price
    washer 10,5 A2C DIN125 - 1000015432×2
  • 131000354815Not stocked
    bracket valve×1
  • 141000279152Price
    PRESSURE SWITCH - 1000279152×1
  • 151000015438Not stocked
    lock washer×2
