EZ53

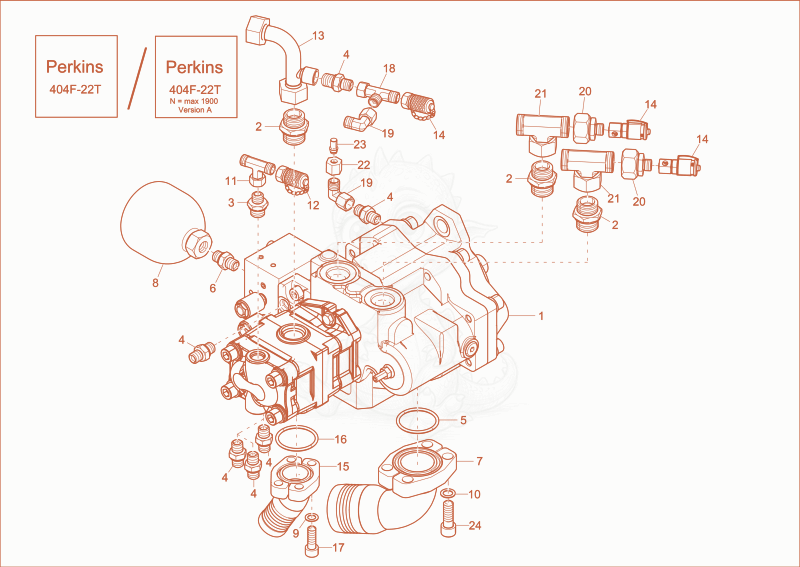

EZ53 hydraulic pump Diagram

Exploded parts diagram of the hydraulic pump of a Wacker Neuson EZ53, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000364527Price
    pump - 1000364527×1
  • 21000082975Price
    GE18LR3/4OROMDA3C - 1000082975×3
  • 31000082988Price
    GE08LR3/8OROMDA3C - 1000082988×1
  • 41000082963Price
    GE08LR1/4OROMDA3C - 1000082963×6
  • 51000095051Price
    O-RING - 1000095051×1
  • 61000126095Price
    ADAPTER - 1000126095×1
  • 71000109878Price
    Suctionflange 1000109878×1
  • 81000261221Price
    ACCUMULATOR - 1000261221×1
  • 91000015438Not stocked
    lock washer×4
  • 101000082609Price
    lock washer - 1000082609×1
  • 111000015518Price
    ET08LOMDA3C - 1000015518×1
  • 121000000575Not stocked
    minimess point×1
  • 131000142823Price
    pipe bow - 1000142823×1
  • 141000000575Not stocked
    minimess point×3
  • 151000118019Price
    suction flange - 1000118019×1
  • 161000095052Price
    O-RING - 1000095052×1
  • 171000015376Not stocked
    cheese head screw×4
  • 181000015515Not stocked
    screw joint×1
  • 191000000542Price
    EW08LOMD - 1000000542×2
  • 201000082862Not stocked
    screw joint×2
  • 211000085077Price
    ET18LOMDA3C - 1000085077×2
  • 221000015481Not stocked
    union nut×1
  • 231000083043Price
    VKA08A3C - 1000083043×1
  • 241000085475Price
    cheese head screw - 1000085475×4
