EZ53

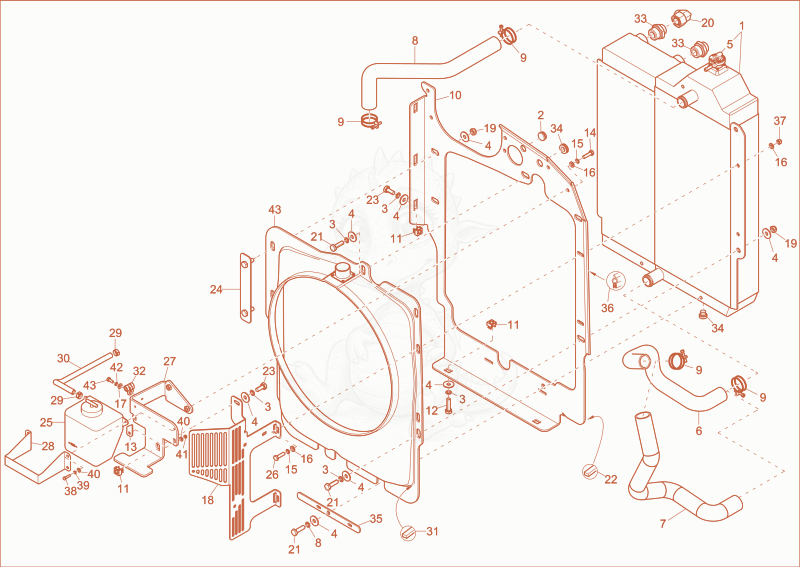

EZ53 combicooler Diagram

Exploded parts diagram of the combicooler of a Wacker Neuson EZ53, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000339317Price
    combicooler - 1000339317×1
  • 21000065509Not stocked
    blind plug×1
  • 31000015438Not stocked
    lock washer×9
  • 41000092303Price
    Washer 10,5 St A2C - 1000092303×14
  • 51000164849Price
    cooler cap - 1000164849×1
  • 61000339377Not stocked
    water hose×1
  • 71000339462Price
    HOSE - 1000339462×1
  • 81000339379Not stocked
    water hose×1
  • 91000285400Price
    hose clamp - 1000285400×4
  • 101000339320Price
    console - 1000339320×1
  • 111000094959Price
    Korgmutter M10 4,8-6,2 - 1000094959×6
  • 121000085412Price
    6-Point screw M10x40-8.8 A2C-DIN933 - 1000085412×6
  • 131000129363Price
    shim - 1000129363×2
  • 141000085382Price
    HEX SCREW - 1000085382×1
  • 151000015437Not stocked
    lock washer×11
  • 161000015431Not stocked
    washer×16
  • 171000094966Price
    washer M6,4-DIN134 - 1000094966×1
  • 181000339688Not stocked
    cooler screen×1
  • 191000015408Price
    nut M10-8 A2C-DIN985 - 1000015408×4
  • 201000020261Price
    EW22LOMD - 1000020261×1
  • 211000015346Not stocked
    hex screw×4
  • 221000098196Price
    seal strap foam 10x15 - 1000098196×2.5
  • 231000015345Price
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×4
  • 241000339372Not stocked
    fixing plate×1
  • 251000190121Price
    TANK COOLANT OVERFLOW - 1000190121×1
  • 261000085390Price
    6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×8
  • 271000339341Not stocked
    bracket regulation container×1
  • 281000129364Price
    clamp bar - 1000129364×1
  • 291000267809Price
    clamp hose 15.3 - 1000267809×2
  • 301000411932Not stocked
    fuel line×0.4
  • 311000098196Price
    seal strap foam 10x15 - 1000098196×2.5
  • 321000151200Price
    pipe clamp RSGU 1.13/20 - 1000151200×1
  • 331000083002Price
    GE22LR1EDOMDA3C - 1000083002×2
  • 341000022438Not stocked
    screw joint×1
  • 341000180686Price
    sleeve - 1000180686×1
  • 351000339375Not stocked
    fastening plate×1
  • 361000017845Not stocked
    rubber profile×2
  • 371000015416Price
    DIN985-M8-8-A2C - 1000015416×2
  • 381000085379Price
    hex screw - 1000085379×4
  • 391000082608Not stocked
    lock washer×4
  • 401000094967Price
    Washer M5,3-DIN134 - 1000094967×6
  • 411000085581Price
    HEXAGON NUT - 1000085581×2
  • 421000015436Not stocked
    lock washer×1
  • 431000355430Not stocked
    top cover×1
