EZ53

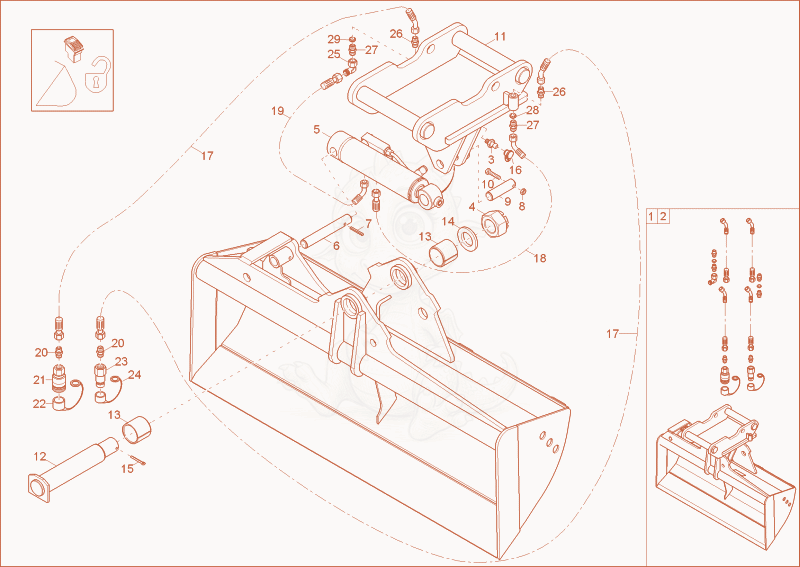

EZ53 SWIVEL BUCKET QHS HYDRAULICALLY Diagram
- 11000176138Not stockedTilting bucket 1200mm HS06 18×1
- 21000176137Not stockedTilting bucket 1400 mm×1
- 31000015475Not stockedgrease nipple×1
- 41000015419Not stockedcrown nut×1
- Swivelbucketcylinder 1000233806×1
- PIN - 1000170932×1
- cotter pin - 1000151221×1
- DIN985-M8-8-A2C - 1000015416×1
- PIN - 1000073264×1
- 101000022334Not stockedhex screw×1
- Consoleswivelbucket 1000176098×1
- Pin 1000073262×1
- 131000020875Not stockedsteel bushing×2
- swivel bucket spacer - 1000072833×1
- cotterpin - 1000085662×1
- 161000015480Not stockedcap grease nipple×1
- 171000076870Not stockedHose×2
- SLHYDR 2SC 8,0PN10 45 PN10 0 L950,0 0 - 1000187440×1
- SLHYDR 2SC 8,0PN10 45 PN10 0 L1100 0 - 1000264113×1
- 201000015493Not stockedscrew joint×2
- 211000109378Not stockedquick lock coupling×1
- Protection cap - 1000109417×1
- 231000109377Not stockedquick lock coupling×1
- Protection cap - 1000109416×1
- 251000015510Not stockedscrew joint×1
- GE12LREDOMDA3C - 1000015492×2
- 271000015491Not stockedscrew joint×2
- THROTTLE - 1000080119×1
- 291000067429Not stockedthrottle×1
