ET18-2

ET18-2 DIPPER ARM CYLINDER Diagram

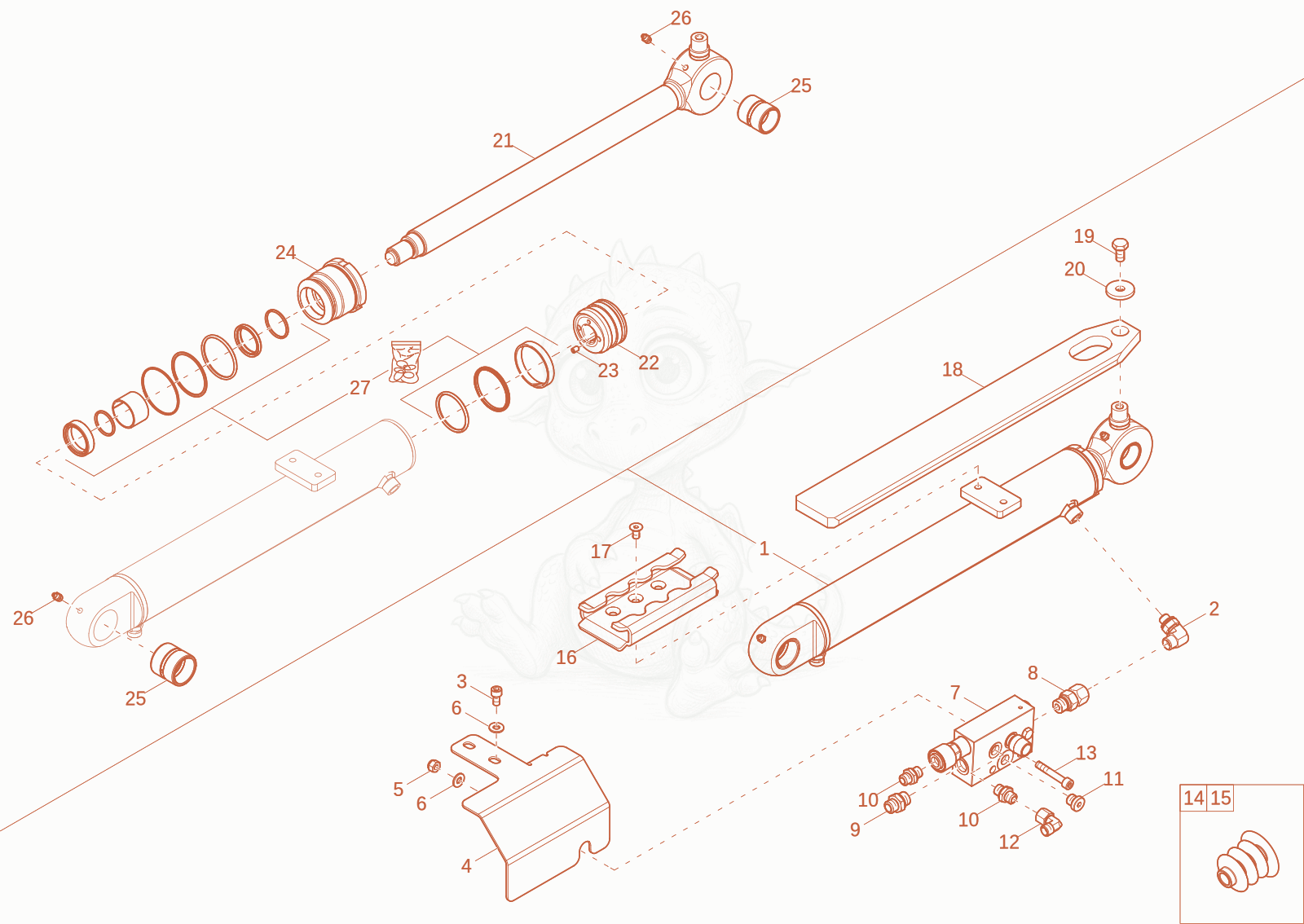

Exploded parts diagram of the DIPPER ARM CYLINDER of a Wacker Neuson ET18-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000554278Not stocked
    dipper arm cylinder×1
  • 21000060905Price
    WEE10LROMDA3C - 1000060905×1
  • 31000085495Price
    cheese head screw M 8x16-8.8 A2C - 1000085495×2
  • 41000566761Not stocked
    protection plate×1
  • 51000357534Not stocked
    hexagon nut×1
  • 61000015448Not stocked
    washer×3
  • 71000569334Not stocked
    hose burst valve×1
  • 81000028676Not stocked
    screw joint×1
  • 91000015491Not stocked
    screw joint×1
  • 101000015488Not stocked
    screw joint×2
  • 111000022438Not stocked
    screw joint×1
  • 121000000542Price
    EW08LOMD - 1000000542×1
  • 131000048172Not stocked
    cheese head screw×1
  • 141000288011Price
    plug M8 - 1000288011×2
  • 151000068993Not stocked
    plug×1
  • 161000566760Not stocked
    guide rail×1
  • 171000085531Price
    countersunk screw - 1000085531×2
  • 181000509918Not stocked
    protecting rail×1
  • 191000085411Price
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×1
  • 201000368878Not stocked
    lock washer×1
  • 211000571575Not stocked
    piston rod×1
  • 221000403795Price
    Piston - 1000403795×1
  • 231000015384Not stocked
    thread pin×1
  • 241000403796Not stocked
    guide bushing×1
  • 251000403797Not stocked
    slide bearing×2
  • 261000015476Not stocked
    grease nipple×2
  • 271000422151Not stocked
    seal kit×1
