ET18-2

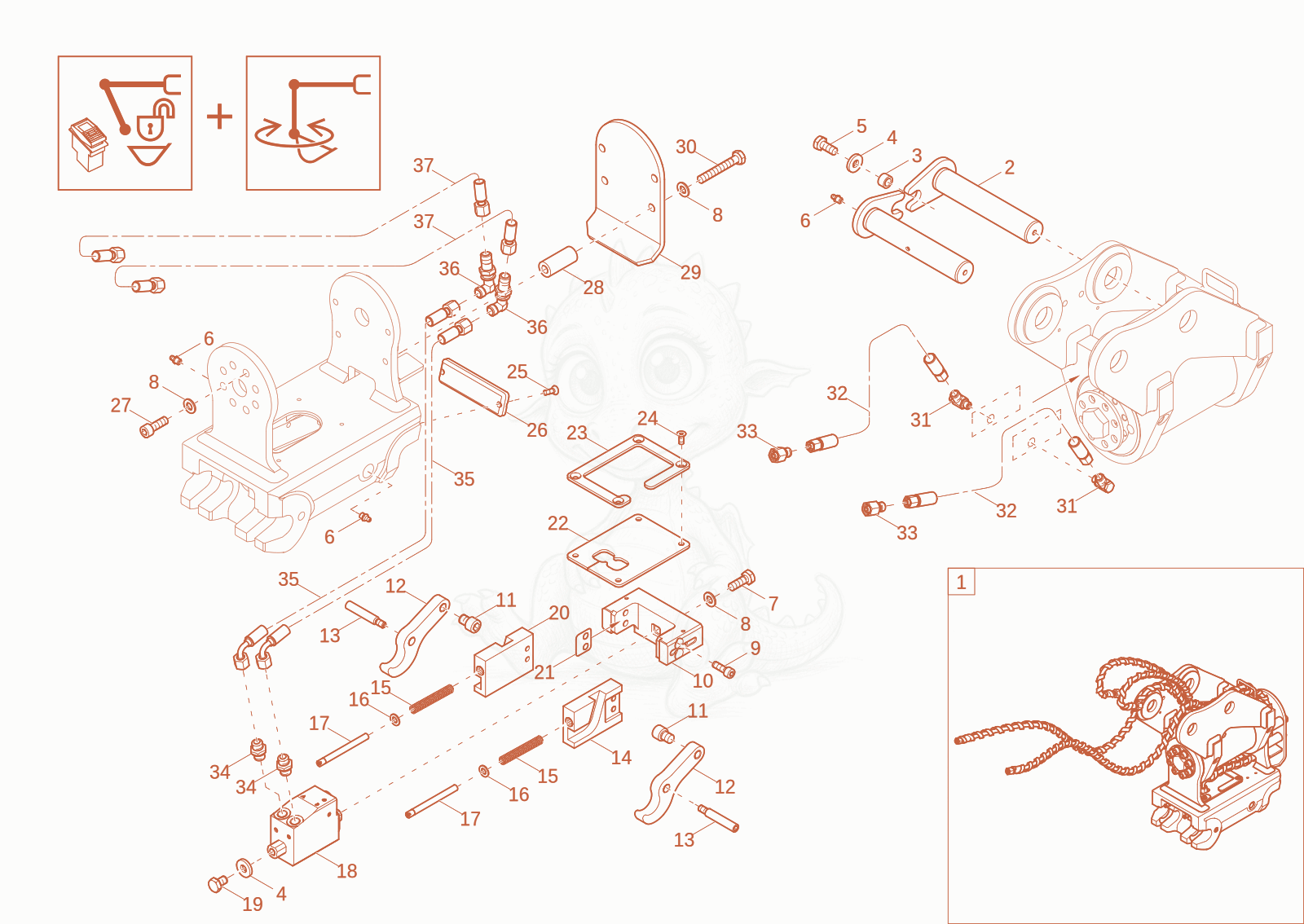

ET18-2 Easy Lock Powertlit (Option) Diagram
- 11000487418Not stockedPOWERTILT×1
- pin - 1000452408×2
- sleeve - 1000456812×2
- 41000015434Not stockedwasher×3
- 51000015371Not stockedhex screw×2
- 61000015476Not stockedgrease nipple×4
- 71000015348Not stockedhex screw×1
- washer 10,5 A2C DIN125 - 1000015432×13
- cheese head screw - 1000082480×4
- 101000441602Not stockedsnaper×1
- 111000449288Not stockedscrew×2
- HOOK - 1000441589×2
- pin - 1000453663×2
- insert - 1000441603×1
- 151000446743Not stockedpressure spring×2
- 161000015431Not stockedwasher×2
- rod - 1000455697×2
- cylinder - 1000447454×1
- 191000013009Not stockedhex screw×1
- insert - 1000441604×1
- washer - 1000501575×2
- 221000481377Not stockedrubber cover plate×1
- 231000469058Not stockedclamping strap×1
- screw - 1000469411×4
- screw - 1000469412×2
- 261000452407Not stockedprotection plate×1
- cheese head screw - 1000249995×8
- 281000500562Not stockedsleeve×4
- 291000481983Not stockedprotection plate×1
- 6-Point screw M10x70-8.8 A2C-DIN933 - 1000085416×4
- 311000488956Not stockedscrew joint×2
- 321000494584Not stockedHose×2
- RED08/06LOMDA3C - 1000085109×2
- 341000015488Not stockedscrew joint×2
- 351000481910Not stockedHose×2
- WSV08LOMDA3C - 1000085047×2
- 371000494560Not stockedHose×2
