ET18-2

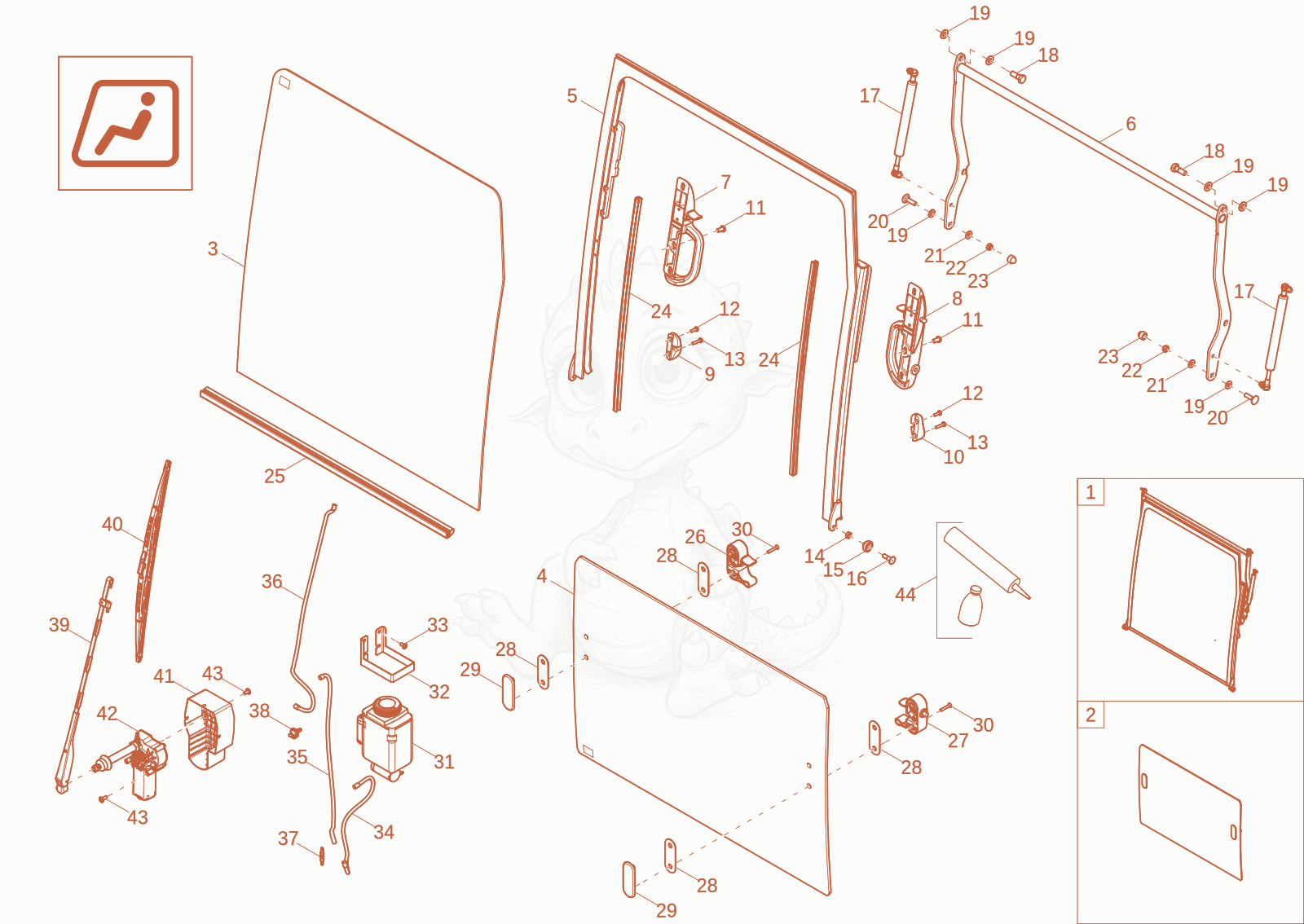

ET18-2 front window (OPTION) Diagram
- 11000511976Not stockedfront window×1
- 21000550795Not stockedfront window×1
- 31000463101Not stockedfront window×1
- 41000367426Not stockedfront window×1
- frame - 1000463339×1
- PLATE - 1000463345×1
- locking - 1000171741×1
- locking - 1000171742×1
- 91000003866Not stockedcatch-rests×1
- 101000003867Not stockedcatch-rests×1
- 111000550820Not stockedscrew×6
- ovalhead screw - 1000124798×2
- 131000015395Not stockedovalhead screw×2
- 141000015379Not stockedhexagon nut×2
- roller-PVC - 1000003350×2
- 161000375434Not stockedbearing pin×2
- 171000375455Not stockedgas strut×2
- hex screw - 1000143258×2
- Washer (Polyamid) - 1000093520×6
- flat head screw - 1000048573×2
- 211000015448Not stockedwasher×2
- DIN985-M8-8-A2C - 1000015416×2
- 231000004276Not stockedcover cap×2
- slide window seal - 1000097236×1.2
- 251000547879Not stockedsealing profile×1
- 261000548460Not stockedhandle×1
- 271000548459Not stockedhandle×1
- rubber disc - 1000241714×4
- 291000548462Not stockedplate×2
- countersunk screw - 1000241718×4
- 311000547772Not stockedcontainer×1
- 321000568321Not stockedbracket×1
- SCREW - 1000313423×2
- water hose - 1000116965×0.4
- water hose - 1000116965×0.5
- water hose - 1000116965×0.2
- 371000068914Not stockednon return valve×1
- 381000403528Not stockedbushing tube×1
- 391000403554Not stockedwiper arm×1
- WIPER BLADE - 1000403553×1
- COVER - 1000464230×1
- 421000403552Not stockedwiper motor×1
- screw M6x12 ISO7380-2 - 1000165459×2
- 441000001353Not stockedglue kt×1
