DW90 Dumper

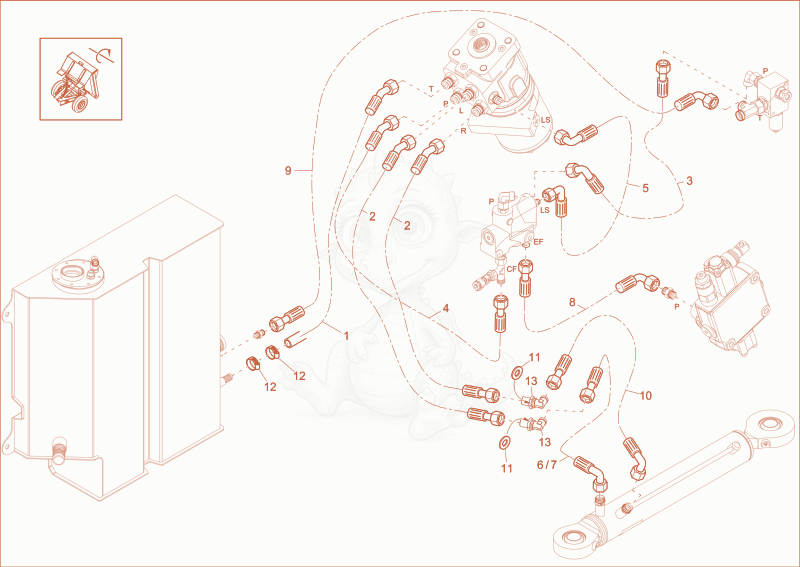

DW90 INSTALLATION STEERING Diagram

Exploded parts diagram of the INSTALLATION STEERING of a Wacker Neuson DW90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000331422Not stocked
    Hose×1
  • 21000331451Not stocked
    Hose×2
  • 31000331376Not stocked
    Hose×1
  • 41000331418Not stocked
    Hose×1
  • 51000331453Not stocked
    Hose×1
  • 61000331438Not stocked
    Hose×1
  • 71000349176Not stocked
    Hose×1
  • 81000331377Not stocked
    Hose×1
  • 91000330566Not stocked
    Hose×1
  • 101000331439Not stocked
    Hose×1
  • 111000151414Price
    WASHER - 1000151414×2
  • 121000019590Not stocked
    hose clamp×2
  • 131000028331Not stocked
    screw joint×2
