DW90 Dumper

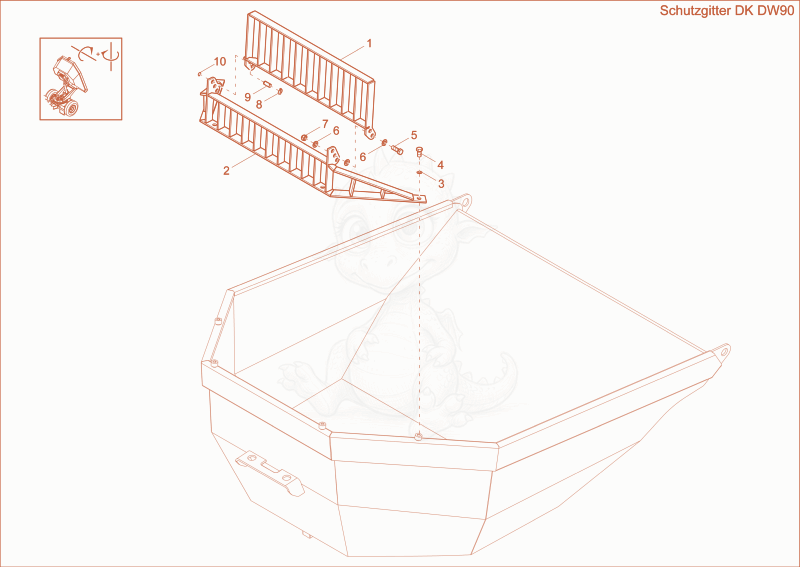

DW90 protecting screen (Option) Diagram

Exploded parts diagram of the protecting screen (Option) of a Wacker Neuson DW90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000426981Price
    Frontguard - 1000426981×1
  • 201000426982Price
    Frontguard - 1000426982×1
  • 301000094973Price
    NORTHLOCK DISC - 1000094973×4
  • 401000085431Price
    HEX SCREW - 1000085431×4
  • 501000047872Not stocked
    hex screw×2
  • 601000015440Not stocked
    u-washer×6
  • 701000018412Not stocked
    hexagon nut×2
  • 801000050585Not stocked
    cotter pin×2
  • 901000247954Price
    pin DM=20x47 - 1000247954×2
  • 1001000095358Price
    lock ring 20x1,2 - 1000095358×2
