DW90 Dumper

DW90 VALVE Diagram

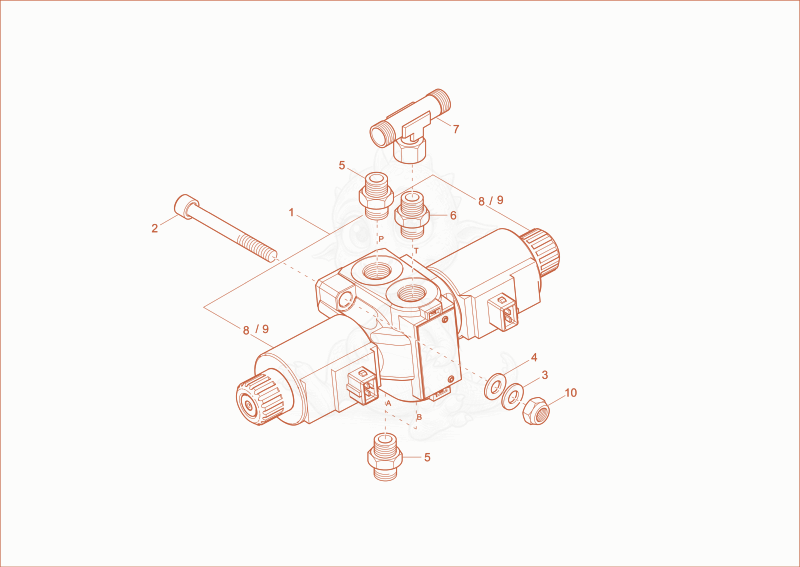

Exploded parts diagram of the VALVE of a Wacker Neuson DW90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000377411Not stocked
    directional valve×1
  • 21000085460Price
    cheese head screw - 1000085460×2
  • 31000015436Not stocked
    lock washer×2
  • 41000015430Not stocked
    u-washer×2
  • 51000015489Not stocked
    screw joint×3
  • 61000015492Price
    GE12LREDOMDA3C - 1000015492×1
  • 71000015519Price
    ET12LOMDA3C - 1000015519×1
  • 81000375937Not stocked
    magnet spool×2
  • 91000377350Not stocked
    magnet spool×2
  • 101000085588Price
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
