DW90 Dumper

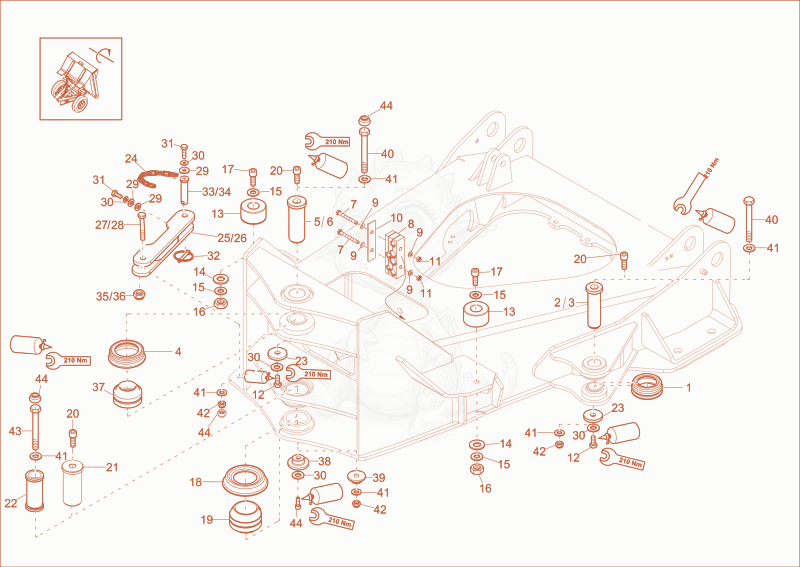

DW90 front part frame Diagram
- bearing - 1000351711×1
- 21000328567Not stockedsteering ram pin×1
- Steering Cylinder Pin D18-01 - 1000350320×1
- seal - 1000351809×1
- 51000328566Not stockedpin×1
- PIN - 1000350317×2
- 71000022334Not stockedhex screw×2
- 81000343844Not stockedhose clamp×1
- 91000015431Not stockedwasher×2
- 101000344053Not stockedadapter plate×1
- DIN985-M8-8-A2C - 1000015416×2
- 121000015404Not stockedhex screw×1
- bucket support - 1000114225×2
- WASHER - 1000021001×2
- 151000015439Not stockedlock washer×4
- HEXAGON NUT - 1000085583×2
- 171000309088Not stockedcheese head screw×2
- seal - 1000350993×1
- Pivotingbearing 1000224984×1
- 201000015363Not stockedcheese head screw×3
- 211000328565Not stockedpin×1
- PIN - 1000350318×1
- washer - 1000335146×2
- CHAIN - 1000097224×0.15
- Bucklesupport 1000104145×1
- 261000341800Not stockedbuckle support×1
- HEX SCREW - 1000130667×1
- hex screw - 1000141354×1
- washer A 6,4 St A2C DIN9021 - 1000095343×3
- 301000015451Not stockednorthlock disc×3
- 311000018400Not stockedhex screw×2
- 321000015457Not stockedcotter pin×1
- PIN - 1000166858×1
- pin - 1000341831×1
- 351000020788Not stockedhexagon nut×1
- 361000018412Not stockedhexagon nut×1
- Pivotingbearing 1000224321×1
- 381000335202Not stockedpin piece×1
- Pin End Piece - 1000350319×1
- HEX SCREW - 1000350322×2
- WASHER - 1000021001×6
- 421000350326Not stockedhexagon nut×3
- Hex screw M16x180-8.8 A2K-DIN931 - 1000350323×1
- CAP - 1000352777×3
- 451000335148Not stockedcheese head screw×2
