DW20

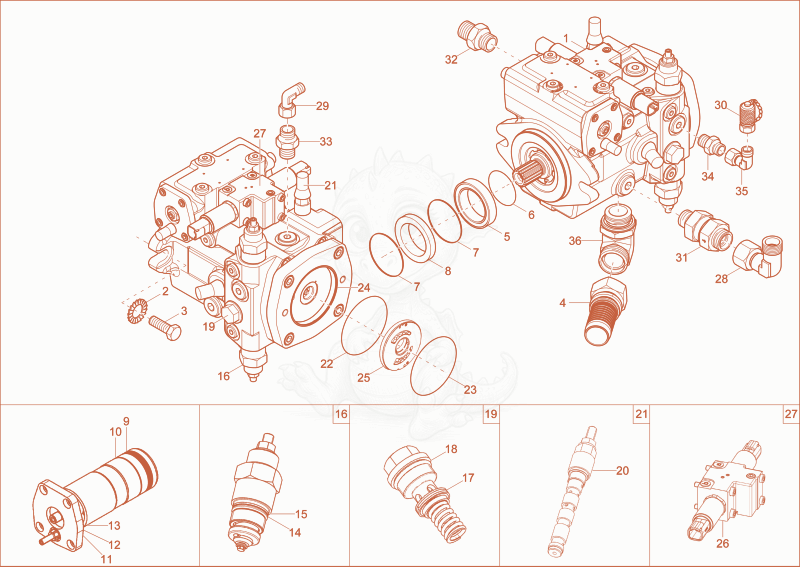

DW20 hydraulic pump Diagram
- 11000389456Not stockedpump×1
- Nord-Lock disc NL12x25,4 - 1000094970×2
- 31000015372Not stockedhex screw×2
- 41000398352Not stockedhose connection×1
- 51000423129Not stockedcylinder roller bearing×1
- 61000423115Not stockedlock ring×1
- lock ring - 1000087813×2
- shaft seal - 1000165634×1
- GUIDE RING - 1000226374×2
- 101000226373Not stockedslide ring×2
- O-ring - 1000423126×1
- 121000423127Not stockedlock ring×1
- O-RING - 1000087820×1
- O-Ring - 1000039216×1
- SUPPORT RING - 1000087822×1
- PRESSURE LIMIT RELIEFVALVE - 1000098634×1
- 171000423128Not stockedsteel seal×1
- O-ring - 1000089364×1
- pressure limit reliefvalve - 1000155106×1
- O-RING - 1000087823×1
- shut off valve - 1000124065×1
- HYDRAULIC PUMP SEAL - 1000225434×1
- O-RING - 1000127086×1
- 241000393854Not stockedo-ring×1
- 251000423131Not stockedpump housing×1
- seal - 1000247528×2
- 271000423132Not stockeddistributor×1
- 281000015513Not stockedscrew joint×1
- 291000015510Not stockedscrew joint×1
- 301000000575Not stockedminimess point×1
- 311000400154Not stockedscrew joint×1
- GE18LM22X1,5EDOMDA3C - 1000085104×1
- GE10LM18X1,5EDOMDA3C - 1000085112×1
- GE08LM18X1,5EDOMDA3C - 1000085046×1
- EW08LOMD - 1000000542×1
- WEE28LMOMD - 1000284899×1
