DW20

DW20 COOLING SYSTEM Diagram

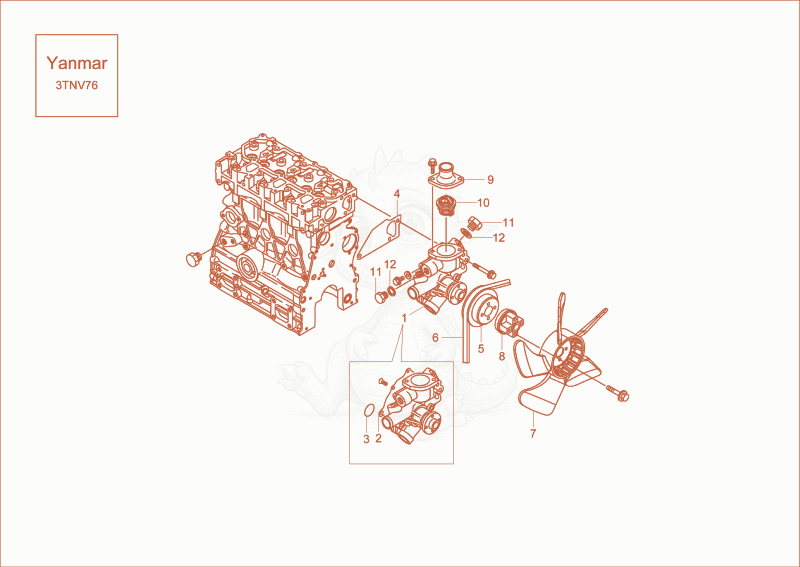

Exploded parts diagram of the COOLING SYSTEM of a Wacker Neuson DW20, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000425498Not stocked
    water pump×1
  • 21000148814Price
    ENGINE GASKET - 1000148814×1
  • 31000148815Price
    O-RING - 1000148815×1
  • 41000148818Price
    SEAL WATER PUMP - 1000148818×1
  • 51000425500Price
    pulley - 1000425500×1
  • 61000236367Price
    V-belt - 1000236367×1
  • 71000399581Not stocked
    blower×1
  • 81000149370Price
    FAN SPACER - 1000149370×1
  • 91000073611Price
    THERMOSTAT HOUSING - 1000073611×1
  • 101000264896Price
    thermostat - 1000264896×1
  • 111000063425Not stocked
    lock screw×2
  • 121000002929Not stocked
    seal ring×2
