DW20

DW20 CONSOLE (OPTION) Diagram

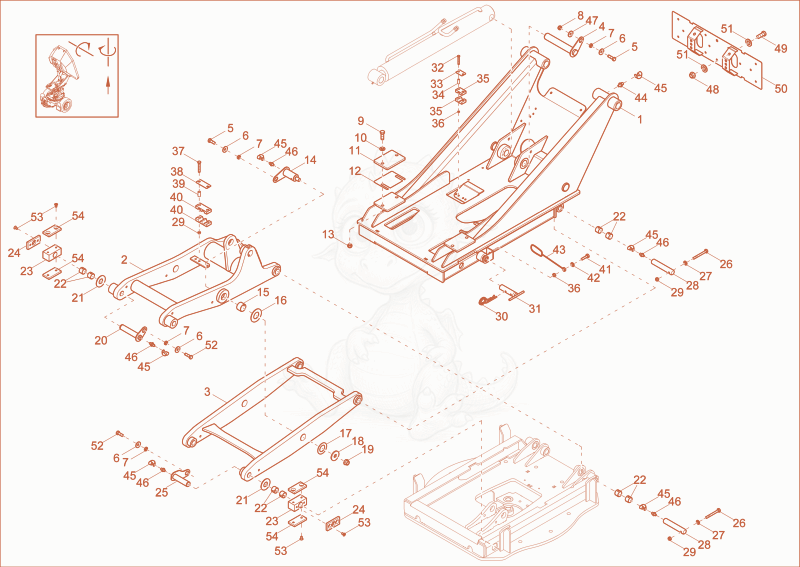

Exploded parts diagram of the CONSOLE (OPTION) of a Wacker Neuson DW20, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000420845Not stocked
    tilt console×1
  • 21000465974Not stocked
    Scissor Lift×1
  • 31000462869Not stocked
    Scissor Lift×1
  • 41000411528Price
    pin - 1000411528×1
  • 51000015346Not stocked
    hex screw×3
  • 61000092303Price
    Washer 10,5 St A2C - 1000092303×7
  • 71000151025Price
    washer 18/12x5 - 1000151025×7
  • 81000357535Not stocked
    hexagon nut×1
  • 91000085420Price
    hex screw - 1000085420×4
  • 101000049219Not stocked
    washer×4
  • 111000406742Not stocked
    bucket support×2
  • 121000406741Price
    plate - 1000406741×2
  • 131000357536Not stocked
    hexagon nut×4
  • 141000461999Price
    pin - 1000461999×2
  • 151000461987Price
    bushing - 1000461987×2
  • 161000408948Price
    plate - 1000408948×2
  • 171000409109Price
    plate - 1000409109×2
  • 181000409034Price
    washer - 1000409034×2
  • 191000409015Price
    nut - 1000409015×2
  • 201000452986Price
    pin - 1000452986×2
  • 211000407933Price
    plate - 1000407933×4
  • 221000015622Not stocked
    dx bushing×16
  • 231000451864Price
    console - 1000451864×4
  • 241000451863Not stocked
    slide piece×4
  • 251000452988Price
    pin - 1000452988×2
  • 261000085318Price
    6-Point screw M8x60-8.8 A2C-DIN931 - 1000085318×4
  • 271000015431Not stocked
    washer×4
  • 281000421996Price
    pin - 1000421996×4
  • 291000357534Not stocked
    hexagon nut×6
  • 301000424321Price
    plug - 1000424321×1
  • 311000449677Price
    pin - 1000449677×1
  • 321000085310Price
    hex screw - 1000085310×4
  • 331000398153Not stocked
    plate×2
  • 341000409975Not stocked
    sleeve×4
  • 351000398149Not stocked
    rubber piece×4
  • 361000357533Not stocked
    hexagon nut×5
  • 371000018447Not stocked
    hex screw×2
  • 381000399874Price
    plate - 1000399874×1
  • 391000409978Price
    sleeve - 1000409978×2
  • 401000399873Not stocked
    rubber piece×2
  • 411000018400Not stocked
    hex screw×1
  • 421000094966Price
    washer M6,4-DIN134 - 1000094966×1
  • 431000082230Price
    FIXING STRAP - 1000082230×1
  • 441000015476Not stocked
    grease nipple×2
  • 451000015480Not stocked
    cap grease nipple×12
  • 461000222726Price
    NIPPLE-GREASE - 1000222726×10
  • 471000015432Price
    washer 10,5 A2C DIN125 - 1000015432×1
  • 481000357534Not stocked
    hexagon nut×2
  • 491000015343Not stocked
    hex screw×2
  • 501000362087Not stocked
    bracket immatriculation plate×1
  • 511000015431Not stocked
    washer×4
  • 521000015364Not stocked
    hex screw×4
  • 531000085531Price
    countersunk screw - 1000085531×24
  • 541000451862Not stocked
    slide piece×8
