DW20

DW20 SWING BRACKET (OPTION) Diagram

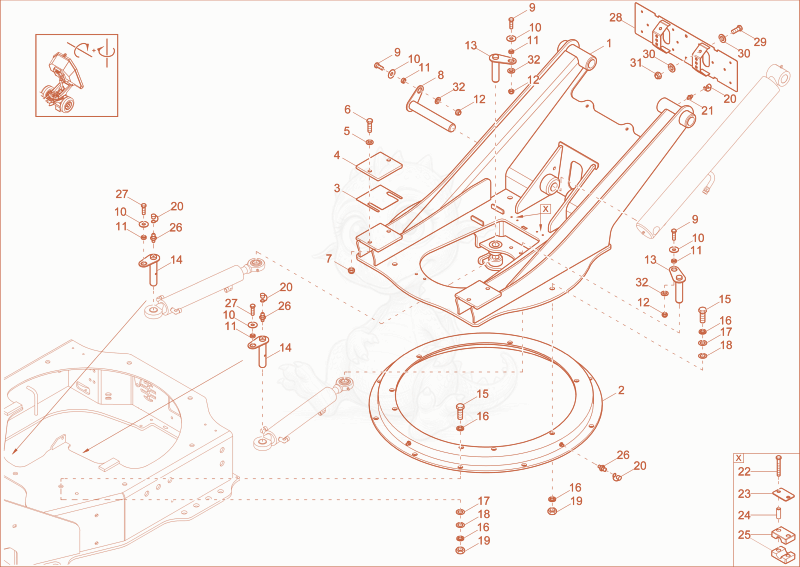

Exploded parts diagram of the SWING BRACKET (OPTION) of a Wacker Neuson DW20, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000420843Not stocked
    swivel console×1
  • 21000382147Not stocked
    slewing ring×1
  • 31000409753Price
    plate - 1000409753×2
  • 41000409751Not stocked
    bucket support×2
  • 51000049219Not stocked
    washer×4
  • 61000085420Price
    hex screw - 1000085420×4
  • 71000357536Not stocked
    hexagon nut×4
  • 81000411527Not stocked
    pin×1
  • 91000015346Not stocked
    hex screw×3
  • 101000092303Price
    Washer 10,5 St A2C - 1000092303×5
  • 111000151025Price
    washer 18/12x5 - 1000151025×5
  • 121000357535Not stocked
    hexagon nut×3
  • 131000409933Price
    pin - 1000409933×2
  • 141000409932Price
    pin - 1000409932×2
  • 151000085429Price
    HEX SCREW - 1000085429×17
  • 161000015451Not stocked
    northlock disc×34
  • 171000344205Price
    spacer - 1000344205×17
  • 181000344204Price
    spacer - 1000344204×17
  • 191000015423Not stocked
    hexagon nut×17
  • 201000015480Not stocked
    cap grease nipple×8
  • 211000015476Not stocked
    grease nipple×2
  • 221000015340Not stocked
    hex screw×4
  • 231000398153Not stocked
    plate×2
  • 241000409975Not stocked
    sleeve×4
  • 251000398149Not stocked
    rubber piece×4
  • 261000015475Not stocked
    grease nipple×6
  • 271000085411Price
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
  • 281000362087Not stocked
    bracket immatriculation plate×1
  • 291000015343Not stocked
    hex screw×2
  • 301000015431Not stocked
    washer×4
  • 311000357534Not stocked
    hexagon nut×2
  • 321000015432Price
    washer 10,5 A2C DIN125 - 1000015432×3
