DT12

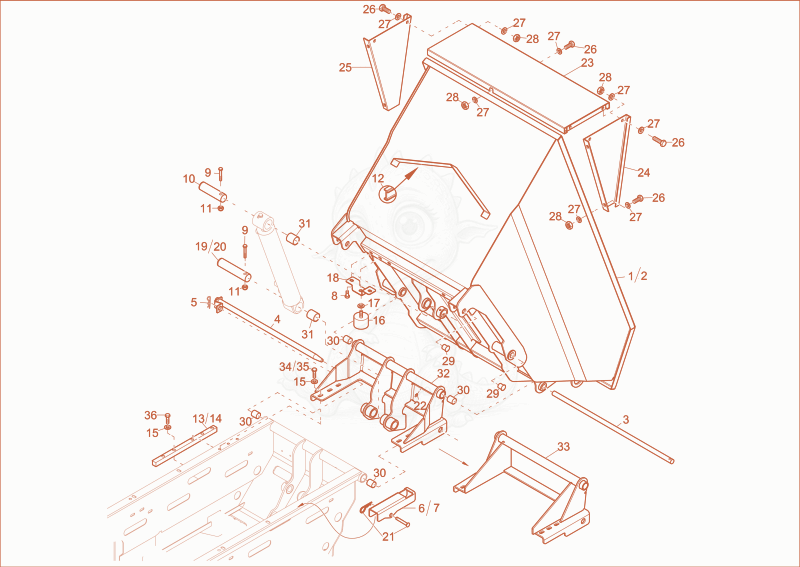

DT12 BUCKET 1 Diagram

Exploded parts diagram of the BUCKET 1 of a Wacker Neuson DT12, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000276607Price
    Skip 1000276607×1
  • 21000283158Price
    Bucketstandard 1000283158×1
  • 31000272630Price
    pivot pin - 1000272630×1
  • 41000272651Price
    Pin 1000272651×1
  • 51000272072Price
    COTTERPIN - 1000272072×1
  • 61000278256Not stocked
    LOCK×1
  • 71000321849Price
    BRACKET - 1000321849×1
  • 81000015343Not stocked
    hex screw×4
  • 91000085310Price
    hex screw - 1000085310×2
  • 101000270731Price
    PIN - 1000270731×1
  • 111000269276Price
    HEXAGON NUT - 1000269276×2
  • 121000272629Price
    SEAL - 1000272629×1
  • 131000278257Not stocked
    plate×2
  • 141000322582Not stocked
    guide rail×2
  • 151000270734Price
    Washer - 1000270734×8
  • 161000278258Price
    Damping - 1000278258×2
  • 171000278259Price
    Washer - 1000278259×2
  • 181000276628Price
    BRACKET - 1000276628×2
  • 191000275778Price
    PIN - 1000275778×1
  • 201000353278Price
    PIN - 1000353278×1
  • 211000278260Price
    PIN - 1000278260×2
  • 221000015476Not stocked
    grease nipple×1
  • 231000276612Price
    Bulkplate 1000276612×1
  • 241000276618Price
    Bulkplate 1000276618×1
  • 251000276616Price
    Bulkplate 1000276616×1
  • 261000085382Price
    HEX SCREW - 1000085382×9
  • 271000015430Not stocked
    u-washer×18
  • 281000269276Price
    HEXAGON NUT - 1000269276×9
  • 291000276658Not stocked
    shock absorber ring×8
  • 301000270024Price
    BUSHING - 1000270024×4
  • 311000270735Price
    bushing - 1000270735×2
  • 321000276609Not stocked
    chassis×1
  • 331000353279Price
    CHASSIS - 1000353279×1
  • 341000015343Not stocked
    hex screw×6
  • 351000085390Price
    6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×6
  • 361000085391Price
    hex screw - 1000085391×2
