DT12

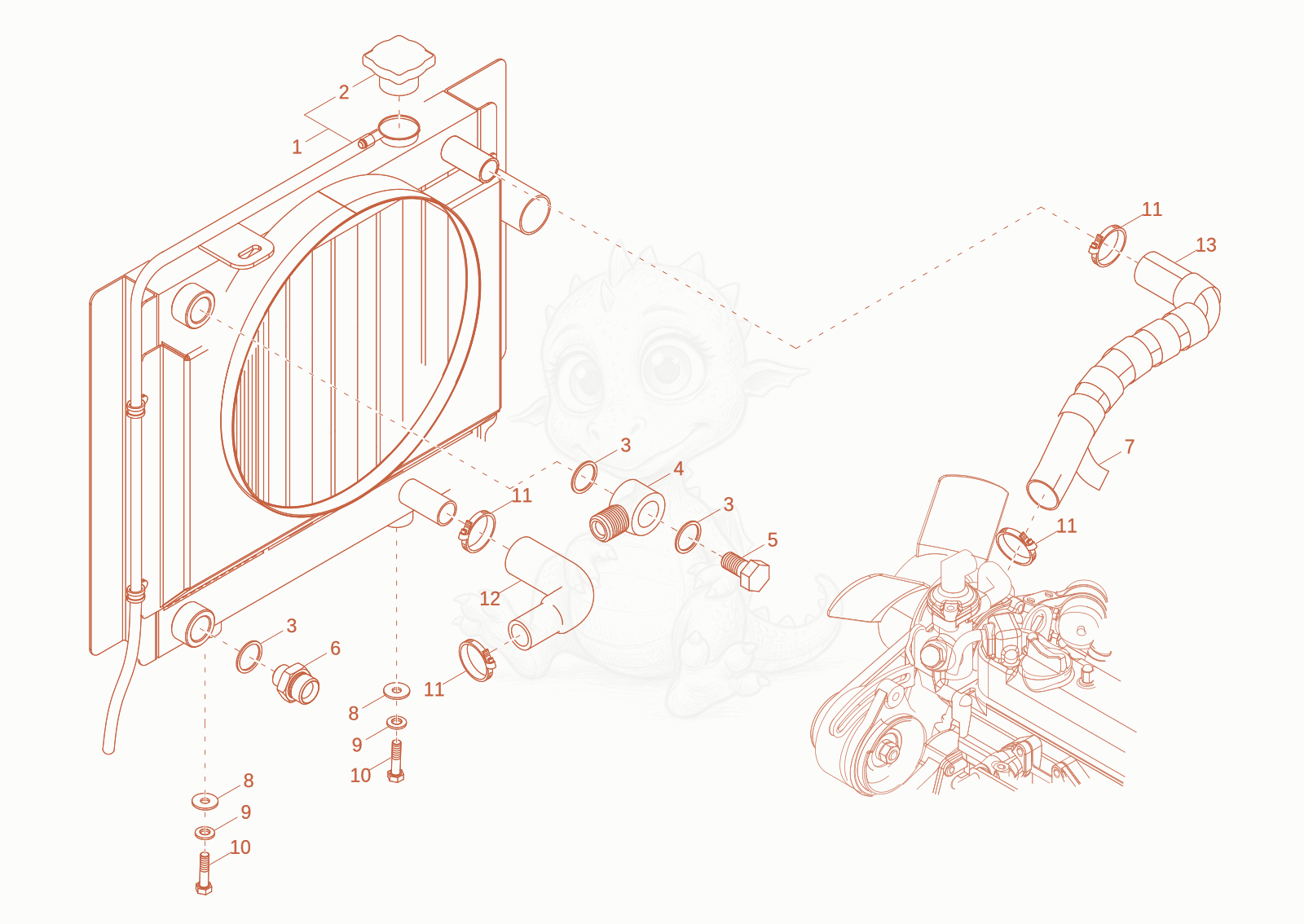

DT12 COOLER Diagram

Exploded parts diagram of the COOLER of a Wacker Neuson DT12, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000352577Not stocked
    combicooler×1
  • 21000001930Not stocked
    cooler cap×1
  • 31000282014Not stocked
    seal×3
  • 41000272624Price
    CONNECTION PIECE - 1000272624×1
  • 51000270657Price
    BANJO BOLT - 1000270657×1
  • 61000270695Price
    ADAPTER - 1000270695×1
  • 71000549564Not stocked
    protecting hose×1
  • 81000271815Price
    WASHER - 1000271815×2
  • 91000271022Price
    tension disc - 1000271022×2
  • 101000013008Not stocked
    hex screw×2
  • 111000273053Price
    pipe clamp - 1000273053×4
  • 121000273054Price
    sleeve - 1000273054×1
  • 131000275926Not stocked
    cooler water hose×1
