DT12

DT12 CYLINDER OPERATION 2 (Option) Diagram

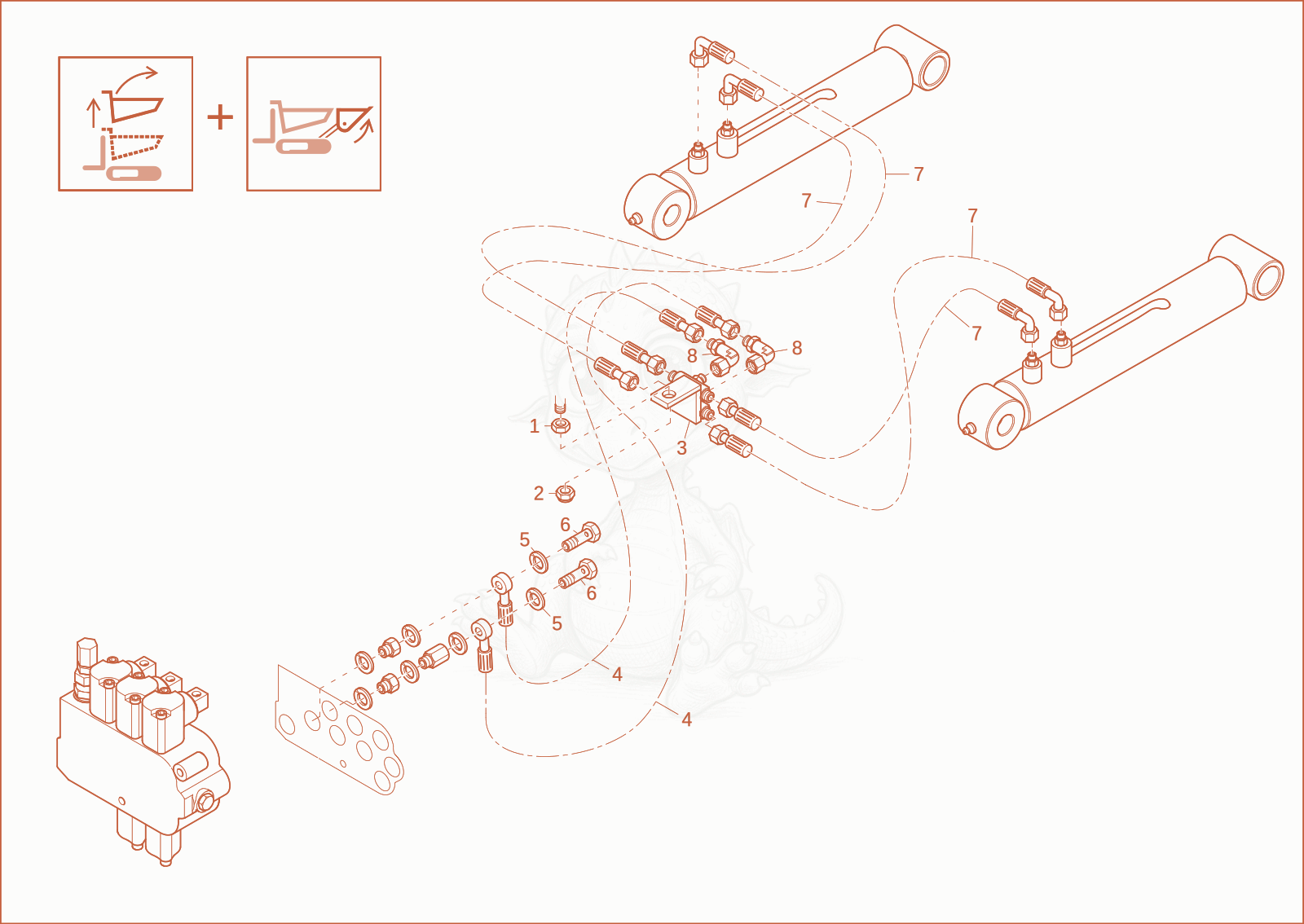

Exploded parts diagram of the CYLINDER OPERATION 2 (Option) of a Wacker Neuson DT12, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000013021Not stocked
    hexagon nut×1
  • 21000269279Price
    hexagon nut - 1000269279×1
  • 31000272672Price
    BRACKET - 1000272672×1
  • 41000283662Price
    SLHYDR 2SC 6,0RN1/40 DK1/40 L3200 S0 - 1000283662×2
  • 51000083485Price
    copper ring - 1000083485×6
  • 61000270650Price
    banjo bolt - 1000270650×2
  • 71000283661Price
    SLHYDR 2SC 6,0DK1/40 DK1/445 L850,0S0 - 1000283661×4
  • 81000270693Price
    Screw Joint - 1000270693×2
