DT12

DT12 HYDRAULIC PUMP DRIVE Diagram

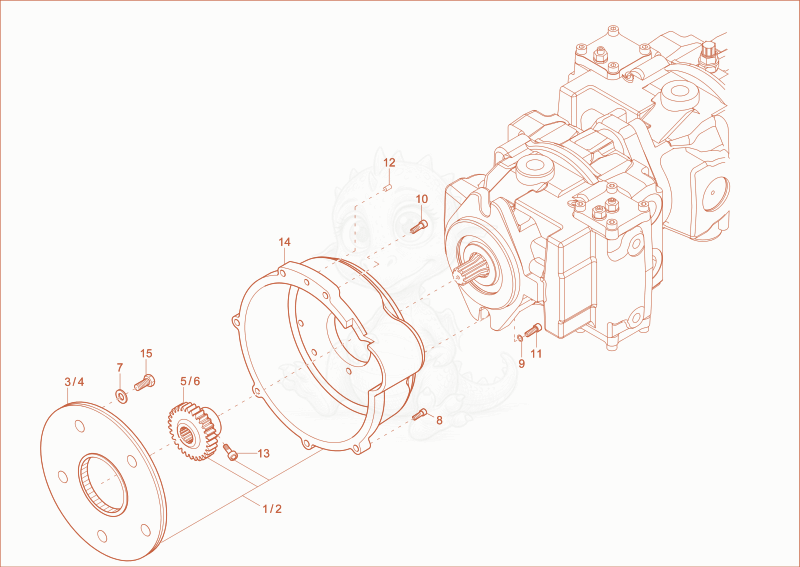

Exploded parts diagram of the HYDRAULIC PUMP DRIVE of a Wacker Neuson DT12, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000273111Not stocked
    coupling×1
  • 21000429263Price
    coupling - 1000429263×1
  • 31000275846Price
    PUMP FLANGE - 1000275846×1
  • 41000429264Not stocked
    pump flange×1
  • 51000272946Not stocked
    hub×1
  • 61000429265Not stocked
    hub×1
  • 71000271022Price
    tension disc - 1000271022×5
  • 81000013014Not stocked
    cheese head screw×4
  • 91000270734Price
    Washer - 1000270734×2
  • 101000048250Not stocked
    cheese head screw×1
  • 111000249995Price
    cheese head screw - 1000249995×2
  • 121000274711Price
    CYLINDER PIN 8 X 14 - 1000274711×1
  • 131000019593Not stocked
    cheese head screw×1
  • 141000275847Price
    Pumpcarrier 1000275847×1
  • 151000015343Not stocked
    hex screw×5
