Track dumper

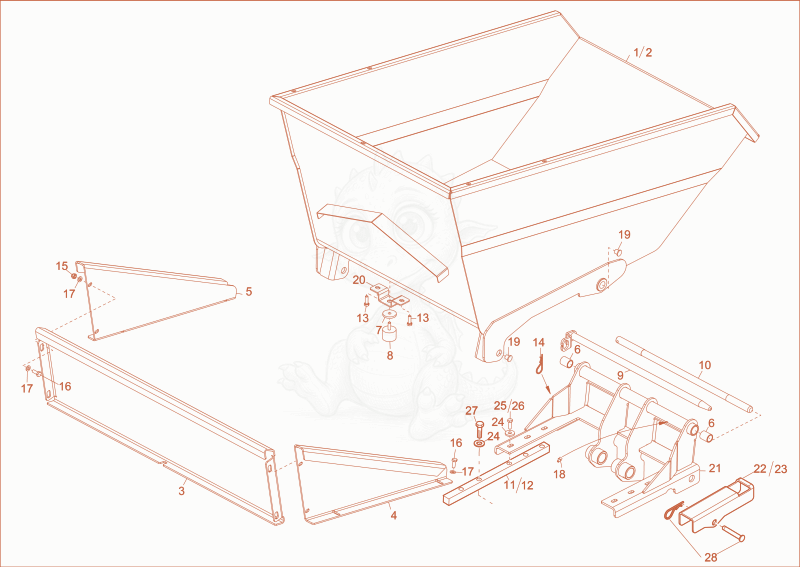

DT08PRO BUCKET 1 Diagram

Exploded parts diagram of the BUCKET 1 of a Wacker Neuson DT08PRO, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000279173Price
    Bucketstandard35014001Swn 1000279173×1
  • 21000283914Price
    Bucketstandard35014001Swn 1000283914×1
  • 31000276612Price
    Bulkplate 1000276612×1
  • 41000276618Price
    Bulkplate 1000276618×1
  • 51000276616Price
    Bulkplate 1000276616×1
  • 61000270024Price
    BUSHING - 1000270024×2
  • 71000278259Price
    Washer - 1000278259×2
  • 81000287104Price
    shock absorber - 1000287104×2
  • 91000272651Price
    Pin 1000272651×1
  • 101000272630Price
    pivot pin - 1000272630×1
  • 111000278257Not stocked
    plate×2
  • 121000322582Not stocked
    guide rail×2
  • 131000015343Not stocked
    hex screw×4
  • 141000272072Price
    COTTERPIN - 1000272072×1
  • 151000269276Price
    HEXAGON NUT - 1000269276×9
  • 161000085382Price
    HEX SCREW - 1000085382×9
  • 171000015430Not stocked
    washer×18
  • 181000015476Not stocked
    grease nipple×1
  • 191000272658Price
    PLUG - 1000272658×8
  • 201000276628Price
    BRACKET - 1000276628×2
  • 211000276609Not stocked
    chassis×1
  • 221000278256Not stocked
    LOCK×1
  • 231000321849Price
    BRACKET - 1000321849×1
  • 241000270734Price
    Washer - 1000270734×8
  • 251000015343Not stocked
    hex screw×6
  • 261000085390Price
    6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×6
  • 271000085391Price
    hex screw - 1000085391×2
  • 281000278260Price
    PIN - 1000278260×1
